Delock 87699 RCA audio switch bidirectional operation
EAN:
Part number:
Item no:
Datasheet (PDF)
Switch jack 3.5 mm 2 port manually bidirectional
Highlights & Details
- Audio input channels: 1
- 2-channel
- Black/Grey
Technical specifications
- Product type
RCA audio switch
- Supported monitors
2
- Switch function
Key
Manual
- Distributor/switch features
bidirectional operation
- Factory colour
Black
Grey
- Width
68 mm
- Height
29 mm
- Depth
112 mm
- Weight
156 g
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3380896 Delock 87699 RCA audio switch bidirectional operation
User & Safety Instructions
User & Safety Instructions 3380896 Delock 87699 RCA audio switch bidirectional operation
Description

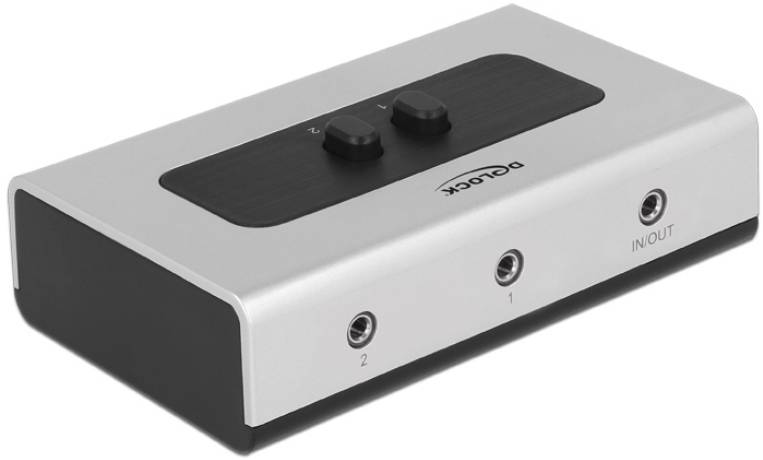

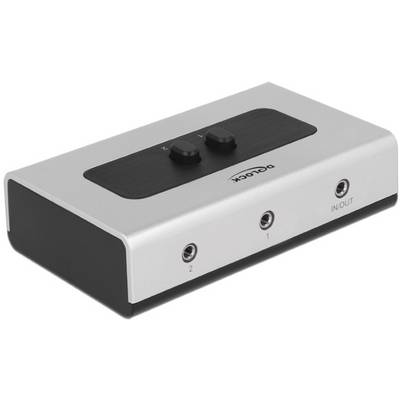

This Delock 3.5 mm jack switch is a manual bi-directional switch for connecting different audio devices, which offers two different possible applications.
1. Up to two devices with a jack connection, such as headphones, can be connected to one audio source. The device that should play the audio signal can be selected by pressing a button. (Simultaneous output to multiple devices is not possible)
2. Up to two devices with a jack connection, such as a PC, laptop or MP3 player, can be connected and a headphone can be connected to the output. You can select by pressing a button, from which device the audio signal is to be output on the headphones.
This text is machine translated.
1. Up to two devices with a jack connection, such as headphones, can be connected to one audio source. The device that should play the audio signal can be selected by pressing a button. (Simultaneous output to multiple devices is not possible)
2. Up to two devices with a jack connection, such as a PC, laptop or MP3 player, can be connected and a headphone can be connected to the output. You can select by pressing a button, from which device the audio signal is to be output on the headphones.
This text is machine translated.
Features
- Connections:
- Function 1
- Input 1 x 3.5 mm 3-pin jack socket
- Output 2 x 3.5 mm 3-pin jack socket
- Function 2
- Input 2 x 3.5 mm 3-pin jack socket
- Output 1 x 3.5 mm 3-pin jack socket
- 2 mechanical buttons
- Plastic housing
- Do not Require external current supply
- Dimensions (LxWxH): Approx. 112 x 68 x 29 mm (without buttons)
- Colour: Grey / black
System requirements
- A free audio port
