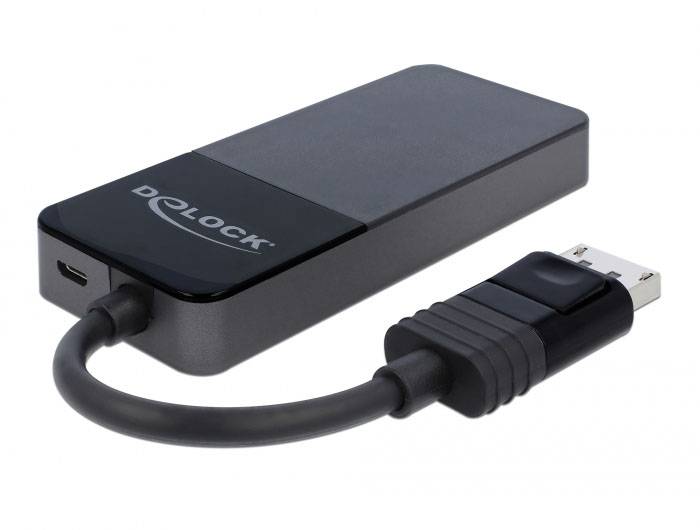

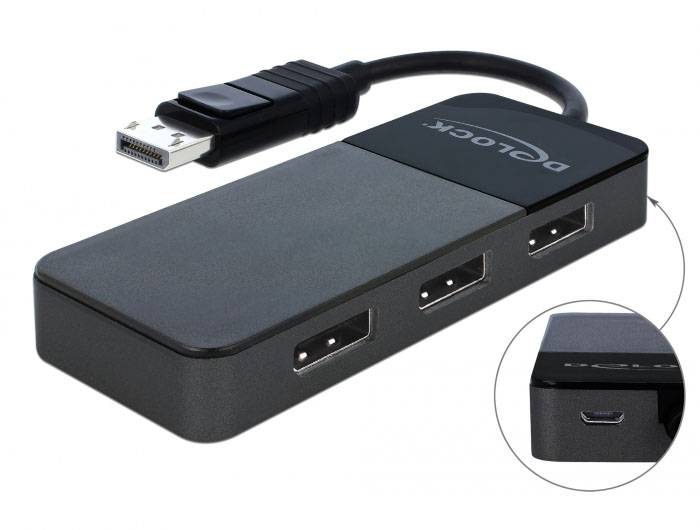

Delock 87737 DisplayPort splitter Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Delock 87737 video splitter DisplayPort 3x display port
Highlights & Details
- Video port type: DisplayPort video ports Quantity: 4 black
- 7680 x 4320 pixels
- Maximum frame rate 30 Hz
Technical specifications
- Product type
DisplayPort splitter
- Supported monitors
3
- No. of inputs
2 x
- No. of outputs
3 x

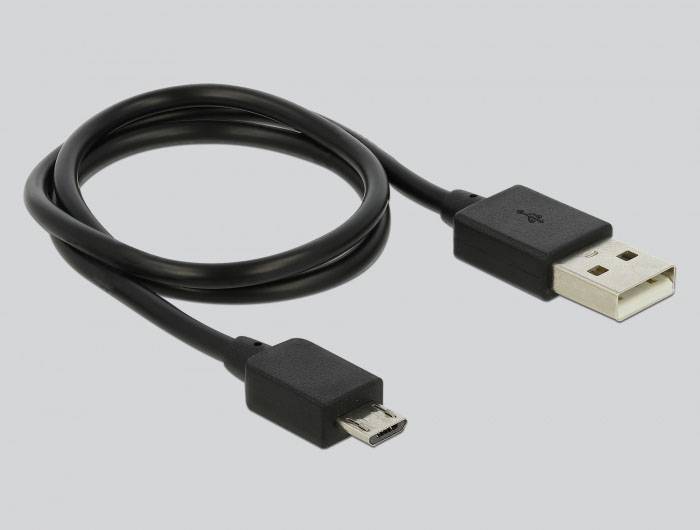

- Power supply (LOV)
via USB
- Factory colour
Black
- Weight
0.136 kg
- Width
43 mm
- Height
14 mm
- Depth
105 mm
- Dim
(W x H x D) 43 x 14 x 105 mm
- Cable design
Round
- Cable length
0.125 m
- Version
Cable
- Display resolution
7680 x 4320 Pixel
- Frame rate
30 Hz
- Cable use
PC
- Output voltage
5 V
- UKCA
yes
- USB powered
yes
- HDCP
yes
- Video ports quantity
4
Documents & Downloads
Datasheet
Datasheet 3381647 Delock 87737 DisplayPort splitter Black
User & Safety Instructions
User & Safety Instructions 3381647 Delock 87737 DisplayPort splitter Black
Description
Quick guide

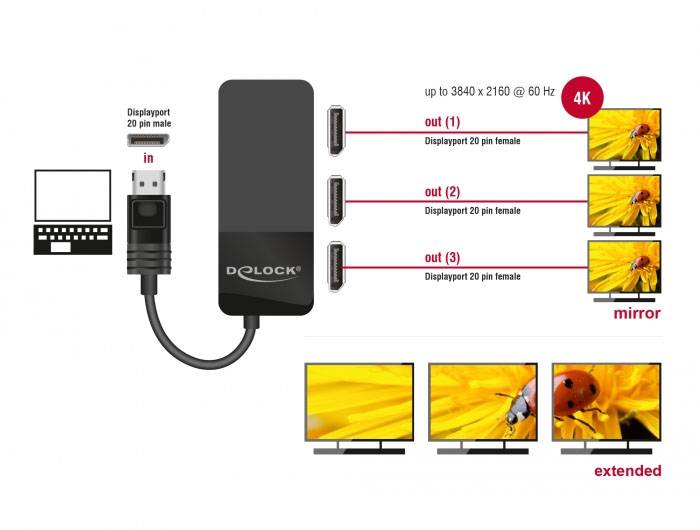

This splitter of Delock receives a display port signal from a PC or laptop and divides it up to three connected screens. This means that three DisplayPort monitors can be operated on one DisplayPort connector.
Multi-stream Transport (MST)
The product is an MST hub and supports the advanced desktop configuration of DisplayPort. This allows several monitors to be combined to one large display.
Dual mode DP++
The outputs are Dual mode compatible (DP++), so alternatively HDMI or DVI monitors with appropriate adapters can also be connected.
High resolution:
Due to the higher bandwidth of DisplayPort 1.4, a total of three monitors with 4K resolution (3840 x 2160) are supported.
This text is machine translated.
