Delock 87805 HDMI splitter Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

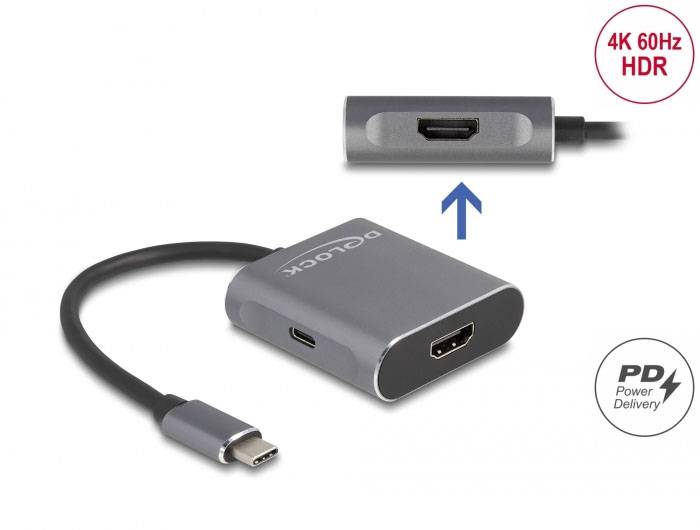

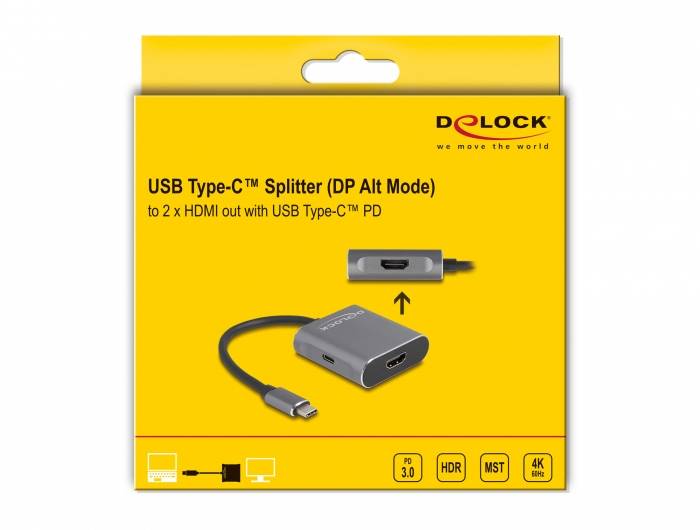

Delock USB Type-C splitter (DP Alt Mode) for 2 x HDMI MST with USB Type-C PD
- Video port type: HDMI video ports Number: 2 gray
- 3840 x 2160 pixels
- Maximum frame rate 60 Hz
- 100 W
- 1 pieces(s)
Technical specifications
- HD type 4K Ultra HD
- Product type
HDMI splitter
- No. of inputs
1 x
- Interfaces (input)
USB C®
- No. of outputs
2 x
- Interfaces (output)
HDMI™
- Power supply (LOV)
via USB
- Factory colour
Grey
- Weight
0
- Width
51 mm
- Height
16.5 mm
- Depth
51 mm
- Dim
(W x H x D) 51 x 16.5 x 51 mm
- Cable design
Round
- Cable length
0.15 m
- Version
Cable
- Display resolution
3840 x 2160 Pixel
- Frame rate
60 Hz
- Cable use
C13/C14 appliances
- Max. output current
5 A
- Output voltage
20 V
- UKCA
yes
- Quantity per pack
1 Stück(e)
- USB powered
yes
- Manual
yes
- Easy to install
yes
- Video ports quantity
2
- Power consumption (max)
100 W
Documents & Downloads
Datasheet
Datasheet 3384088 Delock 87805 HDMI splitter Grey
User & Safety Instructions
User & Safety Instructions 3384088 Delock 87805 HDMI splitter Grey
Description
This splitter from Delock is designed to connect two HDMI monitors to a computer with a USB-C™ interface and DisplayPort Alternate Mode support. Two monitors can be simultaneously operated at the outputs.
Multi-stream Transport (MST)
The product is a Multi-Stream Transport (MST) hub and supports the extended desktop configuration of DisplayPort. In Windows, the connected monitors are individually controlled and can be combined to form a large display.
USB Power delivery (USB PD 3.0) support up to 100 watt
Through the support of the USB Power delivery 3.0 standards connected devices can be supplied with power, up to 100 W (20 V / 5 A) are possible.
