Delock 87807 VGA Adapter [1x D-SUB socket 15-pin - 1x Soldering] Black, Orange
EAN:
Part number:
Item no:
Technical specifications
- Connection 1: D-Sub 15 pin
- Connection 2: 15 solderring pin
- Product type
TV/monitor Adapter
- Connection type
VGA
- No. of A connectors
1 x
- Type A
D-SUB socket 15-pin
- No. of B connections
1 x
- Type B
Soldering
- Factory colour
Black
Orange
- Cable use
TV/monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
- Cable design
Round
- Signal flow direction
Unidirectional (uni)
- Depth
49 mm
- Height
22 mm
- Width
80 mm
IP67
- Wireless charging
No
- UKCA
yes
- Operating temperature (T-T)
-45 - 105 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3384086 Delock 87807 VGA Adapter [1x D-SUB socket 15-pin - 1x Soldering] Black, Orange
Description

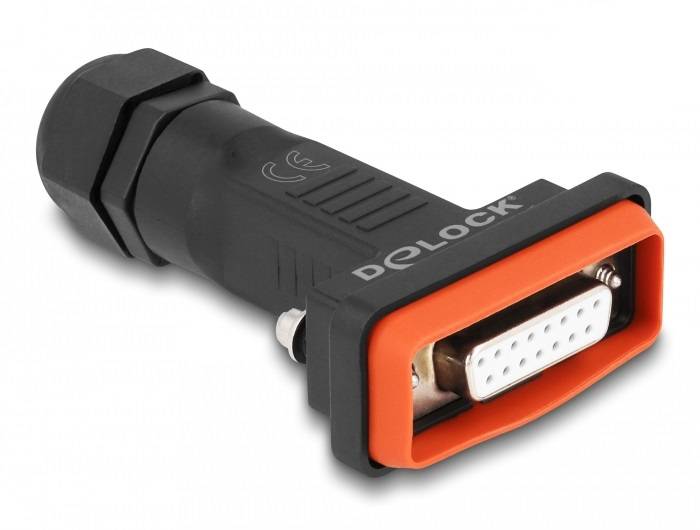

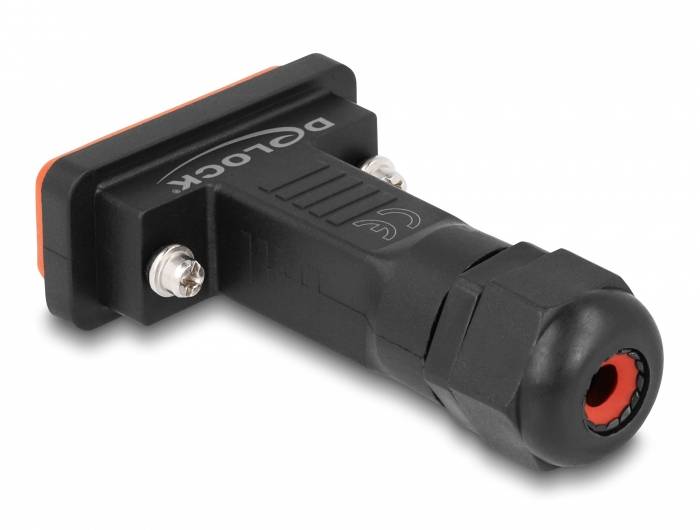

This D-Sub socket from Delock is suitable for soldering and is used for cable assembly. The waterproof housing with protection class IP67 protects the cable wires against moisture and is suitable Ideal for use in the switch cabinet.
Easy to set up

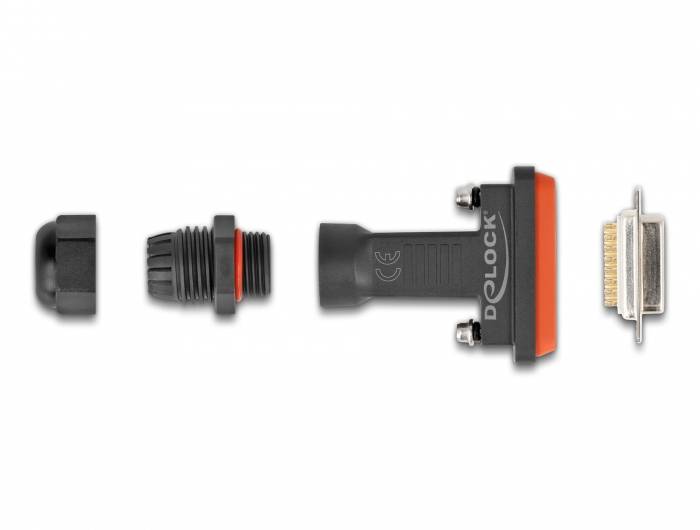

The cable wires are routed through the housing and connected to the solder contacts of the D-Sub connector. Then, mount the soldered wires together with the plug connector on the housing.
