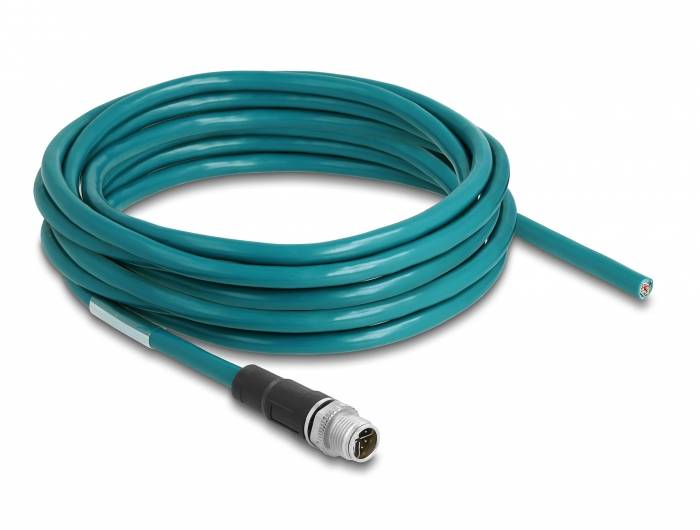

Delock 87854 M12 Patch cable SF/UTP 5.00 m Turquoise 1 pc(s)
EAN:
Part number:
Item no:
Product type
Patch cable
Shielding
SF/UTP
Connection type
M12
Cable length
5.00 m
No. of A connectors
1 x
Technical specifications
- Product type
Patch cable
SF/UTP
- Connection type
M12
- No. of A connectors
1 x
- Type A
M12 plug
- No. of B connections
1 x
- Type B
Open cable ends
- Cable length
5.00 m
- Factory colour
Turquoise
- Connector version
straight
- Cable use
Networks
- Version
Cable
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3379860 Delock 87854 M12 Patch cable SF/UTP 5.00 m Turquoise 1 pc(s)
Description
This Delock industrial Ethernet cable can be used to connect various components to M12 connectors, for example for machine control or automation.
With the open cable ends, the cable can be connected directly to a device or e.g. to a distributor box depending upon the purpose of use.
Resistant cable jacket made of TPU
The material of the cable jacket makes the cable flexible and robust, making it also possible to use it in drag chains and harsh environments.
The cable is oil and UV resistant and meets the high requirements for industrial applications.
This text is machine translated.
With the open cable ends, the cable can be connected directly to a device or e.g. to a distributor box depending upon the purpose of use.
Resistant cable jacket made of TPU
The material of the cable jacket makes the cable flexible and robust, making it also possible to use it in drag chains and harsh environments.
The cable is oil and UV resistant and meets the high requirements for industrial applications.
This text is machine translated.
Features
- Drag-chain compatible
- S/FTP
- Shielding: Aluminium foil, braided made of tin-plated copper
- Copper cables
- Wire cross-section 26 AWG
- Cable diameter: Approx. 6.4 mm
- Cable sheath material: PUR (TPU)
- Max. Number of bending cycles: 1,000,000
- Minimum bend radius:
- 32 mm for permanent installation
- 64 mm for flexible installation
- Oil resistant according to DIN EN 60811-2-1
- UV-resistant
- LS0H (halogen-free)
- Flammability class FT2
- Operating temperature: -20 °C ~ 80 °C
