Delock 87903 FO socket Grey 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
FO socket
- Material
ABS plastic
- Factory colour
Grey
- Width
270 mm
- Height
100 mm
- Depth
330 mm
- Cable design
Round
- Version
Cable
IP65
- Cable use
C13/C14 appliances
- UKCA
yes
- Suitable for outdoor use
yes
- Wall mountable
yes
- Suitable for indoor use
yes
- Number of fibres supported (max)
24
- Number of splice trays supported (max)
24
Documents & Downloads
Datasheet
Datasheet 3379353 Delock 87903 FO socket Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3379353 Delock 87903 FO socket Grey 1 pc(s)
Description

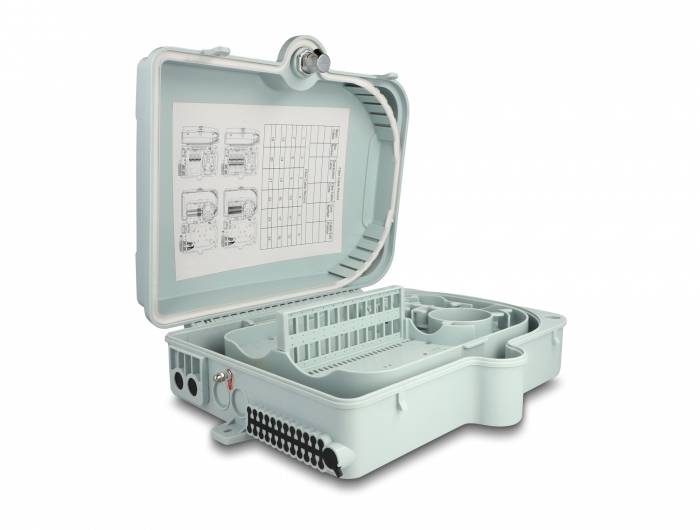

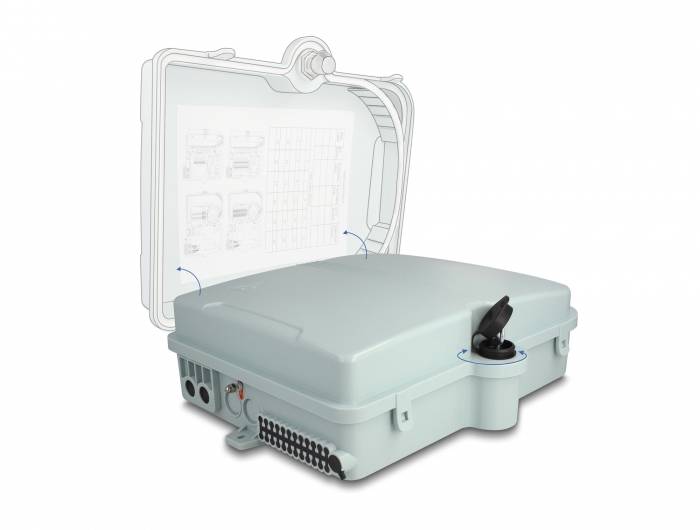

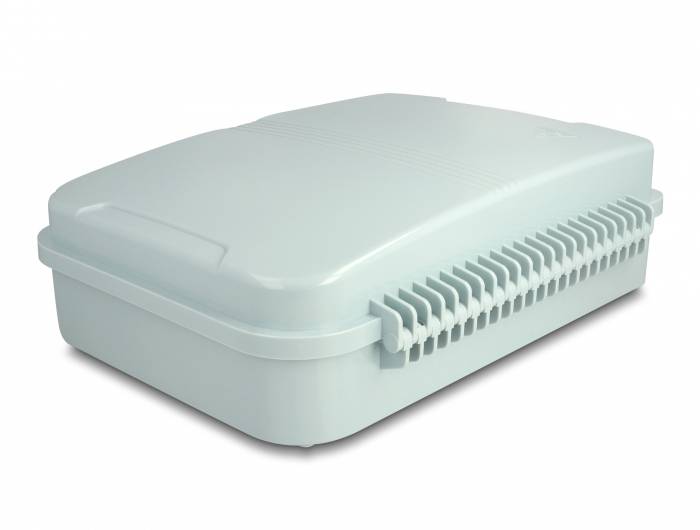

This lockable distribution box by Delock is suitable for wall mounting and serves as protection device for optical cables and couplings. The distribution box allows the recording of up to 24 SC Simplex or LC duplex couplings.
With splice box

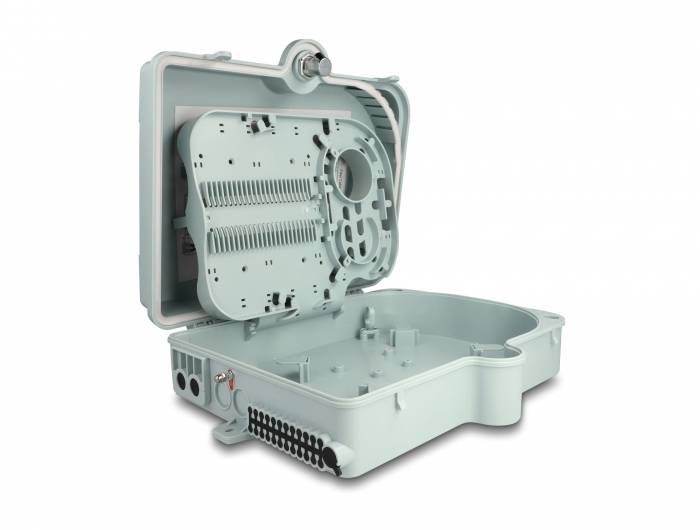

The integrated splice box allows clean wiring of the individual fibers for the optimal transmission of fiber-optic signals. In addition, the cassette is perfectly suited for mechanical splicing and fusion splicing.
IP65 dust and waterproof

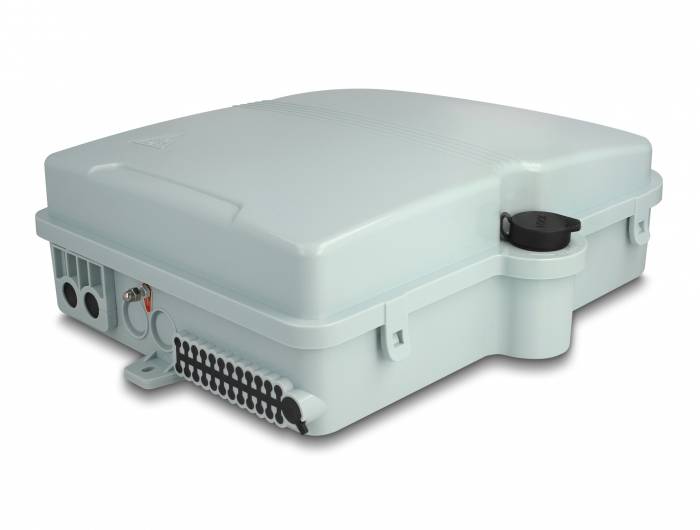

The distribution box has two cable inputs and 25 cable outputs, which are protected with a rubber seal. The seals allow a watertight seal to the housing for passing glass fiber cables indoors and outdoors. Furthermore, a screw connection can be used at the front side of the housing to conduct another cable.
This text is machine translated.
With splice box
The integrated splice box allows clean wiring of the individual fibers for the optimal transmission of fiber-optic signals. In addition, the cassette is perfectly suited for mechanical splicing and fusion splicing.
IP65 dust and waterproof
The distribution box has two cable inputs and 25 cable outputs, which are protected with a rubber seal. The seals allow a watertight seal to the housing for passing glass fiber cables indoors and outdoors. Furthermore, a screw connection can be used at the front side of the housing to conduct another cable.
This text is machine translated.
Features
- Glass-fiber distribution box for FTTH applications
- 24 slots for SC Simplex or LC duplex couplings
- Wall mounting
- Lockable
- With splice box
- Cable inputs and outputs
- For indoor and outdoor use.
- Protection system: IP65
- Ambient temperature: -40 °C - 75 °C
- Housing color: Grey
- ABS casing material
- Dim. (LxWxH): Approx. 330 x 270 x 100 mm
