Delock 87949 FO socket White 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
FO socket
- Material
ABS plastic
- Factory colour
White
- Width
127 mm
- Height
46 mm
- Depth
193 mm
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Weight
280 g
- UKCA
yes
- Wall mountable
yes
- Suitable for indoor use
yes
- Number of fibres supported (max)
8
- Number of splice trays supported (max)
8
Documents & Downloads
Datasheet
Datasheet 3380715 Delock 87949 FO socket White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3380715 Delock 87949 FO socket White 1 pc(s)
Description

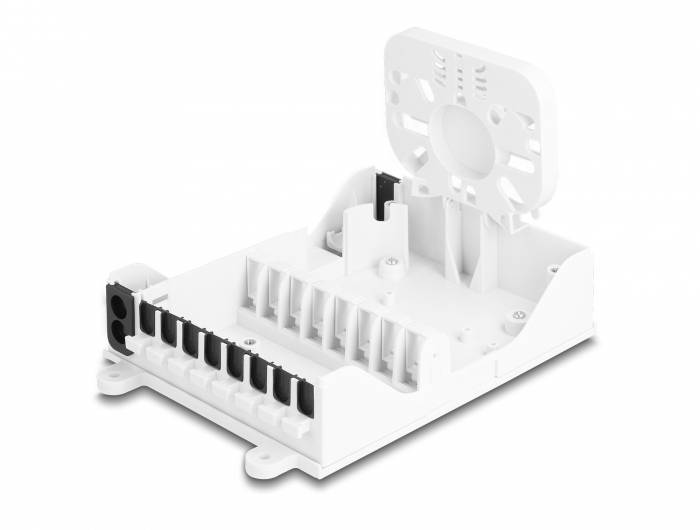

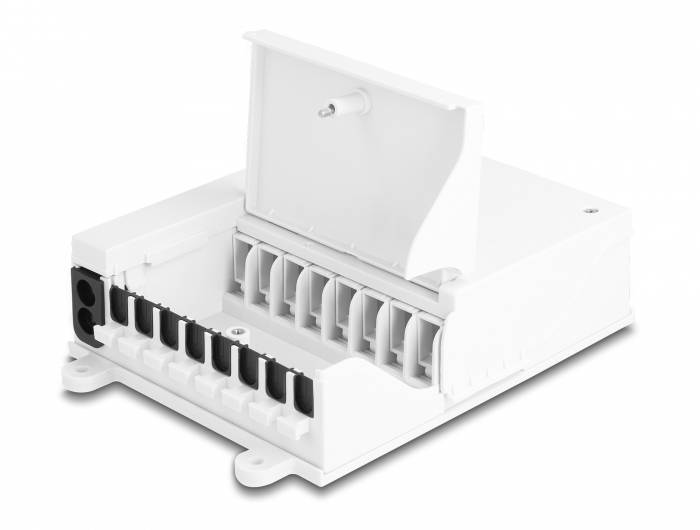

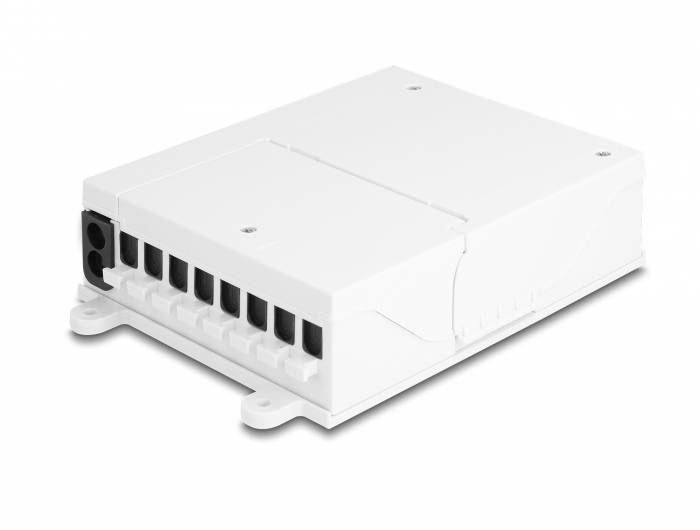

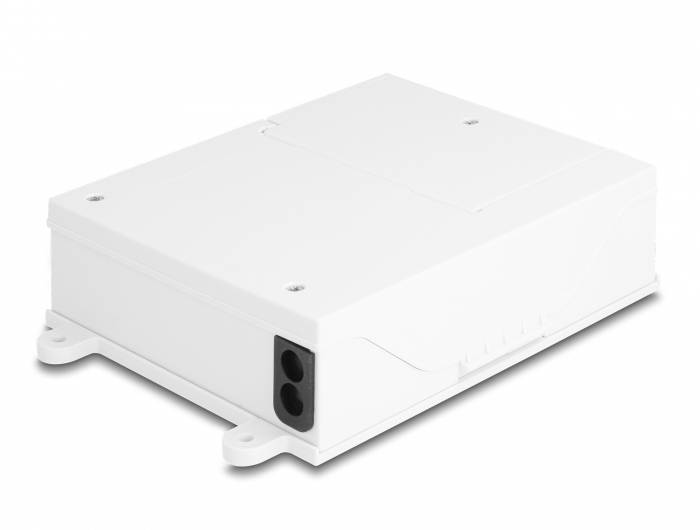

This distribution box by Delock is suitable for wall mounting in inner area and serves as protection device for optical cable and couplings. The distribution box allows the recording of up to eight SC Simplex or LC duplex couplings.
Separate splice area and cable connection

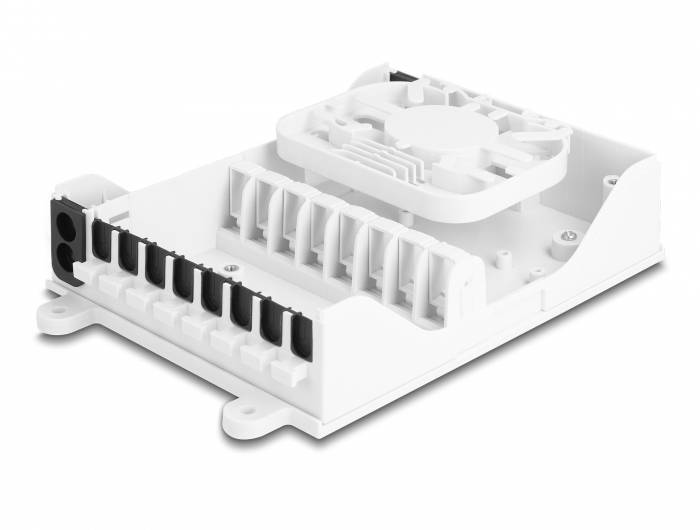

The integrated splice box allows clean wiring of the individual fibers for the optimal transmission of fiber-optic signals. The splice area and the cable connection on the distribution box are separated to avoid cross-overs.
Different usage possibilities
The distribution box is used in optical telecommunication networks, in LAN, CATV, FTTH-networks, as well as in PON and G-PON.
This text is machine translated.
Separate splice area and cable connection
The integrated splice box allows clean wiring of the individual fibers for the optimal transmission of fiber-optic signals. The splice area and the cable connection on the distribution box are separated to avoid cross-overs.
Different usage possibilities
The distribution box is used in optical telecommunication networks, in LAN, CATV, FTTH-networks, as well as in PON and G-PON.
This text is machine translated.
Features
- Glass-fiber distribution box for FTTH applications
- 8 slots for SC Simplex or LC duplex couplings
- Wall mounting
- Cover can be folded up by 90°
- With splice holder
- Cable entry with rubber seal
- Suitable for indoor use
- Ambient temperature: -40 °C to 70 °C
- Housing color: White
- ABS casing material
- Dim. (LxWxH): Approx. 193 x 127 x 46 mm
