Delock 88154 88154 Expansion module
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

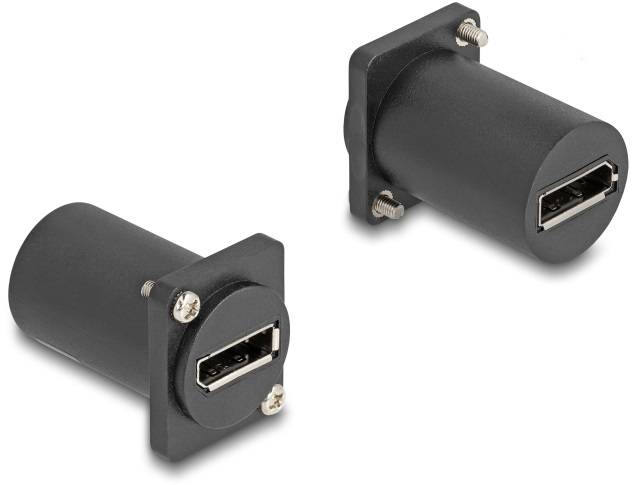

D-Type Module DisplayPort socket to 4K socket black
- DisplayPort Straight Female
- DisplayPort Straight Female
- Display port version 1.2 3840 x 20160 pixels
- Housing material: Polyvinyl chloride (PVC)
- Black
Technical specifications
- Connection1 Form factor: Straight
- Connection2 Form factor: Straight
- Maximum resolution 3840 x 20160 pixel
- Product type
Expansion module
- Interfaces
DisplayPort
- Cable design
Round
- Version
Cable
- Factory colour
Black
- Type A
DisplayPort socket
- Type B
DisplayPort socket
- Depth
37.5 mm
- Height
25.8 mm
- Width
31 mm
- Frame rate
144 Hz
- Cable use
C13/C14 appliances
- Connections
RJ45 connector
- Connection type
DisplayPort
- UKCA
yes
- HDCP
yes
Documents & Downloads
Datasheet
Datasheet 3383603 Delock 88154 88154 Expansion module
User & Safety Instructions
User & Safety Instructions 3383603 Delock 88154 88154 Expansion module
Description
This module of Delock is suitable for installation in a panel or housing with D-type recess and can be used for connecting display port devices.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x DisplayPort socket
- 1 x DisplayPort socket
- DisplayPort 1.2 specification
- Resolution up to 3840 x 2160 @ 144 Hz (depending on the system and the
- Connected hardware)
- HDCP and HDR support
- For installation in D-type ports of 24 x 19 mm
- Housing section (diameter): Approx. 24 mm

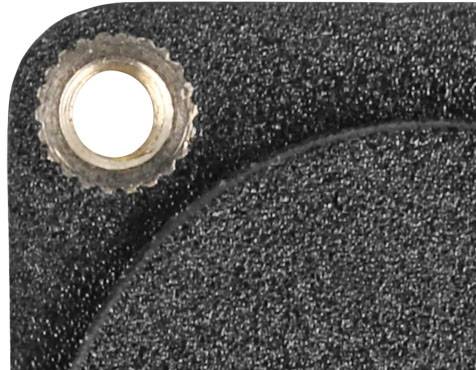

- Two holes for screw mounting
- Material: PVC.
- Colour, black
- Dim. (LxWxH): Approx. 37.5 x 31.0 x 25.8 mm
System requirements
- A free DisplayPort connection
