Delock 88307 1+1 ports USB video capture system Full HD resolution
EAN:
Part number:
Item no:

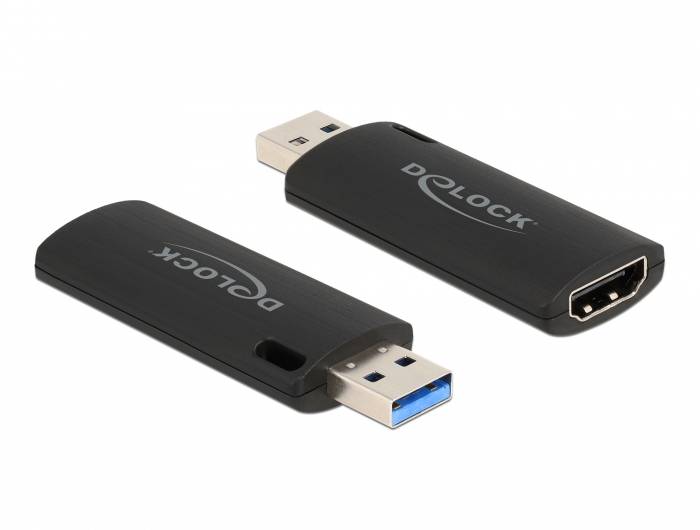

Delock HDMI video capture stick USB type-A
Highlights & Details
- USB 2.0
- 3840 x 2160 pixels
- USB power supply type
Technical specifications
- Product type
USB video capture system
- Features
Full HD resolution
- Supported resolutions
1080p
2160p
- Interfaces (output)
HDMI® input
- Interfaces (input)
USB A (USB 2.0)
- Width
66 mm
- Height
10 mm
- Weight
0.02
- Dim
(W x H x D) 66 x 10 x 24 mm
- Port
1+1 ports
- Cable design
Round
- Version
Cable
- Type A
USB 2.0
- Type B
HDMI plug
- Depth
24 mm
- No. of HDMI ports
1 x
- Cable use
C13/C14 appliances
- Connection type
USB
- Type
USB
- UKCA
yes
- Video capture resolution (max)
3840 x 2160 p
- Internal
no
- Manual
yes
- Plug and Play
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3379269 Delock 88307 1+1 ports USB video capture system Full HD resolution
Description
This HDMI capture stick by Delock can be used to transfer video signals, for example, from a digital camera, to a PC.
USB video class (UVC) standard
The connected computer or the tablet / smartphone processes the supplied camera signal like a webcam. Thus, together with a camcorder or an action camera, the device is ideal for video conferences or live streaming.
HDMI video and audio capture
The capture stick enables the recording of HDMI sources of up to a maximum resolution of 4k @ 30 Hz; the recording is done compressed with up to 1080p at 30 Hz.
This text is machine translated.
USB video class (UVC) standard
The connected computer or the tablet / smartphone processes the supplied camera signal like a webcam. Thus, together with a camcorder or an action camera, the device is ideal for video conferences or live streaming.
HDMI video and audio capture
The capture stick enables the recording of HDMI sources of up to a maximum resolution of 4k @ 30 Hz; the recording is done compressed with up to 1080p at 30 Hz.
This text is machine translated.
Features
- The output of a stereo signal is mono-summed
- Videos with HDCP copy protection cannot be recorded
