Delock 88690 Internal antenna GSM
EAN:
Part number:
Item no:

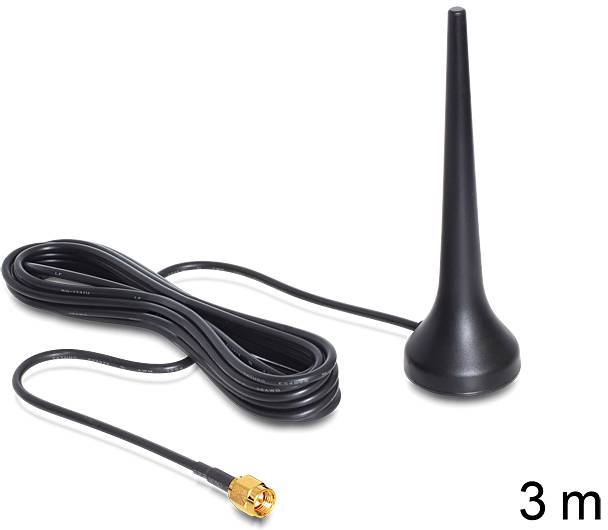

Delock GSM UMTS 6-band antenna SMA 0 dBi omnidirectional antenna with magnetic base and rigid black
Highlights & Details
Technical specifications
- Product type
Mobile phone antenna
- Mobile phone standard
GSM
LTE
UMTS
- Factory colour
Black
- Gain
0 dBi
- Antenna type
Internal antenna
- Suitable for mains
GSM
- Width
32 mm
- Height
103.3 mm
- Cable length
3 m
- Depth
32 mm
- Weight
0.10
- UKCA
yes
- Operating temperature (T-T)
-10 - 75 °C
- Antenna gain level (max)
2 dBi
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3380425 Delock 88690 Internal antenna GSM
Description
This GSM UMTS antenna from Delock enables the use of different frequency bands in indoor areas.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- Frequency range 824 - 960 / 1710 - 1990 - 2200 / 2400 MHz
- Antenna gain 0 dBi
- Impedance: 50 ohm
- Polarisation: Linear vertical
- VSWR: ≤2.0
- Operating temperature 10 °C - 75 °C
- ABS casing material
- Colour, black
- Antenna length: 103.30 mm
- Cable type: Coaxial
- Cable type: RG-174
- Cable color: Black
- Cable attenuation: 1.8 dB @ 1.8 GHz per meter
- cable diameter 2.7 mm
- Diameter of magnetic base 32 mm
- Cable length incl. connection: Approx. 3 m.
System requirements
- Device with a free SMA connection
