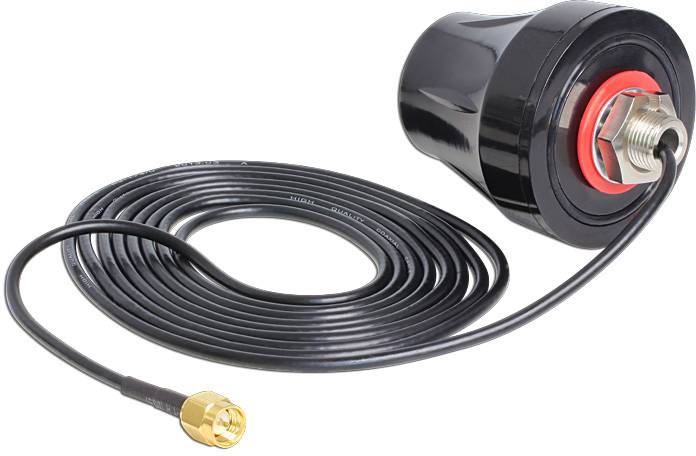

Delock 88749 88749 LTE antenna 2 dBi 2.4 GHz
EAN:
Part number:
Item no:
Delock 88749 network-antenna Omni-directional antenna RP-SMA 2 dBi
Highlights & Details
- Omni-directional antenna RP-SMA black
- 2 dBi
- 0,790 - 0,870 / 1,710 - 2,690 GHz
- 50 Ohm
- Vertical polarization
Technical specifications
- Frequency range 0,790 - 0,870 / 1,710 - 2,690 GHz
- Impedance: 50 ohm
- Product type
LTE antenna
- Gain
2 dBi
- Wi-Fi frequency band
2.4 GHz
- Used at
Indoors
- Weight
0.149
- Mounting type
Screw fastening
- Polarisation
Linear
Vertical
- Width
50 mm
- Height
48 mm
- Length
48 mm
- Cable length
3 m
- Factory colour
Black
- Depth
50 mm
- Charging capacity (max.)
7.5 W
- Charging capacity (min.)
2.5 W
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3380429 Delock 88749 88749 LTE antenna 2 dBi 2.4 GHz
Description
You can install this LTE antenna indoors or outdoors and use it for all mentioned LTE tapes. The antenna is completely compatible with GSM/ UMTS/ WLAN 2.4 GHz, ZigBee, Z-Wave and Bluetooth.
This text is machine translated.
This text is machine translated.
Features
- LTE tape:1-10; 12-20; 23; 25-30; 33-41; 44
- Frequency ranges 694 - 960 MHz, 1710 - 2700 MHz
- GSM 710/750/810/850/1800/1900
- P-GSM:900
- R-GSM 900
- T-GSM 810/900
- UMTS: BAND I-X/XII-XIV/XIX
- WLAN 2.4 GHz
- ZigBee
- Z-Wave
- Bluetooth
- DECT
- Gain 2 dBi
- Polarisation: linear, vertical
- Impedance: 50 ohm
- VSWR:
- 2.0 max. @ 694~960 MHz/ 1710~2170 MHz
- 3.0 max. @ 2400~2700 MHz
- Dimensions:
- Height: 48 mm
- Diameter 50 mm
- 12 mm central hole for screw mounting
- Cable length approx. 3 m
- Cable type: RG-174
- Cable attenuation: Approx. 1 dB/m @ 1 GHz
- Cable connection SMA plug
- Operating temperature: -10 °C ~ 55 °C
- ABS UV-protected
- IP 67
