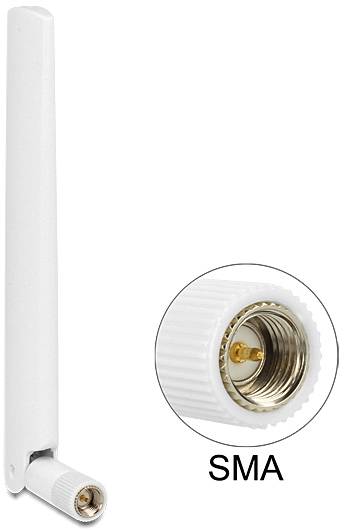

Delock 88790 88790 LTE antenna 2.5 dBi 2.4 GHz
EAN:
Part number:
Item no:
Highlights & Details
Delock 88790 network-antenna Omni-directional antenna RP-SMA 2.5 dBi
- Omni-directional antenna RP-SMA white
- 2.5 dBi
- 0.79 - 0.87 / 1.71 - 1.88 / 2.50 - 2.69 GHz
- 50 Ohm
- Vertical polarization
Technical specifications
- Frequency range 0.79 - 0.87 / 1.71 - 1.88 / 2.50 - 2.69 GHz
- Impedance: 50 ohm
- Product type
LTE antenna
- Gain
2.5 dBi
- Type
Monopole antenna
- Wi-Fi frequency band
2.4 GHz
- Antenna socket
SMA plug
- Antenna socket
SMA plug
- Weight
0.10
- No. of ports
1
- Polarisation
Linear
Vertical
- Width
10 mm
- Height
137.1 mm
- Length
137.70 mm
- Version
Adapter
- Factory colour
White
- Depth
10 mm
- Cable use
Networks
- Charging capacity (max.)
7.5 W
- Charging capacity (min.)
2.5 W
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3380568 Delock 88790 88790 LTE antenna 2.5 dBi 2.4 GHz
Description
You can connect this GSM/UMTS/LTE antenna to your GSM/UMTS/LTE device with SMA connection to receive and send signals.
This text is machine translated.
This text is machine translated.
Features
- SMA plug connections
- Frequency range:
- 790 - 870 MHz
- 1710 - 1880 MHz
- 2500 - 2690 MHz
- Antenna gain:
- -1.0 - 0.0 dBi @ 790 - 870 MHz
- -0.5 - 0.5 dBi @ 1710 - 1880 MHz
- 0.5 - 2.5 dBi @ 2500 - 2690 MHz
- Impedance: 50 ohm
- Polarisation: linear, vertical
- VSWR 3.0
- Operating temperature: -10 °C ~ 55 °C
- ABS casing material
- Colour: white
- Length:
- Approx. 137.70 mm (with articulated joint)
- Approx. 115.00 mm (without swivel joint)
- Diameter:
- Approx. 18.80 mm (tip)
- Approx. 10.00 mm (SMA)
System requirements
- Device with a free SMA socket
