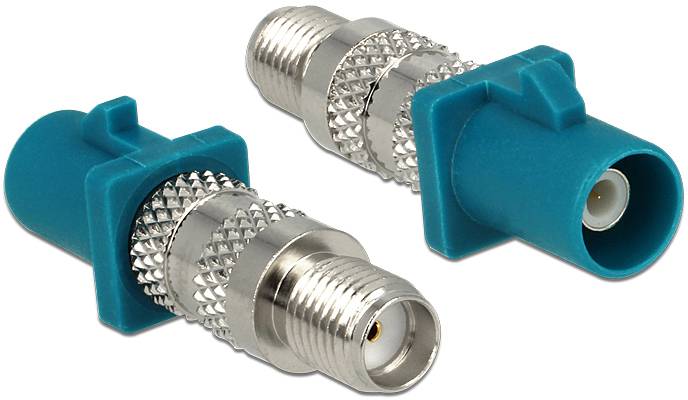

Delock 88932 88932 HF adapter SMBA FAKRA plug - SMA socket 0 mm 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
HF adapter
Type A
SMBA FAKRA plug
Type B
SMA socket
Connector type
Adapter
Highlights & Details
Adapter FAKRA Z plug to SMA socket
- SMBA FAKRA plug - SMA socket
Technical specifications
- Connection 1: FAKRA Z
- Connection 2: SMA
- Packaging type
Piece
- Product type
HF adapter
- Type A
SMBA FAKRA plug
- Type B
SMA socket
- Connector type
Adapter
- Impedance
50 Ω
- Content
1 pc(s)
- Cable length
0 mm
- Case material
PA 6.6
- Manufacturer part #
88932
- Factory colour
Blue
- Insulation material
PTFE
- Type
88932
- Depth
32 mm
- Height
11 mm
- Width
9.5 mm
- Screen size diagonal (inches)
24 inch
- Weight
0.008
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381114 Delock 88932 88932 HF adapter SMBA FAKRA plug - SMA socket 0 mm 1 pc(s) Piece
Description
This adapter by Delock is suitable for connection of components of the high-frequency technology.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x FAKRA Z plug
- 1 x SMA socket
- FAKRA Z: RAL 5021 WATER BLUE
- Pin: Gold-plated phosphorus bronze
- Insulation: PTFE
- Safety ring: Nickel-plated beryllium
- Plastic housing PA66
- Impedance: 50 ohm
- Dim. (LxWxH): Approx. 32.0 x 11.0 x 9.5 mm
System requirements
- Device with a free FAKRA Z or SMA connection
