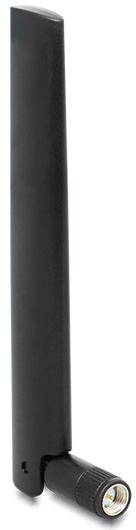

Delock 88970 88970 LTE antenna 3 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Delock LTE antenna (50 piece) SMA -0.8 - 3.0 dBi omnidirectional emission with swiveling joint black bulk
- Omni-directional antenna SMA Black
- 3 dBi
- 0,704-0,862, 0.88-0.96, 1.71-1.88, 1.92-2.17, 2.5-2.69 GHz
- 50 Ohm
- Vertical polarization
Technical specifications
- 0,704-0,862, 0.88-0.96, 1.71-1.88, 1.92-2.17, 2.5-2.69 GHz
- Impedance: 50 ohm
- Product type
LTE antenna
- Gain
3 dBi
- Type
Monopole antenna
- Wi-Fi frequency band
2.4 GHz
- Used at
Indoors
- Antenna socket
SMA plug
- Antenna socket
SMA plug
- No. of ports
1
- Polarisation
Linear
Vertical
- Width
19 mm
- Length
13.5 cm
- Factory colour
Black
- Material (details)
Acrylonitrile butadiene styrene (ABS)
- UKCA
yes
- Operating temperature (T-T)
-20 - 65 °C
- Quantity per pack
1 Stück(e)
- Diameter
1.9 cm
Documents & Downloads
Datasheet
Datasheet 3383590 Delock 88970 88970 LTE antenna 3 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3383590 Delock 88970 88970 LTE antenna 3 dBi 2.4 GHz
Description
The antenna from Delock enables the use of different LTE, GSM and UMTS bands indoors. It is fully Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz compatible.
This text is machine translated.
This text is machine translated.
Features
- Small alspan style= font-size:14px connection: 1 x SMA connector
- Frequency range:
- 704 - 862 MHz
- 880 - 960 MHz
- 1710 - 1880 MHz
- 1920 - 2170 MHz
- 2500 - 2690 MHz
- Antenna gain -0.8 - 3 dBi
- Impedance: 50 ohm
- VSWR 3
- Polarisation: linear, vertical
- Operating temperature -20 °C - 65 °C
- ABS casing material
- Colour, black
- Antenna length: Approx. 13.5 cm
- Diameter: Approx. 19 mmsmaller than/span
System requirements
- Device with a free SMA socket
