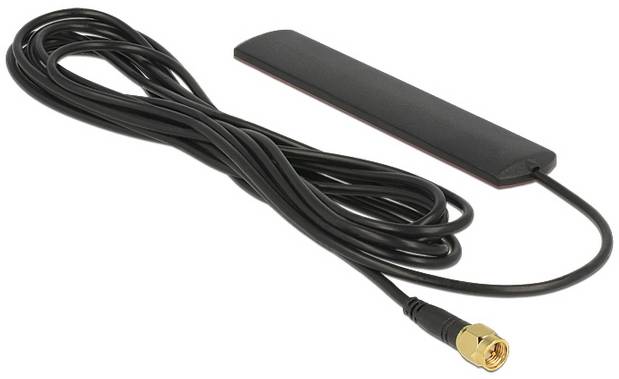

Delock 88987 88987 LTE antenna 3 dBi 2.4 GHz
EAN:
Part number:
Item no:
Delock 88987 Network-Antenna Omni-directional Antenna SMA 3 dBi
Highlights & Details
- Omni-directional antenna SMA Black
- 3 dBi
- 0,791 - 0.96 / 1.71 - 2.7 GHz
- 50 Ohm
Technical specifications
- Frequency range 0,791 - 0.96 / 1.71 - 2.7 GHz
- Impedance: 50 ohm
- Cable type: RG-174
- Product type
LTE antenna
- Gain
3 dBi
- Type
Flat antenna
- Wi-Fi frequency band
2.4 GHz
- Used at
Indoors
- Antenna socket
SMA plug
- Weight
0.10
- No. of ports
1
- Width
22 mm
- Height
5 mm
- Length
115 mm
- Cable length
3 m
- Factory colour
Black
- Depth
115 mm
- Charging method (Power Delivery)
w/o USB Power Delivery
- Charging capacity (max.)
15 W
- Charging capacity (min.)
10 W
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Quantity per pack
1 Stück(e)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381127 Delock 88987 88987 LTE antenna 3 dBi 2.4 GHz
Description
This LTE antenna can be installed indoors and can be used for receiving various LTE tapes. It is completely compatible with Bluetooth, UMTS, GSM, WLAN 2.4 GHz and ZigBee.
This text is machine translated.
This text is machine translated.
Features
- Connection: SMA plug
- LTE tape 1-10/12-20/23/25-30/33-41/43/44
- Frequency range 690-960 - 1710-2700 MHz
- UMTS/GSM/Bluetooth/WLAN 2.4GHz/ZigBee/Z wave/DECT/SRD
- Antenna gain 3 dBi
- Impedance: 50 ohm
- VSWR: Max. 2.0:1
- Type of cable: Coaxial cable
- Cable type: RG-174
- Cable attenuation: 0.93 dB @ 800 MHz per meter
- Cable color: Black
- Cable length approx. 3 m
- Operating temperature 10 °C - 55°C
- Case material: ABS UV-protected
- Dim. (LxWxH): Approx. 115 x 22 x 5 mm
System requirements
- Device with a free SMA connection
