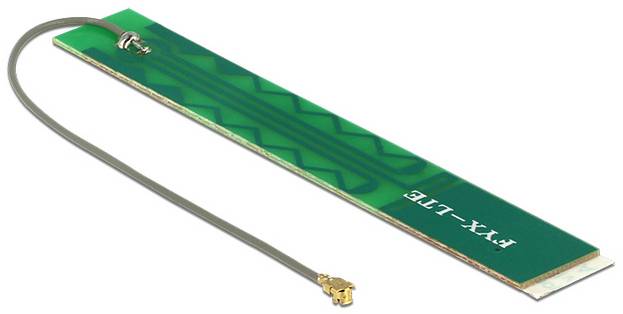

Delock 88988 88988 LTE antenna 3 dBi 2.4 GHz
EAN:
Part number:
Item no:
Highlights & Details
Delock 88988 Network-Antenna Omni-directional Antenna MHF 3 dBi
- Omni-directional antenna MHF green, gray
- 3 dBi
- 50 Ohm
Technical specifications
- Impedance: 50 ohm
- Cable type:coax
- Product type
LTE antenna
- Gain
3 dBi
- Type
Flat antenna
- Wi-Fi frequency band
2.4 GHz
- Antenna socket
IPEX plug
- Weight
0
- No. of ports
1
- Mounting type
Adhesive
- Width
14 mm
- Height
0.9 mm
- Length
10 cm
- Cable design
Round
- Cable length
0.1 m
- Version
Cable
- Factory colour
Green
Grey
- Depth
96 mm
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Quantity per pack
1 Stück(e)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381129 Delock 88988 88988 LTE antenna 3 dBi 2.4 GHz
Description
This Delock LTE antenna allows multiple LTE tapes to be used indoors and outdoors. It is fully GSM, UMTS, LTE, LoRa, NB-IoT, ISM, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave compatible.
This text is machine translated.
This text is machine translated.
Features
- Connection: 1 x I-PEX Inc., MHF® I plug
- Frequency range:
- 690 - 960 MHz
- 1710 - 2700 MHz
- GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT,
- LoRa
- Antenna gain 2 - 3 dBi
- Impedance: 50 ohm
- VSWR: ≤1.5

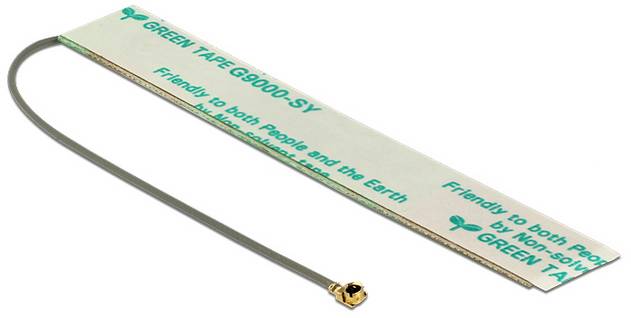

- Mounting type: Adhesive mounting
- Operating temperature: -10 °C ~ 55 °C
- Cable type: Coaxial
- Cable type 1.13
- Cable color: Grey
- Cable diameter: Approx. 1.13 mm
- Cable attenuation: 3.2 dB @ 2.4 GHz per meter
- Minimum bend radius: Approx. 4.5 mm
- Length including connections (L): Approx. 10 cm
- Dim. (LxWxH): Approx. 96.0 x 14.0 x 0.9 mm
System requirements
- Device with a free I-PEX Inc., MHF® I connector
