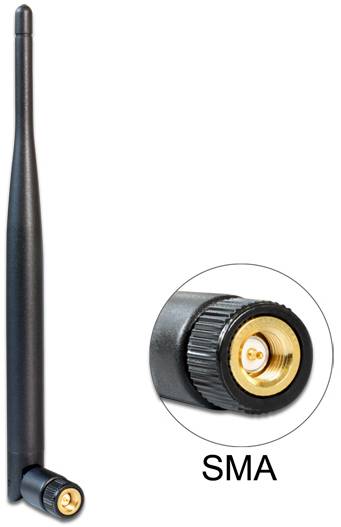

Delock 89438 89438 Wi-Fi antenna 5 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Delock 89438 Network-Antenna Omni-directional Antenna SMA 5 dBi
Highlights & Details
- Omni-directional antenna SMA Black, Gold
- 5 dBi
- 2.4 - 2.4835 / 5.15 - 5.7250 GHz
- 50 Ohm
- Male
Technical specifications
- Frequency range 2.4 - 2.4835 / 5.15 - 5.7250 GHz
- Impedance: 50 ohm
- Product type
Wi-Fi antenna
- Gain
5 dBi
- Type
Monopole antenna
- Wi-Fi frequency band
2.4 GHz
- Antenna socket
SMA plug
- Weight
0.10
- No. of ports
1
- Dual Band compatibility
2.4 GHz and 5 GHz
- Height
195 mm
- Length
195 mm
- Version
Adapter
- Factory colour
Black
Gold
- Cable use
Networks
- UKCA
yes
- Operating temperature (T-T)
-20 - 65 °C
- Quantity per pack
1 Stück(e)
- Gain
5 dBi
- Diameter
1.25 cm
Documents & Downloads
Datasheet
Datasheet 3380805 Delock 89438 89438 Wi-Fi antenna 5 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3380805 Delock 89438 89438 Wi-Fi antenna 5 dBi 2.4 GHz
Description
This WLAN antenna allows the connection to SMA devices to receive and send signals on the WLAN dual band.
This text is machine translated.
This text is machine translated.
Features
- Connection: SMA plug
- With tilt joint, rotatable
- Frequency ranges:
- 2.4000 ~ 2.4835 GHz
- 5.1500 ~ 5.7250 GHz
- Impedance: 50 ohm
- Antenna gain 4 - 5 dBi
- VSWR: Max. 2.0
- Operating temperature -20 °C - 65 °C
- Length:
- With tilting joint: Approx. 195 mm
- Without tilting joint: Approx. 165 mm
- Diameter:
- Tip: Approx. 6.0 mm
- SMA: Approx. 12.5 mm
System requirements
- Device with SMA connection
