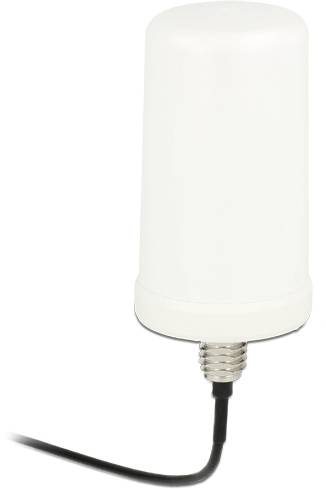

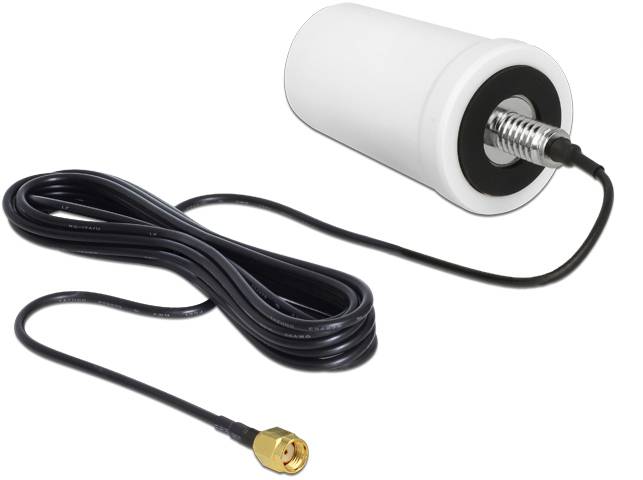

Delock 89449 89449 Wi-Fi antenna 0 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Delock 89449 network-antenna Omni-directional antenna RP-SMA 0 dBi
Highlights & Details
- Omni-directional antenna RP-SMA white
- 2.4 - 2.5 / 5.15 - 5,875 GHz
- 50 Ohm
- Vertical polarization
Technical specifications
- Frequency range 2.4 - 2.5 / 5.15 - 5,875 GHz
- Impedance: 50 ohm
- Cable type ULA100
- Product type
Wi-Fi antenna
- Gain
0 dBi
- Wi-Fi frequency band
2.4 GHz
- Antenna socket
RPSMA plug
- Weight
0.13
- No. of ports
1
- Dual Band compatibility
2.4 GHz and 5 GHz
- Mounting type
Screw fastening
- Polarisation
Linear
Vertical
- Width
45 mm
- Height
45 mm
- Length
77 mm
- Cable design
Round
- Cable length
3 m
- Version
Cable
- Factory colour
White
- Depth
77 mm
IP67
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-10 - 50 °C
- Quantity per pack
1 Stück(e)
- Mounting kit
yes
Documents & Downloads
Datasheet
Datasheet 3381135 Delock 89449 89449 Wi-Fi antenna 0 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3381135 Delock 89449 89449 Wi-Fi antenna 0 dBi 2.4 GHz
Description
This WLAN Delock antenna allows you to use both wireless bands outdoors and indoors.
This text is machine translated.
This text is machine translated.
Features
- RP-SMA plug connection
- Frequency range:
- 2400 - 2500 MHz
- 5150 - 5875 MHz
- Antenna gain 0 dBi
- Impedance: 50 ohm
- Polarisation: linear, vertical
- VSWR: 2.0 - 2.5
- Operating temperature: -10 °C ~ 50 °C
- IP67 protection class
- Screw mounting with 13 mm bore
- Colour: white
- Dim. (L x W x H): Approx. 77 x 45 x 45 mm
- Cable type: Coaxial
- Cable type ULA100
- Cable attenuation:
- 1.40 dB @ 2500 MHz per meter
- 2.30 dB @ 5875 MHz per meter
- cable diameter 2.79 mm
- Cable length incl. connection: Approx. 3 m.
System requirements
- Device with RP-SMA connection
