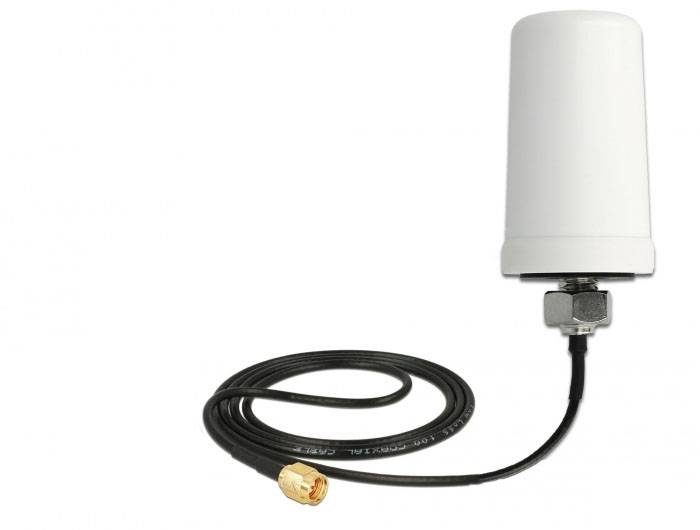

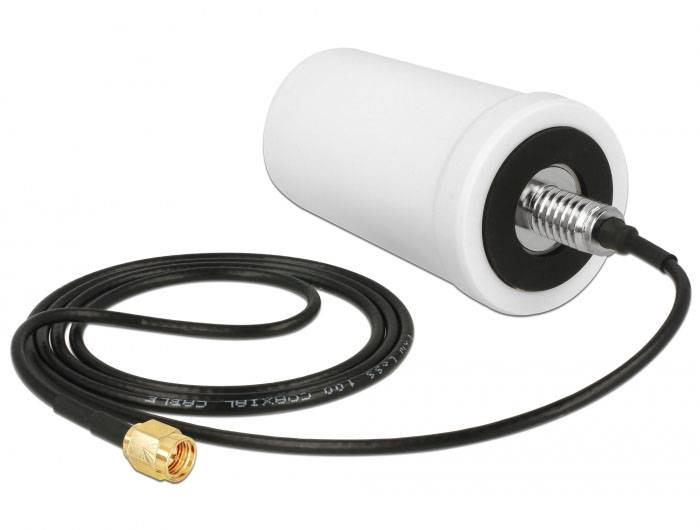

Delock 89486 89486 Wi-Fi antenna 3 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Delock WLAN 802.11 ac/a/h/b/g/n Antenna SMA Plug 1.4 - 3.0 dBi omnidirectional emission with connection cable ULA100 1 m white outdoor
- SMA
- 3 dBi
- 2.4 - 2.5, 4.9 - 5.85 GHz
- 50 Ohm
- Linear polarization
Technical specifications
- 2.4 – 2.5 GHz, 4.9 – 5.85 GHz band
- Impedance: 50 ohm
- Cable type ULA 100
- Product type
Wi-Fi antenna
- Gain
3 dBi
- Wi-Fi frequency band
2.4 GHz
- Antenna socket
SMA plug
- Weight
110 g
- No. of ports
1
- Dual Band compatibility
2.4 GHz and 5 GHz
- Polarisation
Linear
Vertical
- Width
100 mm
- Height
50 mm
- Length
250 cm
- Cable design
Round
- Cable length
1 m
- Version
Cable
IP67
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
Documents & Downloads
Datasheet
Datasheet 3383580 Delock 89486 89486 Wi-Fi antenna 3 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3383580 Delock 89486 89486 Wi-Fi antenna 3 dBi 2.4 GHz
Description
This WLAN antenna from Delock enables the use of different WLAN bands indoors and outdoors.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- Frequency range:
- 2400 - 2500 MHz
- 5150 - 5875 MHz
- Antenna gain:
- 1.4 dBi @ 2400 - 2500 MHz
- 3.0 dBi @ 5150 - 5875 MHz
- Impedance: 50 ohm
- Polarisation: linear, vertical
- VSWR: ≤2.0
- Operating temperature - 40 °C ~ 85 °C
- Polycarbonate housing material
- IP67 protection class
- Colour: white
- Cable type ULA 100
- Cable color: Black
- Cable attenuation:
- 1.4 dB @ 2500 MHz per meter
- 2.3 dB @ 5875 MHz per meter
- Cable diameter: Approx. 2.79 mm
- Cable length incl. connection: Approx. 1 m.
- Dim. (LxWxH): Approx. 77 x 45 x 45 mm
System requirements
- Device with a free SMA socket
