Delock 89487 89487 ISM antenna 2 dBi
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

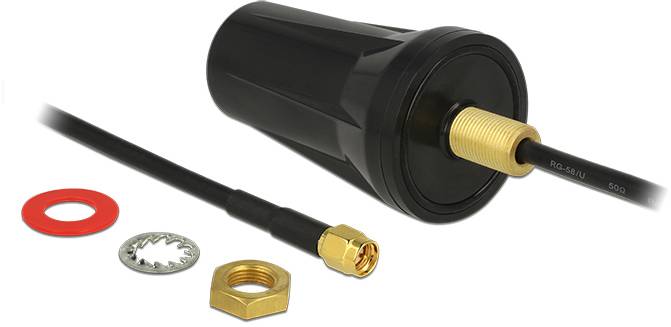

Delock 89487 Network-Antenna Omni-directional Antenna SMA 2 dBi
- Omni-directional antenna SMA Black, Gold
- 2 dBi
- 0,433 GHz
- 50 Ohm
- Vertical polarization Male
Technical specifications
- Frequency band: 0,433 GHz
- Impedance: 50 ohm
- Cable type RG-58 U
- Product type
ISM antenna
- Gain
2 dBi
- Used at
Outdoors
- Antenna socket
SMA plug
- Weight
0
- No. of ports
1
- Mounting type
Screw fastening
- Polarisation
Linear
Vertical
- Width
45.2 mm
- Height
75.5 mm
- Length
75.5 mm
- Cable design
Round
- Cable length
2 m
- Version
Cable
- Factory colour
Black
Gold
- Depth
45.2 mm
IP67
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
- Quantity per pack
1 Stück(e)
- Diameter
4.52 cm
Documents & Downloads
Datasheet
Datasheet 3380903 Delock 89487 89487 ISM antenna 2 dBi
User & Safety Instructions
User & Safety Instructions 3380903 Delock 89487 89487 ISM antenna 2 dBi
Description
This ISM antenna of Delock enables the use of the 433 MHz bandwidth in outdoor and indoor areas.
This text is machine translated.
This text is machine translated.
Features
- Connection: SMA plug
- Frequency range 433 MHz +/- 3 MHz
- Antenna gain 2 dBi
- Impedance: 50 ohm
- Polarisation: linear, vertical
- VSWR: ≤2.0
- Operating temperature -40 °C ~ 85 °C
- Protection class IP67
- Screw mounting with 13 mm bore
- Thread length: 19.5 mm
- Thread: M12
- Colour, black
- Dimension (L x Ø): Approx. 75.5 x 45.2 mm
- Cable type: Coaxial
- Cable type RG-58 U
- Cable attenuation: 0.35 dB @ 400 MHz per meter
- cable diameter 4.95 mm
- Cable length incl. connection: Approx. 2 m.
System requirements
- Device with a free SMA connection
