Delock 89490 89490 ISM antenna 2 dBi
EAN:
Part number:
Item no:
Datasheet (PDF)

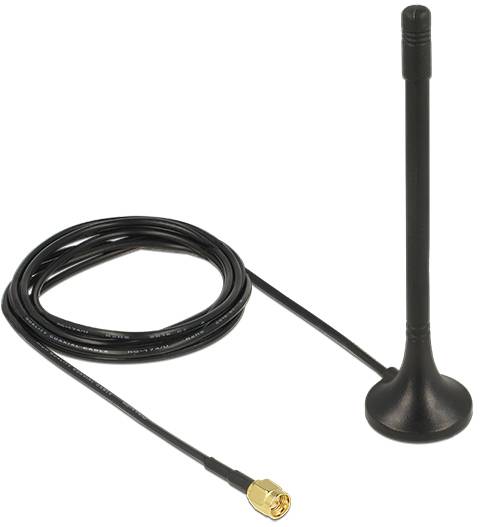

Delock 89490 Network-Antenna Omni-directional Antenna SMA 2 dBi
Highlights & Details
- Omni-directional antenna SMA
- 2 dBi
- 0,433 GHz
- 50 Ohm
- Vertical polarization Male
Technical specifications
- Frequency band: 0,433 GHz
- Impedance: 50 ohm
- Cable type: RG-174
- Product type
ISM antenna
- Gain
2 dBi
- Type
Monopole antenna
- Used at
Indoors
- Antenna socket
SMA plug
- Antenna socket
SMA plug
- Weight
0.045
- No. of ports
1
- Mounting type
Magnetic base
- Polarisation
Vertical
- Width
29.4 mm
- Height
121 mm
- Length
121 mm
- Cable design
Round
- Cable length
2 m
- Version
Cable
- Factory colour
Multicolour
- Depth
29.4 mm
- Cable use
C13/C14 appliances
- Material (details)
Acrylonitrile butadiene styrene (ABS)
Cable
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3380905 Delock 89490 89490 ISM antenna 2 dBi
User & Safety Instructions
User & Safety Instructions 3380905 Delock 89490 89490 ISM antenna 2 dBi
Description
This antenna from Delock enables the use of the ISM band 433 MHz in interiors.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- Frequency range 433 MHz +/- 10 MHz
- Antenna gain 2 dBi
- Impedance: 50 ohm
- Polarisation: Vertical
- VSWR: ≤2.0
- Operating temperature -40 °C ~ 85 °C
- ABS casing material
- Thread M5 (7.4 mm)
- Colour, black
- Antenna length incl. magnetic base: Approx. 121 mm
- Cable type: Coaxial
- Cable type: RG-174
- Cable attenuation: 1.5 dB @ 1.5 GHz per meter
- Cable color: Black
- Cable diameter: Approx. 2.7 mm
- Cable length incl. connections: Approx. 2 m.
- Diameter of magnetic base: Approx. 29.4 mm
System requirements
- Device with a free SMA socket
