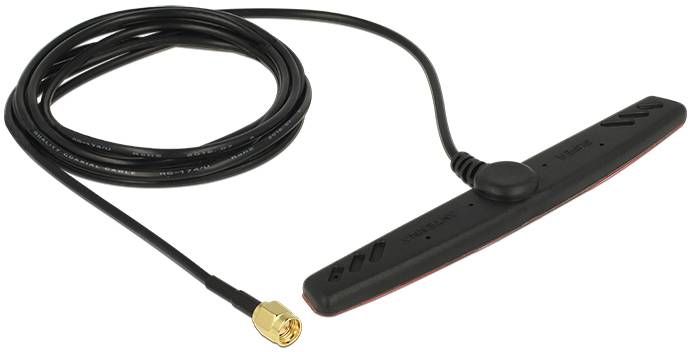

Delock 89494 Internal antenna GSM
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
GSM UMTS LTE antenna SMA plug 2.5 dBi 2 m RG-174 omnidirectional adhesive mounting
Technical specifications
- Cable type: RG-174
- Product type
Mobile phone antenna
- Mobile phone standard
GSM
LTE
UMTS
- Factory colour
Black
- Gain
2.5 dBi
- Length
126 mm
- Antenna type
Internal antenna
- Suitable for mains
GSM
- Width
16.2 mm
- Height
8.8 mm
- Cable design
Round
- Cable length
2 m
- Version
Cable
- Depth
126 mm
- Cable use
C13/C14 appliances
- Weight
0.10
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
- Antenna gain level (max)
2.5 dBi
- Impedance
50 Ohm
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3381010 Delock 89494 Internal antenna GSM
User & Safety Instructions
User & Safety Instructions 3381010 Delock 89494 Internal antenna GSM
Description
This GSM UMTS LTE antenna from Delock enables the use of different frequency bands in indoor locations. It is fully compatible with ZigBee 868/915 MHz, DECT and Z-Wave.
This text is machine translated.
This text is machine translated.
Features
- Connection: SMA plug
- LTE tape 1-6/8-10/19/25/33-37/39
- Frequency range 824 - 960, 1920 - 2170 MHz
- GSM, UMTS, ZigBee 868 / 915 MHz, DECT, Z-Wave
- Antenna gain 2.5 dBi
- Impedance: 50 ohm
- Polarisation: Vertical
- VSWR: ≤2.0
- Operating temperature -40 °C ~ 85 °C
- Colour, black
- Dim. (LxWxH): Approx. 126.0 x 16.2 x 8.8 mm
- Cable type: Coaxial
- Cable type: RG-174
- Cable color: Black
- Cable attenuation: 1.8 dB @ 1.8 GHz per meter
- Cable diameter: Approx. 2.7 mm
- Cable length incl. connections: Approx. 2 m.
System requirements
- Device with a free SMA connection
