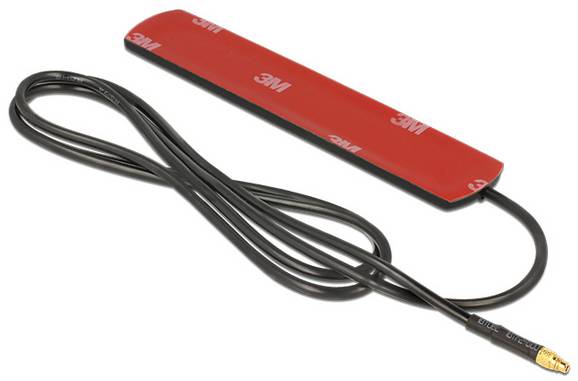

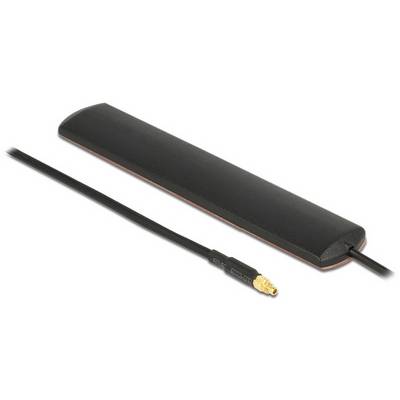

Delock 89525 89525 LTE antenna 3 dBi 2.4 GHz
EAN:
Part number:
Item no:
Delock 89525 Network-Antenna Omni-directional Antenna MMCX 3 dBi
Highlights & Details
- Omni-directional antenna MMCX black
- 3 dBi
- 0.69 - 0.96 / 1.71 - 2.7 GHz
- 50 Ohm
- Vertical polarization
Technical specifications
- Frequency range 0.69 - 0.96 / 1.71 - 2.7 GHz
- Impedance: 50 ohm
- Cable type: RG-174
- Product type
LTE antenna
- Gain
3 dBi
- Type
Flat antenna
- Wi-Fi frequency band
2.4 GHz
- Used at
Indoors
- Antenna socket
MMCX plug
- Antenna socket
MMCX plug
- Weight
0
- No. of ports
1
- Polarisation
Vertical
- Width
22 mm
- Height
5 mm
- Length
115 mm
- Cable design
Round
- Cable length
3 m
- Version
Cable
- Factory colour
Black
- Depth
115 mm
- Cable use
C13/C14 appliances
- Material (details)
Acrylonitrile butadiene styrene (ABS)
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Quantity per pack
1 Stück(e)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381512 Delock 89525 89525 LTE antenna 3 dBi 2.4 GHz
Description
The Delock LTE antenna allows multiple indoor LTE tapes to be used. It is completely GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave compatibility.
This text is machine translated.
This text is machine translated.
Features

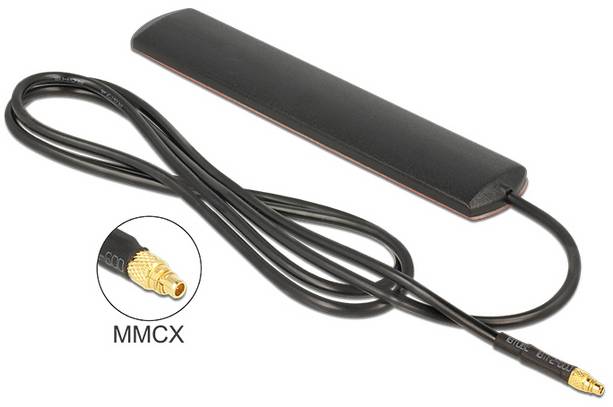

- MMCX connector
- LTE band 1 – 10, 12 – 20, 23, 25 – 30, 33 – 41, 43, 44
- Frequency range 690 - 960, 1710 - 2700 MHz
- GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave
- Antenna gain 3 dBi
- Impedance: 50 ohm
- Polarisation: Vertical
- VSWR: ≤2.0
- Operating temperature: -10 °C ~ 55 °C
- Case material: ABS UV-protected
- Colour, black
- Dim. (LxWxH): Approx. 115 x 22 x 5 mm
- Cable type: Coaxial
- Cable type: RG-174
- Cable color: Black
- Cable attenuation: 1.5 dB @ 1.5 GHz per meter
- Cable diameter: Approx. 2.7 mm
- Cable length incl. connections: Approx. 0.9 m.
System requirements
- Device with a free MMCX connection
