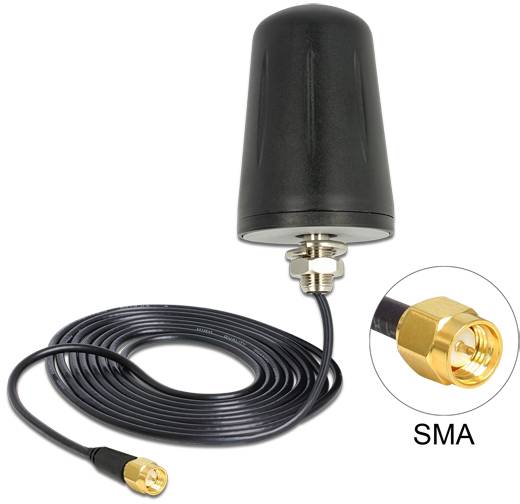

Delock 89533 89533 LoRa antenna 0 dBi
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Delock 89533 Network-Antenna Omni-directional Antenna SMA 0 dBi
- Omni-directional antenna SMA Black
- 0,868 GHz
- 50 Ohm
- Male
Technical specifications
- Frequency band: 0,868 GHz
- Impedance: 50 ohm
- Cable type: RG-174
- Product type
LoRa antenna
- Gain
0 dBi
- Used at
Outdoors
- Antenna socket
SMA plug
- Weight
0.11
- No. of ports
1
- Mounting type
Screw fastening
- Polarisation
Linear
Vertical
- Width
53.5 mm
- Height
75 mm
- Length
150 cm
- Cable design
Round
- Cable length
3 m
- Version
Cable
- Factory colour
Black
- Depth
53.5 mm
IP67
- Cable use
C13/C14 appliances
- Material (details)
Acrylonitrile butadiene styrene (ABS)
- UKCA
yes
- Operating temperature (T-T)
-30 - 70 °C
- Quantity per pack
1 Stück(e)
- Maximum cable loss with connectors
1 dB
- Diameter
5.35 cm
- Power handling
10 W
Documents & Downloads
Datasheet
Datasheet 3381174 Delock 89533 89533 LoRa antenna 0 dBi
User & Safety Instructions
User & Safety Instructions 3381174 Delock 89533 89533 LoRa antenna 0 dBi
Description
This Delock antenna allows you to use the 868 MHz band indoors and outdoors. It is compatible with ZigBee 868 MHz and Z-Wave 868 MHz.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- Frequency range 868 MHz
- Antenna gain 0 dBi
- Impedance: 50 ohm
- Polarisation: linear, vertical
- VSWR: ≤2.0
- Transmitted power 10 W
- Operating temperature: -30 °C ~ 70 °C
- Colour, black
- Case material: ABS UV-protected

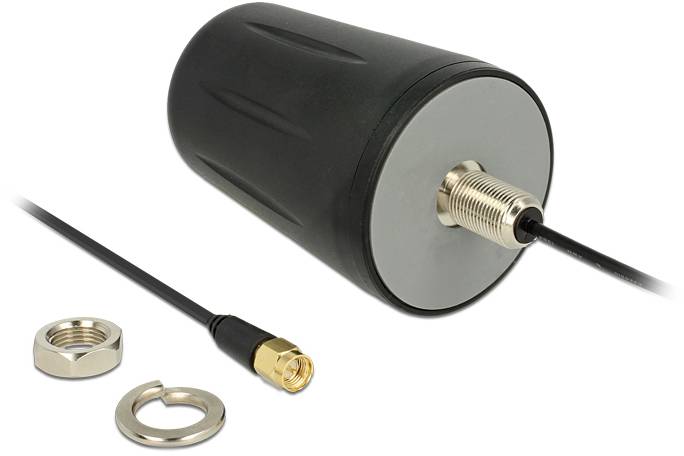

- Screw mounting with 13.5 mm bore
- Thread length: 18 mm
- Protection class IP67
- Cable type: Coaxial
- Cable type: RG-174
- Cable color: Black
- Cable attenuation: 1.0 dB @ 868 MHz per meter
- Cable diameter: Approx. 2.7 mm
- Cable length incl. connection: Approx. 3 m.
- Dimensions (LxD): Approx. 75.0 x 53.5 mm
System requirements
- Device with a free SMA socket
