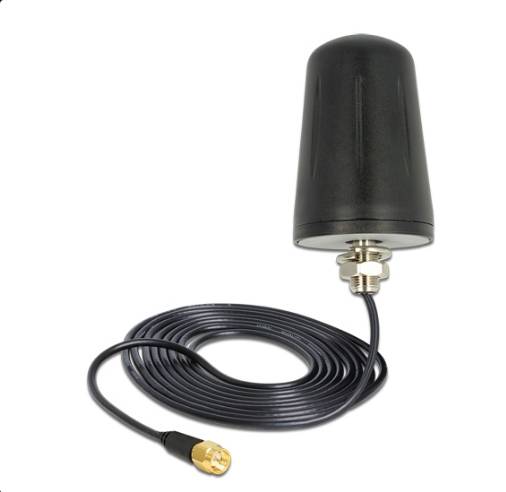

Delock 89534 89534 Wi-Fi antenna 3 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Delock 89534 Network-Antenna Omni-directional Antenna SMA 3 dBi
Highlights & Details
- Omni-directional antenna SMA Black
- 3 dBi
- 2.4 ~ 2.5 GHz
- 50 Ohm
- Linear/vertical male
Technical specifications
- 2.4 - 2.5 GHz
- Impedance: 50 ohm
- Cable type: RG-174
- Product type
Wi-Fi antenna
- Gain
3 dBi
- Wi-Fi frequency band
2.4 GHz
- Antenna socket
SMA plug
- Weight
0
- No. of ports
1
- Polarisation
Linear
Vertical
- Width
53.5 mm
- Height
75 mm
- Length
75.0 mm
- Cable design
Round
- Cable length
3 m
- Version
Cable
- Factory colour
Black
IP67
- Cable use
C13/C14 appliances
- Material (details)
Acrylonitrile butadiene styrene (ABS)
- UKCA
yes
- Operating temperature (T-T)
-30 - 70 °C
- Ultraviolet (UV) resistant
yes
- Quantity per pack
1 Stück(e)
- Maximum cable loss with connectors
1.5 dB
- Diameter
5.35 cm
Documents & Downloads
Datasheet
Datasheet 3381176 Delock 89534 89534 Wi-Fi antenna 3 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3381176 Delock 89534 89534 Wi-Fi antenna 3 dBi 2.4 GHz
Description
This Delock antenna allows you to use the 2.4 GHz band indoors and outdoors. It is fully Bluetooth and ZigBee 2.4 GHz compatible.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- Frequency range: 2.4 GHz/ 2.5 GHz
- ZigBee 2.4 GHz, Bluetooth
- Antenna gain 3 dBi
- Impedance: 50 ohm
- Polarisation: linear, vertical
- VSWR: ≤2.0
- Transmitted power 10 W
- Operating temperature: -30 °C ~ 70 °C
- Colour, black
- Case material: ABS UV-protected

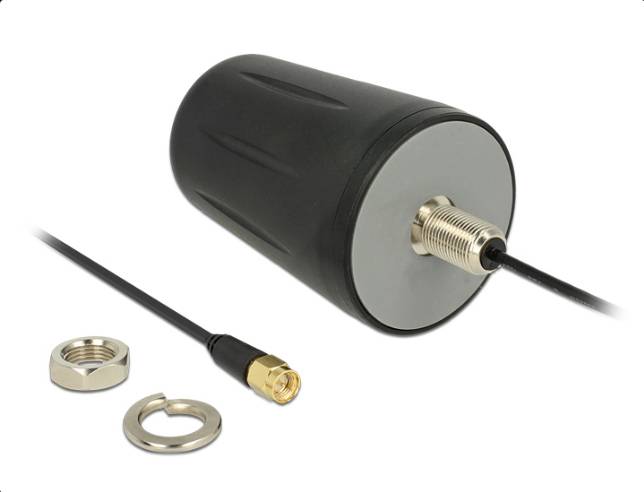

- Screw mounting with 13.5 mm bore
- smaller than div
- Thread length: Approx. 18 mm smaller than/div
- IP67 protection class
- Cable type: Coaxial
- Cable type: RG-174
- Cable color: Black
- Cable attenuation: Approx. 1.5 dB @ 1.5 GHz per meter
- Cable diameter: Approx. 2.7 mm
- Cable length incl. connection: Approx. 3 m.
- Dimensions (LxD): Approx. 75.0 x 53.5 mm
System requirements
- Device with a free SMA socket
