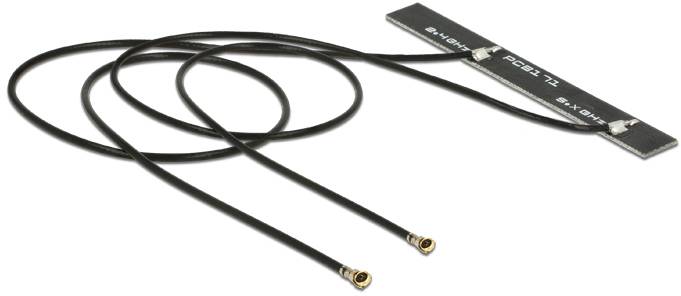

Delock 89571 89571 Wi-Fi antenna 5 dBi 2.4 GHz
EAN:
Part number:
Item no:
Delock 89571 network antenna MHF 5 dBi
Highlights & Details
- MHF
- 5 dBi
- 2.4 - 2,483 / 5.15 - 5.85 GHz
- 50 Ohm
- Female/Female
Technical specifications
- Frequency range 2.4 - 2,483 / 5.15 - 5.85 GHz
- Impedance: 50 ohm
- Product type
Wi-Fi antenna
- Gain
5 dBi
- Type
Flat antenna
- Wi-Fi frequency band
2.4 GHz
- Antenna socket
IPEX plug
- Weight
0.008
- No. of ports
2
- Mounting type
Adhesive
- Polarisation
Linear
Vertical
- Width
7 mm
- Height
1.6 mm
- Cable design
Round
- Cable length
1.13 m
- Version
Cable
- Factory colour
Black
- Depth
616 mm
- Cable use
C13/C14 appliances
- Charging capacity (max.)
7.5 W
- Charging capacity (min.)
2.5 W
- UKCA
yes
- Operating temperature (T-T)
-10 - 50 °C
- Quantity per pack
1 Stück(e)
- Power handling
1 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381064 Delock 89571 89571 Wi-Fi antenna 5 dBi 2.4 GHz
Description
This wireless dual antenna enables integration in devices with MHF IV connection. There are two separate antennas with a common ground point.
- Connections: 2 x miniature HF coaxial connector MHF IV (I-PEX), MXHP32 (HSC) compatible
- Frequency range:
- 2400 - 2500 MHz
- 5150 - 5850 MHz
- Antenna gain: 5 dBi
Impedance: 50 ohm
- Type of cable: Coaxial
- Cable attenuation:
3.20 dB @ 2.4 GHz per meter
5.05 dB @ 5.0 GHz per meter
- Cable diameter: Approx. 1.13 mm
- Cable length incl. connections: Approx. 250 mm
Operating temperature: -10 °C ~ 50 °C
- Dimensions (LxWxH): Approx. 61.6 x 7.0 x 1.6 mm
This text is machine translated.
- Connections: 2 x miniature HF coaxial connector MHF IV (I-PEX), MXHP32 (HSC) compatible
- Frequency range:
- 2400 - 2500 MHz
- 5150 - 5850 MHz
- Antenna gain: 5 dBi
Impedance: 50 ohm
- Type of cable: Coaxial
- Cable attenuation:
3.20 dB @ 2.4 GHz per meter
5.05 dB @ 5.0 GHz per meter
- Cable diameter: Approx. 1.13 mm
- Cable length incl. connections: Approx. 250 mm
Operating temperature: -10 °C ~ 50 °C
- Dimensions (LxWxH): Approx. 61.6 x 7.0 x 1.6 mm
This text is machine translated.
Features
- Connection: 2 x I-PEX Inc., MHF® 4L plug
- Frequency range:
- 2400 - 2500 MHz
- 5150 - 5850 MHz
- Bluetooth, WLAN 2.4/5.0 GHz, ZigBee 2.4 GHz, ISM
- Antenna gain 5 dBi
- VSWR: ≤2.0
- Impedance: 50 ohm
- Polarisation: linear, vertical
- Mounting type: Adhesive mounting
- Operating temperature: -10 °C ~ 55 °C
- FPC casing material
- Colour, black
- Cable type: Coaxial
- Cable type 1.13
- Cable color: Black
- Cable diameter: Approx. 1.13 mm
- Cable attenuation: 3.2 dB @ 2.4 GHz per meter
- Minimum bend radius: Approx. 4.5 mm
- Dim. (LxWxH): Approx. 61.60 x 7.00 x 1.60 mm
- Length including connections (L): 2 x approx. 25 cm
System requirements
- Device with two free I-PEX Inc., MHF® 4L connectors
