Delock 89583 89583 LoRa antenna 3 dBi
EAN:
Part number:
Item no:
Highlights & Details
Delock 89583 Network-Antenna N-Type 3 dBi
- N-type
- 3 dBi
- 0.87 GHz
- 50 Ohm
Technical specifications
- Frequency band: 0.87 GHz
- Impedance: 50 ohm
- Product type
LoRa antenna
- Gain
3 dBi
- Antenna socket
N socket
- Weight
145 g
- No. of ports
1
- Polarisation
Linear
Vertical
- Width
2.2 cm
- Length
32.0 cm
- Cable design
Round
- Version
Cable
- Factory colour
Multicolour
- Cable use
C13/C14 appliances
- UKCA
yes
- Diameter
22 cm
- Power handling
100 W
- Horizontal beam width
360°
- Vertical beam width
60°
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381228 Delock 89583 89583 LoRa antenna 3 dBi
Description
This Delock antenna allows you to use the 868 MHz bandwidth in indoor and outdoor areas.
This text is machine translated.
This text is machine translated.
Features
- 1 x N socket
- Antenna type: Collinear dipolar ray
- Frequency range 860 - 870 MHz
- Antenna gain 3 dBi
- Impedance: 50 ohm
- Polarisation: linear, vertical
- HBW horizontal opening angle: 360°
- VBW vertical aperture angle: 60°
- VSWR: ≤1.5
- Transmitted power 100 W max.
- Operating temperature: -40 °C ~ 80 °C
- Protection class IP65
- Housing material:GFK UV-protected
- Colour: white
- Length approx. 32.0 cm
- Diameter approx. 2.2 cm
- Weight:
- Antenna: Approx. 145 g

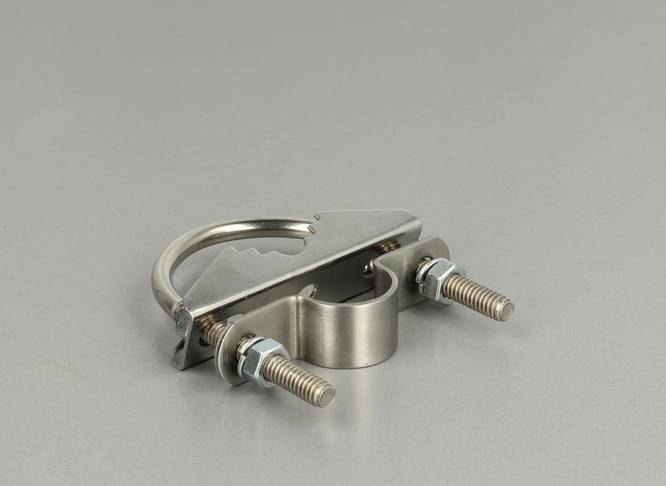

- Attachment material: Approx. 75 g
System requirements
- Device with a free N plug
