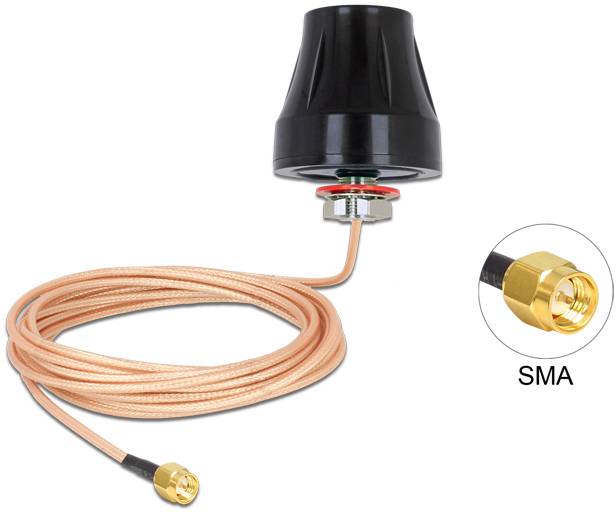

Delock 89589 89589 LTE antenna 2 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Delock 89589 Network-Antenna Omni-directional Antenna SMA 2 dBi
- Omni-directional antenna SMA black, transparent
- 2 dBi
- 0,694 - 0.96/1.71 - 2.7 GHz
- 50 Ohm
- Linear polarization
Technical specifications
- Frequency range 0,694 - 0.96/1.71 - 2.7 GHz
- Impedance: 50 ohm
- Cable type: RG-316U
- Product type
LTE antenna
- Gain
2 dBi
- Wi-Fi frequency band
2.4 GHz
- Used at
Outdoors
- Antenna socket
SMA plug
- Antenna socket
SMA plug
- Weight
0.16
- No. of ports
1
- Mounting type
Screw fastening
- Polarisation
Linear
Vertical
- Width
50 mm
- Height
48 mm
- Length
250 cm
- Cable design
Round
- Cable length
3 m
- Version
Cable
- Factory colour
Black
Transparent
- Depth
50 mm
IP67
- Cable use
C13/C14 appliances
- Material (details)
Acrylonitrile butadiene styrene (ABS)
Cable
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3381229 Delock 89589 89589 LTE antenna 2 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3381229 Delock 89589 89589 LTE antenna 2 dBi 2.4 GHz
Description
This Delock LTE antenna allows multiple LTE tapes to be used indoors and outdoors. It is completely GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz compatible.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- Frequency range:
- 694 - 960 MHz
- 1710 - 2700 MHz
- GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, LoRa 868 MHz / 915
- MHz
- Antenna gain 2 dBi
- Impedance: 50 ohm
- VSWR: 2.0 - 3.0
- Polarisation: linear, vertical
- Screw mounting with 12 mm bore
- Operating temperature: -10 °C ~ 55 °C
- ABS casing material
- Colour, black
- IP67 protection class
- Cable type: Coaxial
- Cable type: RG-316U
- Cable color: Transparent
- Cable attenuation: 0.95 dB @ 1 GHz per meter
- Cable diameter: Approx. 2.5 mm
- Cable length approx. 3 m
- Dimensions (LxD): Approx. 48 x 50 mm
System requirements
- Device with a free SMA socket
