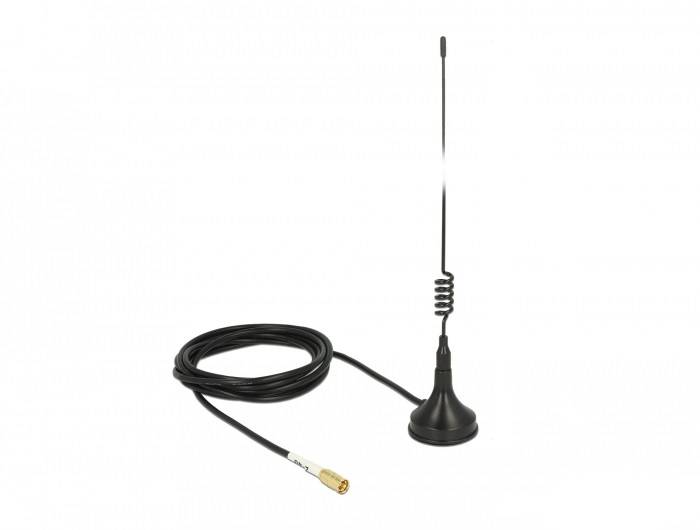

Delock 89612 89612 Wi-Fi antenna 2 dBi 2.4 GHz
EAN:
Part number:
Item no:
Highlights & Details
Delock 89612 Network-Antenna 2 dBi
- 2 dBi
- 2.4 ~ 2.5 GHz
- 50 Ohm
Technical specifications
- 2.4 - 2.5 GHz
- Impedance: 50 ohm
- Product type
Wi-Fi antenna
- Gain
2 dBi
- Type
Monopole antenna
- Wi-Fi frequency band
2.4 GHz
- Antenna socket
SMA plug
- Antenna socket
SMB plug
- Weight
0
- No. of ports
1
- Mounting type
Magnetic base
- Polarisation
Linear
- Width
29.5 mm
- Height
24.6 cm
- Length
1.5 m
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3383579 Delock 89612 89612 Wi-Fi antenna 2 dBi 2.4 GHz
Description
This Delock antenna allows you to use the 2.4 GHz band indoors and outdoors. It is fully compatible with Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz and ISM 2.4 GHz.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMB plug
- Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz, ISM 2.4 GHz
- Frequency range: 2.4 - 2.5 GHz.
- Antenna gain 2 dBi
- Impedance: 50 ohm
- VSWR: ≤2.0
- Polarisation: Linear
- Operating temperature -40 °C ~ 85 °C
- Colour, black
- Cable type: Coaxial
- Cable type: RG-174
- Cable color: Black
- Cable diameter: Approx. 2.7 mm
- Cable attenuation: 1.5 dB @ 1.5 GHz per meter
- Minimum bend radius: Approx. 10.5 mm
- Cable length incl. connections: Approx. 1.5 m.
- Antenna length incl. magnetic base: Approx. 24.6 cm
- Diameter of magnetic base: Approx. 29.5 mm
System requirements
- Device with a free SMB socket
