Delock 89618 Internal antenna LTE
EAN:
Part number:
Item no:
Datasheet (PDF)

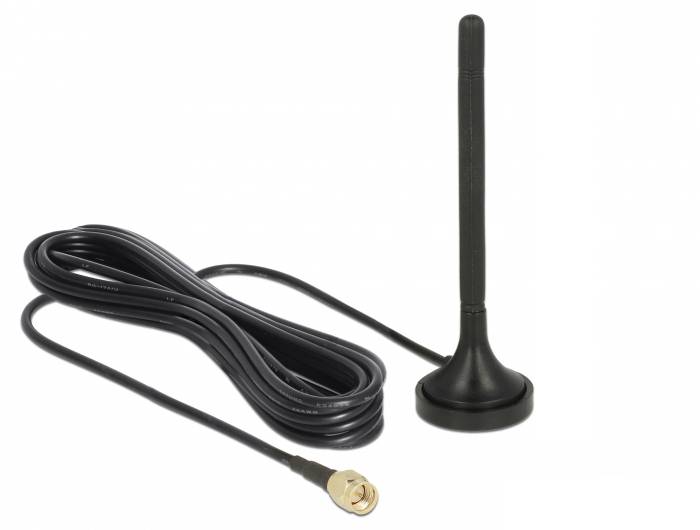

LTE antenna SMA plug 2 dBi solid omnidirectional with magnetic stand and connection cable RG-174 3 m outdoor black
Highlights & Details
Technical specifications
- Cable type: RG-174
- Product type
Mobile phone antenna
- Mobile phone standard
LTE
- Factory colour
Black
- Gain
2 dBi
- Antenna type
Internal antenna
- Suitable for mains
LTE
- Width
32.8 mm
- Height
110.8 mm
- Cable length
3 m
- Version
Adapter
- Cable use
Networks
- Weight
0.051
- UKCA
yes
- Operating temperature (T-T)
-20 - 85 °C
- Antenna gain level (max)
2 dBi
- Impedance
50 Ohm
- Diameter
3.28 cm
Documents & Downloads
Datasheet
Datasheet 3382116 Delock 89618 Internal antenna LTE
User & Safety Instructions
User & Safety Instructions 3382116 Delock 89618 Internal antenna LTE
Description
The antenna from Delock enables the use of different LTE, GSM and UMTS bands indoors and outdoors. It is fully LTE, GSM, UMTS, ZigBee, DECT, Z-Wave and NB-IoT compatible
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- LTE, GSM, UMTS, ZIGBEE, DECT NB-IoT, Z-Wave, LoRa
- Frequency range:
- 824 - 960 MHz
- 1710 - 2170 MHz
- Antenna gain 2 dBi
- Impedance: 50 ohm
- VSWR: ≤2.0
- Polarisation: Linear
- Operating temperature -40 °C ~ 85 °C
- Colour, black
- Cable type: Coaxial
- Cable type: RG-174
- Cable color: Black
- Cable diameter: Approx. 2.9 mm
- Cable attenuation: 1.5 dB @ 1.5 GHz per meter
- Minimum bend radius: Approx. 10.5 mm
- Antenna length incl. magnetic base: Approx. 110.8 mm
- Cable length incl. connections: Approx. 3.0 m.
- Diameter of magnetic base: Approx. 32.8 mm
System requirements
- Device with a free SMA socket
