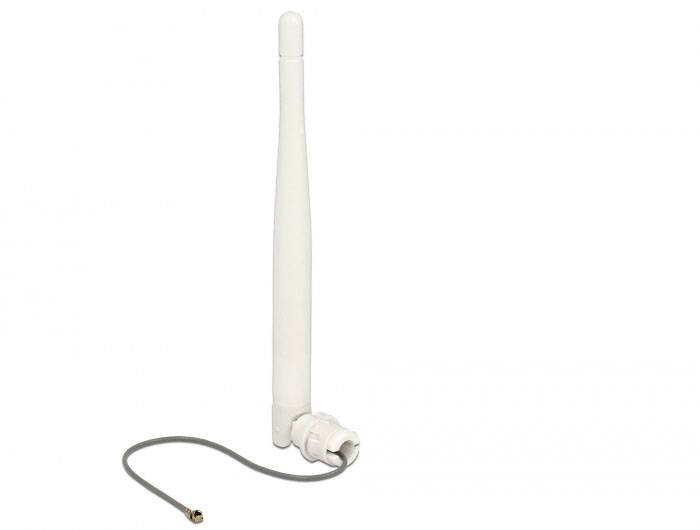

Delock 89619 89619 Wi-Fi antenna 3 dBi 2.4 GHz
EAN:
Part number:
Item no:
Highlights & Details
Delock 89619 network antenna MHF 3 dBi
- MHF white
- 3 dBi
- 2.4 ~ 2.5 GHz
- 50 Ohm
- Linear Polarisation Male
Technical specifications
- 2.4 - 2.5 GHz
- Impedance: 50 ohm
- Product type
Wi-Fi antenna
- Gain
3 dBi
- Type
Monopole antenna
- Wi-Fi frequency band
2.4 GHz
- Antenna socket
IPEX plug
- Weight
0
- No. of ports
1
- Polarisation
Linear
Vertical
- Height
132 mm
- Length
13.2 cm
- Cable design
Round
- Cable length
0.12 m
- Version
Cable
- Factory colour
White
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-10 - 60 °C
- Quantity per pack
1 Stück(e)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3383577 Delock 89619 89619 Wi-Fi antenna 3 dBi 2.4 GHz
Description
This Delock antenna allows you to use the 2.400 GHz band indoors and outdoors. It is fully compatible with Bluetooth, WLAN 2.400 GHz, ZigBee 2.400 GHz and ISM 2.400 GHz.
This text is machine translated.
This text is machine translated.
Features
- Connection: 1 x I-PEX Inc., MHF® I plug
- Bluetooth, WLAN 2.400 GHz, ZigBee 2.400 GHz, ISM 2.400 GHz
- Frequency range 2.400 - 2.500 GHz
- Antenna gain 3 dBi
- Impedance: 50 ohm
- VSWR: ≤2.0
- Polarisation: linear, vertical
- Operating temperature: -10 °C ~ 60 °C
- Colour: white
- Cable type: Coaxial
- Cable type 1.13
- Cable color: Grey
- Cable attenuation: 3.2 dB @ 2.4 GHz per meter
- Cable length incl. connections: Approx. 12 cm

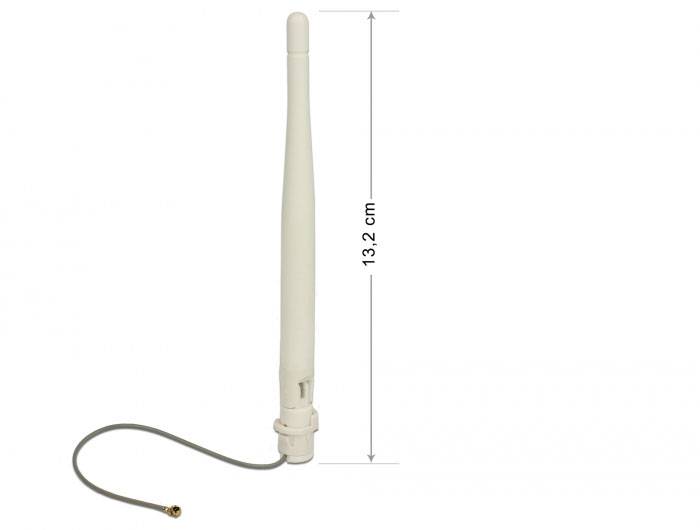

- Antenna length: Approx. 13.2 cm
System requirements
- Device with a free I-PEX Inc., MHF® I jack
