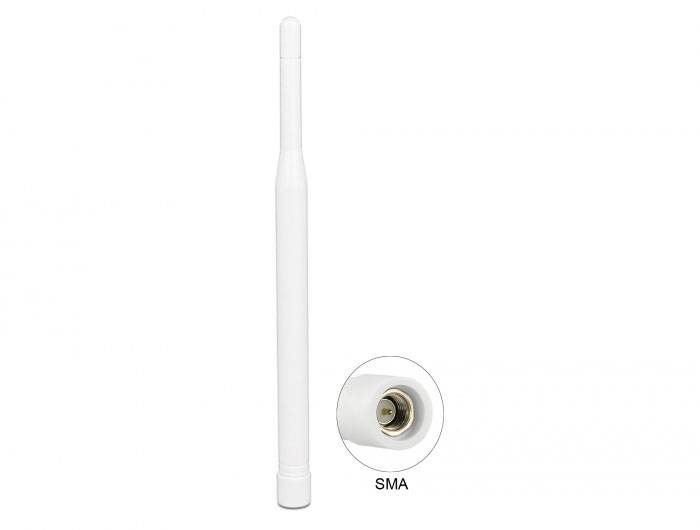

Delock 89622 89622 LTE antenna 2.9 dBi 2.4 GHz
EAN:
Part number:
Item no:
Highlights & Details
Delock 89622 network-antenna SMA 2.9 dBi
- SMA white
- 2.9 dBi
- 0.88 – 0.96, 1.71 – 1.88, 1.85 – 1.9, 2.11 – 2.17 GHz
- 50 Ohm
- Linear Polarisation Male
Technical specifications
- 0.88 - 0.96, 1.71 - 1.88, 1.85 - 1.9, 2.11 - 2.17 GHz
- Impedance: 50 ohm
- Product type
LTE antenna
- Gain
2.9 dBi
- Type
Monopole antenna
- Wi-Fi frequency band
2.4 GHz
- Used at
Indoors
- Antenna socket
SMA plug
- Antenna socket
SMA plug
- Weight
0
- No. of ports
1
- Polarisation
Linear
Vertical
- Height
190 mm
- Length
19 cm
- Factory colour
White
- Material (details)
Rubber
- UKCA
yes
- Operating temperature (T-T)
-20 - 70 °C
- Quantity per pack
1 Stück(e)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3383576 Delock 89622 89622 LTE antenna 2.9 dBi 2.4 GHz
Description
The Delock antenna allows you to use various LTE bands indoors. It is fully GSM, UMTS, LTE, ZigBee 928 MHz, DECT, Compatible with NB-IoT, Z-Wave and LoRa 915 MHz.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- GSM, UMTS, LTE, ZigBee 928 MHz, DECT, NB-IoT, Z-Wave, LoRa 915 MHz
- Frequency range:
- 880 - 960 MHz
- 1710 - 1880 MHz
- 1850 - 1990 MHz
- 2110 - 2170 MHz
- Antenna gain 0.3 - 2.9 dBi
- Impedance: 50 ohm
- VSWR: 2.5 (824 - 1990 MHz) ; 3.0 (2110 - 2170 MHz)
- Polarisation: linear, vertical
- Operating temperature: -20 °C ~ 70 °C
- Housing material: Rubber
- Colour: white

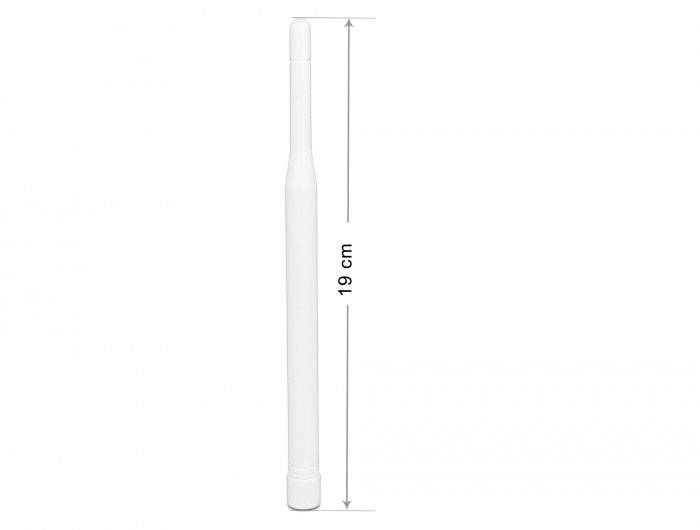

- Antenna length: Approx. 19 cm
- Thread diameter: Approx 11.7 mm
System requirements
- Device with a free SMA socket
