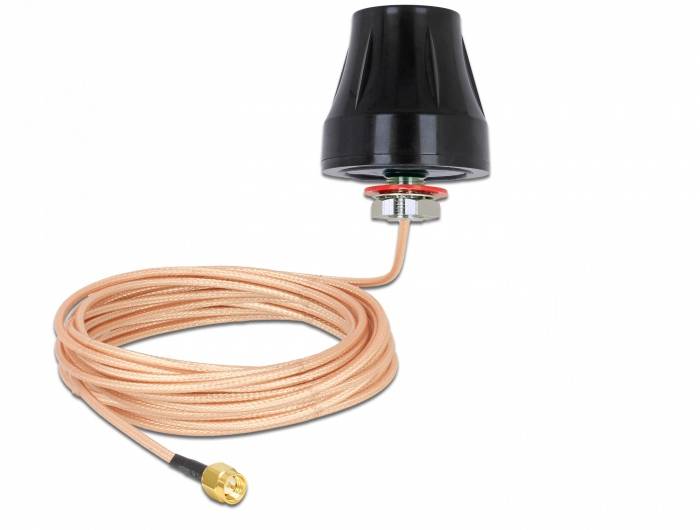

Delock 89899 Internal antenna
EAN:
Part number:
Item no:
LTE antenna SMA plug 2 dBi solid directional with connection cable (RG-316U 5 m) outdoor black
Highlights & Details
Technical specifications
- Cable type: RG-316U
- Product type
Mobile phone antenna
- Mobile phone standard
LTE
- Factory colour
Black
- Gain
2 dBi
- Antenna type
Internal antenna
- Width
50 mm
- Height
48 mm
- Cable design
Round
- Cable length
5 m
- Version
Cable
IP67
- Cable use
C13/C14 appliances
- Weight
0.19
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Antenna gain level (max)
2 dBi
- Impedance
50 Ohm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381269 Delock 89899 Internal antenna
Description
This Delock LTE antenna allows multiple LTE tapes to be used indoors and outdoors. It is completely GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz compatible.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- Frequency range:
- 694 - 960 MHz
- 1710 - 2700 MHz
- GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, LoRa 868 MHz / 915
- MHz
- Antenna gain 2 dBi
- Impedance: 50 ohm
- VSWR: 2.0 - 3.0
- Polarisation: linear, vertical
- Screw mounting with 12 mm bore
- Operating temperature: -10 °C ~ 55 °C
- ABS casing material
- Colour, black
- IP67 protection class
- Cable type: Coaxial
- Cable type: RG-316U
- Cable color: Transparent
- Cable attenuation: 0.95 dB @ 1 GHz per meter
- Cable diameter: Approx. 2.5 mm
- Cable length approx. 5 m
- Dimensions (LxD): Approx. 48 x 50 mm
System requirements
- Device with a free SMA socket
