Delock 89910 Low power connector Socket, built-in 5.5 mm 2.1 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Low power connector
Connector type
Socket, built-in
Nominal current - rounded value
3 A
Outside Ø
5.5 mm
Inside diameter
2.1 mm
Datasheet (PDF)
Delock Plug connector DC 5.5 x 2.1 x 9.5 mm Socket for installation of solder version
Highlights & Details
- 5.5 mm
- 2.1 mm
Technical specifications
- Product type
Low power connector
- Nominal current
3 A
- Connector type
Socket, built-in
- Nominal current - rounded value
3 A
- Outside Ø
5.5 mm
- Inside diameter
2.1 mm
- Connection
Soldering
- Nominal voltage
16 V DC
- Content
1 pc(s)
- Manufacturer part #
89910
- Type
89910
- Factory colour
Multicolour
- Shaft length
9.5 mm
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Connection type
DC (current)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3381306 Delock 89910 Low power connector Socket, built-in 5.5 mm 2.1 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3381306 Delock 89910 Low power connector Socket, built-in 5.5 mm 2.1 mm 1 pc(s)
Description
Description

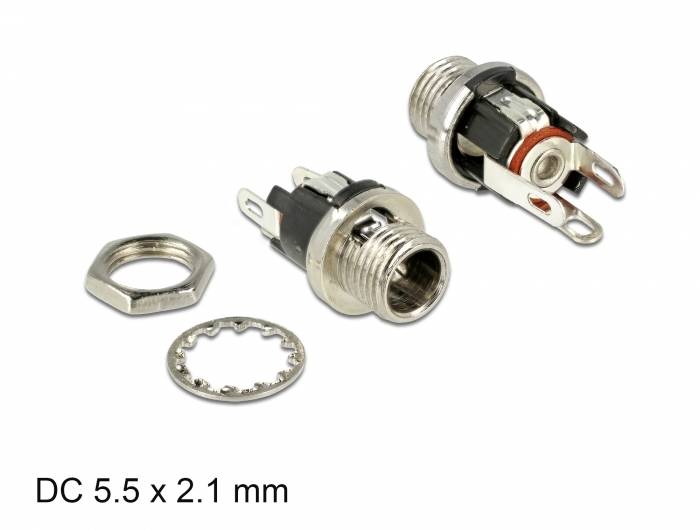

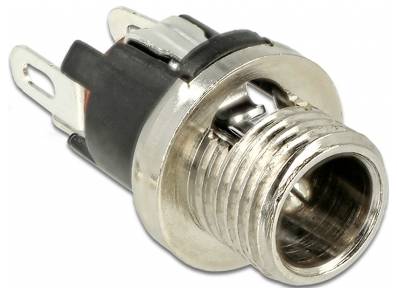

This DC mounting socket from Delock is used for cabling or installation in a casing or device, in order to supply it with power.
Technical data
Connections:
1 x DC 5.5 x 2.1 x 9.5 mm socket >

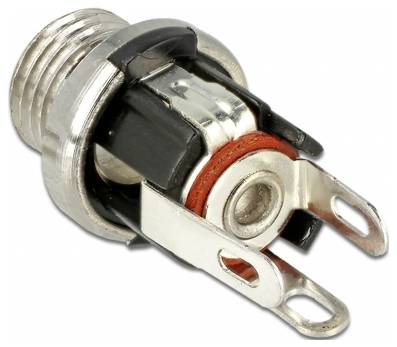

3 x solder connections
Operating voltage: 16 V DC
Current strength max. 3 A
Plastic housing PBT
Pin: Nickel-plated copper

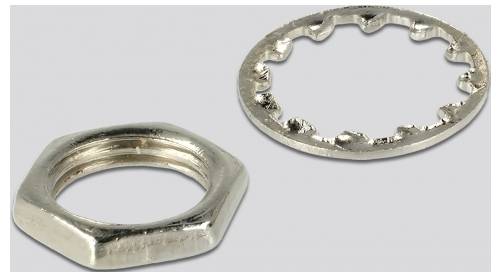

Thread type M8*P0.75
Installation depth about 15.5 mm
Visible height when built in: Approx. 5.7 mm
Specification of the power connection
Dimensions:
inner: ø approx. 2.1 mm
outer: ø approx. 5.5 mm
Depth: Approx. 9.5 mm
Package contents
DC mounting socket
Packaging
Resealable bag
