Delock 89913 Low power connector Plug, mount 5.5 mm 2.1 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Low power connector
Connector type
Plug, mount
Nominal current - rounded value
2 A
Outside Ø
5.5 mm
Inside diameter
2.1 mm
Datasheet (PDF)
Delock connector DC 5.5 x 2.1 mm with length 9.5 mm hollow plug soldered version
Highlights & Details
- 5.5 mm
- 2.1 mm
Technical specifications
- Product type
Low power connector
- Nominal current
2 A
- Connector type
Plug, mount
- Nominal current - rounded value
2 A
- Outside Ø
5.5 mm
- Inside diameter
2.1 mm
- Connection
Soldering
- Nominal voltage
18 V DC
- Content
1 pc(s)
- Manufacturer part #
89913
- Type
89913
- Factory colour
Multicolour
- Shaft length
9.5 mm
- Cable design
Round
- Cable length
0.009 m
- Version
Cable
- Cable use
C13/C14 appliances
- Connection type
DC (current)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3381312 Delock 89913 Low power connector Plug, mount 5.5 mm 2.1 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3381312 Delock 89913 Low power connector Plug, mount 5.5 mm 2.1 mm 1 pc(s)
Description
Description

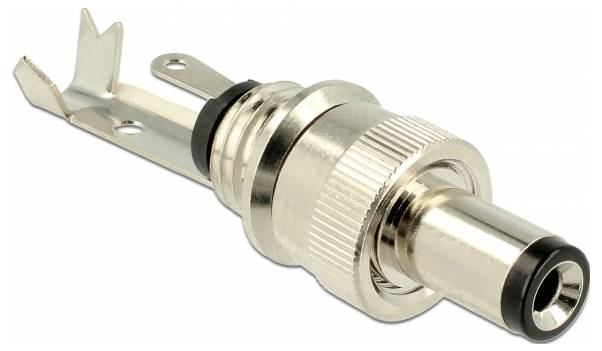

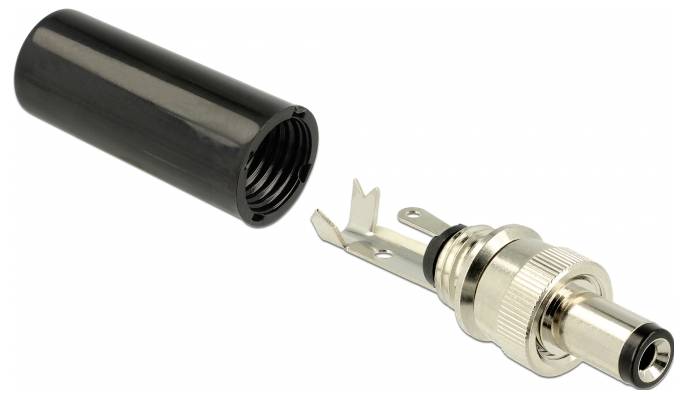

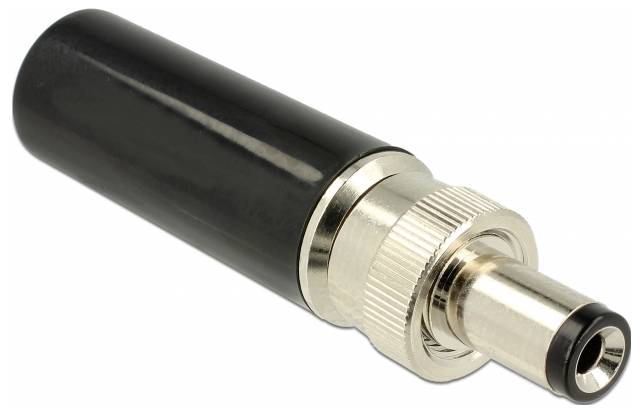

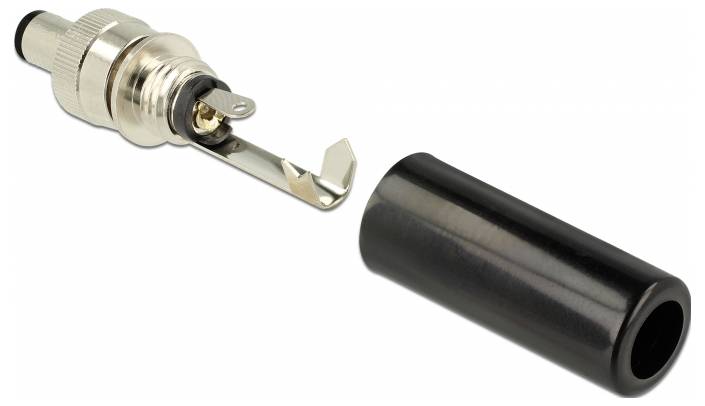

This DC plug connector from Delock is used for soldering a cable and can be used for connection to Diverser devices with 5.5 x 2.1 mm DC socket. The screw connection on the plug provides a permanent connection with the suitable DC sockets of Delock, e.g. Article 89911.
Technical data
Connections:
1 x DC 5.5 x 2.1 x 9.5 mm plug >
1 x solder connections
Insulation resistance 100 MΩ / min. (500 V DC)
Max. voltage 18 V
Current strength max. 2 A
Length approx. 39.5 mm
Diameter approx. 10.6 mm

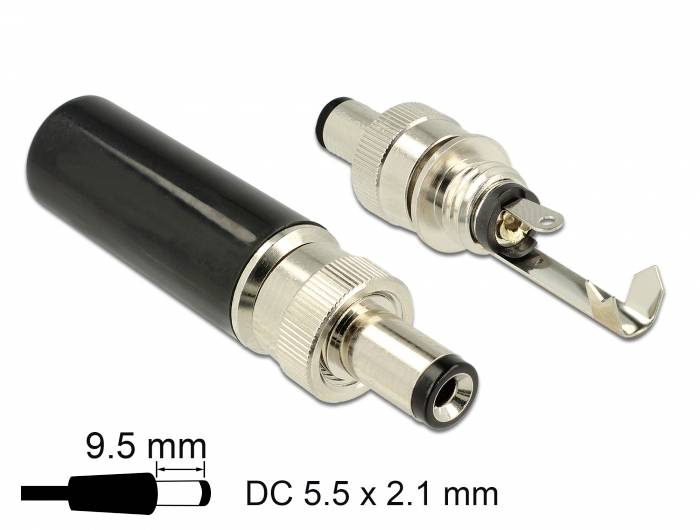

Specification of the power connection
Dimensions:
inner: ø approx. 2.1 mm
outer: ø approx. 5.5 mm
Length approx. 9.5 mm
System requirements
A free DC socket 5.5 x 2.1 x 9.5 mm
Package contents
DC plug connector
Packaging
Resealable bag
