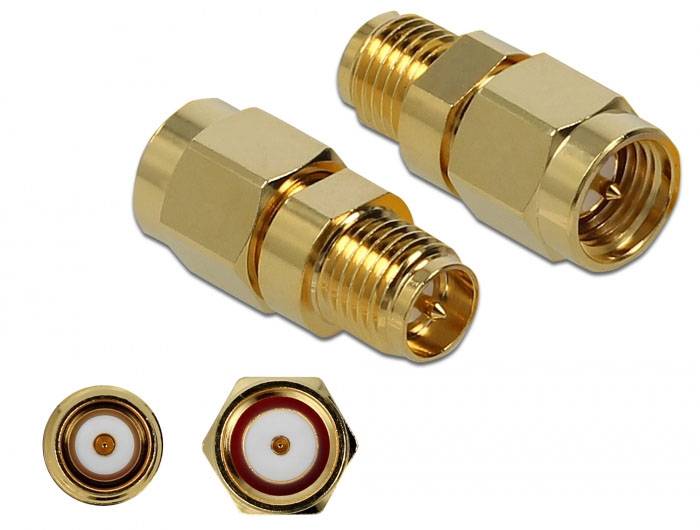

Delock 89973 89973 SMA adapter SMA plug - RPSMA socket 1 pc(s)
EAN:
Part number:
Item no:
Product type
SMA adapter
Type A
SMA plug
Type B
RPSMA socket
Connector type
Adapter
Impedance
50 Ω
Datasheet (PDF)
Adapter SMA plug to RP-SMA socket 10 GHz
Highlights & Details
- SMA plug - RPSMA socket
Technical specifications
- Product type
SMA adapter
- Type A
SMA plug
- Type B
RPSMA socket
- Connector type
Adapter
- Impedance
50 Ω
- Content
1 pc(s)
- Max. frequency
10 GHz
- Case material
Brass gold plated
- Manufacturer part #
89973
- Factory colour
Gold
- Type
89973
- Version
Adapter
- Depth
17.2 mm
- UKCA
yes
- Operating temperature (T-T)
-10 - 50 °C
- Impedance
50 Ohm
- Quantity per pack
1 Stück(e)
- Outer diameter
8 mm
Documents & Downloads
Datasheet
Datasheet 3382509 Delock 89973 89973 SMA adapter SMA plug - RPSMA socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3382509 Delock 89973 89973 SMA adapter SMA plug - RPSMA socket 1 pc(s)
Description
This adapter by Delock is suitable for connection of components of the high-frequency technology.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x SMA plug
- 1 x RP-SMA socket
- Housing: Gold-plated brass
- Thread type: 1/4″ - 36 US - 2A
- Internal thread: 1/4″ - 36 US - 2B
- Frequency range, 10 GHz
- Impedance: 50 ohm
- Operating temperature: -10 °C ~ 50 °C
- Dimensions (LxD): Approx. 18.1 x 7.0 mm
System requirements
- Device with a free SMA or RP-SMA connection
