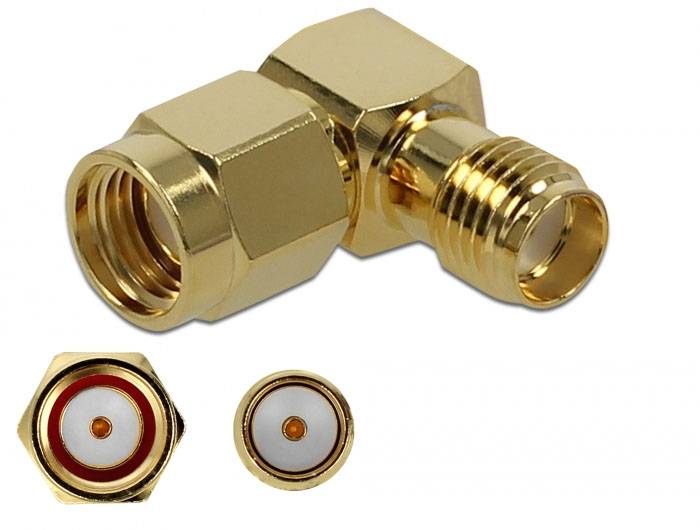

Delock 89978 89978 HF adapter RPSMA plug - SMA socket 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
HF adapter
Type A
RPSMA plug
Type B
SMA socket
Connector type
Adapter
Highlights & Details
Adapter RP-SMA plug to SMA socket 90° 10 GHz
- RPSMA plug - SMA socket
Technical specifications
- Connection 1 RP-SMA
- Connection 2: SMA
- Packaging type
Piece
- Product type
HF adapter
- Type A
RPSMA plug
- Type B
SMA socket
- Connector type
Adapter
- Impedance
50 Ω
- Content
1 pc(s)
- Max. frequency
10 GHz
- Case material
Brass gold plated
- Manufacturer part #
89978
- Factory colour
Gold
- Insulation material
Brass gold plated
- Type
89978
- Version
Adapter
- Depth
15.1 mm
- Width
16.5 mm
- Weight
0.02
- UKCA
yes
- Operating temperature (T-T)
-10 - 50 °C
- Impedance
50 Ohm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3383532 Delock 89978 89978 HF adapter RPSMA plug - SMA socket 1 pc(s) Piece
Description
This adapter by Delock is suitable for connection of components of the high-frequency technology.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x RP-SMA plugs
- 1 x SMA Bush 90°
- Housing: Gold-plated brass
- Internal thread: 1/4″ - 36 US - 2B
- Frequency range, 10 GHz
- Impedance: 50 ohm
- Operating temperature: -10 °C ~ 50 °C
- Dim. (LxB): Approx. 16.5 x 15.1 mm
System requirements
- Device with a free SMA or RP-SMA connection
