Delock 90014 90014 BNC connector Socket 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Cable category
RG 174
Product type
BNC connector
Connector type
Socket
Connection
BNC
Datasheet (PDF)
Highlights & Details

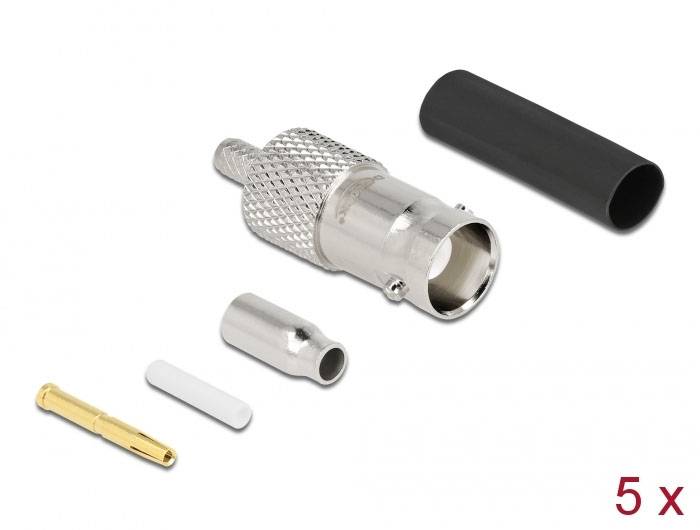

BNC socket for crimping RG-174 / RG-316 with suitable shrink hose - 5 pieces
- Connection type: BNC
- Connector 1 Gender: Female
- 50 Ohm
- silver
- 5 pieces(s)
Technical specifications
- Packaging type
Piece
- Cable category
RG 174
- Product type
BNC connector
- Connector type
Socket
- Connection
BNC
- Content
1 pc(s)
- Case material
Brass nickel plated
- Manufacturer part #
90014
- Length
30.3 mm
- Type
90014
- Cable design
Round
- Version
Cable
- Factory colour
Silver
- Depth
30.3 mm
- Height
11.3 mm
- Width
11.3 mm
- Cable use
C13/C14 appliances
- Weight
0.000
- UKCA
yes
- Impedance
50 Ohm
- Quantity per pack
5 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3383507 Delock 90014 90014 BNC connector Socket 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3383507 Delock 90014 90014 BNC connector Socket 1 pc(s) Piece
Description
This socket including suitable heat-shrink tubing from Delock is suitable for connecting components of high-frequency technology.
This text is machine translated.
This text is machine translated.
Features
- 1 x BNC socket for crimping
- RG-174 / RG-316 cable type
- Housing: Nickel-plated brass
- Impedance: 50 ohm
- Frequency range DC - 500 MHz
- Dimensions (LxWxH):
- Connection: Approx. 30.3 x 11.3 x 11.3 mm
- Heat shrink tubing: Approx. 25 x 6 x 6 mm
System requirements
- Coaxial cable suitable for crimping
