Delock 90022 90022 N connector Plug 1 pc(s)
EAN:
Part number:
Item no:
Cable category
LMR 400
Product type
N connector
Connector type
Plug
Connection
Crimp
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details

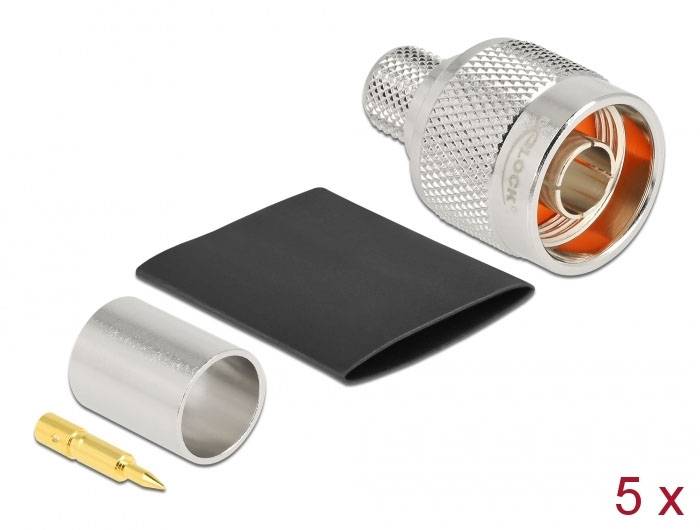

N plug for crimping LMR 400 with suitable shrink hose - 5 pieces
- Connection type N-type
- 50 Ohm
- silver
- 5 pieces(s)
Technical specifications
- Cable category
LMR 400
- Product type
N connector
- Connector type
Plug
- Connection
Crimp
- Content
1 pc(s)
- Case material
Brass nickel plated
- Manufacturer part #
90022
- Contact material
Silver
- Length
29.6 mm
- Type
90022
- Cable design
Round
- Version
Cable
- Factory colour
Silver
- Depth
29.6 mm
- Height
20 mm
- Width
20 mm
- Cable use
C13/C14 appliances
- Weight
0.15
- UKCA
yes
- Impedance
50 Ohm
- Quantity per pack
5 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3383499 Delock 90022 90022 N connector Plug 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3383499 Delock 90022 90022 N connector Plug 1 pc(s)
Description
This plug inclusive of suitable heat shrink tubing from Delock is suitable for connecting components of high-frequency technology.
This text is machine translated.
This text is machine translated.
Features
- 1 x N plug for crimping
- Cable type LMR 400
- Housing: Nickel-plated brass
- Impedance: 50 ohm
- Frequency range DC - 8 GHz
- Dimensions (LxWxH):
- Connection: Approx. 29.6 x 20 x 20 mm
- Heat shrink tubing: Approx. 30 x 16 x 16 mm
System requirements
- Coaxial cable suitable for crimping
