Delock 90040 90040 SMA connector Plug 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
SMA connector
Connector type
Plug
Connection
SMA
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details

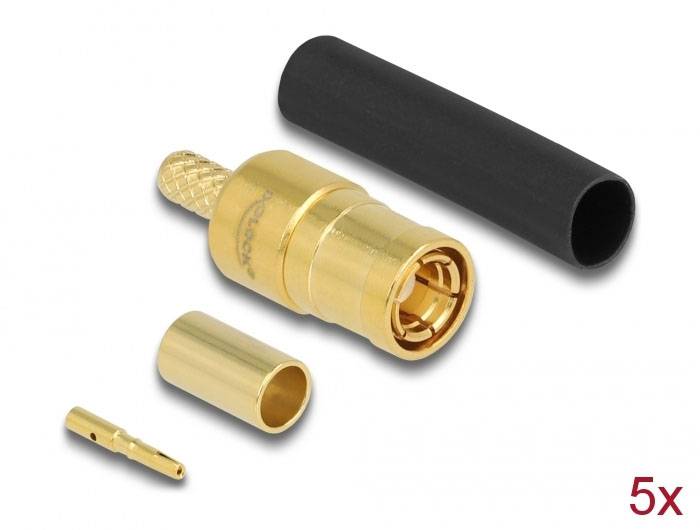

SMB plug for crimping RG-174 / RG-316 with suitable shrink hose - 5 pieces
- Connection type: SMB
- Connection 1 SMB
- Connector 1 Gender: Male
- 0 - 1000 MHz 50 ohm
- Housing material: Brass
- Gold
- 5 pieces(s)
Technical specifications
- Connection 1 SMB
- Packaging type
Piece
- Product type
SMA connector
- Connector type
Plug
- Connection
SMA
- Content
1 pc(s)
- Case material
Brass
- Manufacturer part #
90040
- Length
18.2 mm
- Type
90040
- Cable design
Round
- Version
Cable
- Factory colour
Gold
- Depth
18.2 mm
- Height
7 mm
- Width
7 mm
- Cable use
C13/C14 appliances
- Wireless charging
No
- UKCA
yes
- Impedance
50 Ohm
- Quantity per pack
5 Stück(e)
- Frequency range
0 - 1000 MHz
Documents & Downloads
Datasheet
Datasheet 3383483 Delock 90040 90040 SMA connector Plug 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3383483 Delock 90040 90040 SMA connector Plug 1 pc(s) Piece
Description
This plug inclusive of suitable heat shrink tubing from Delock is suitable for connecting components of high-frequency technology.
This text is machine translated.
This text is machine translated.
Features
- 1 x SMB plug for crimping
- RG-174 / RG-316 cable type
- Housing: Gold-plated brass
- Impedance: 50 ohm
- Frequency range DC - 1 GHz
- Dimensions (LxWxH):
- Connection: Approx. 18.2 x 7 x 7 mm
- Heat shrink tubing: Approx. 20 x 3.5 x 3.5 mm
System requirements
- Coaxial cable suitable for crimping
