Delock 90101 5G, LTE, WLAN
EAN:
Part number:
Item no:
Datasheet (PDF)

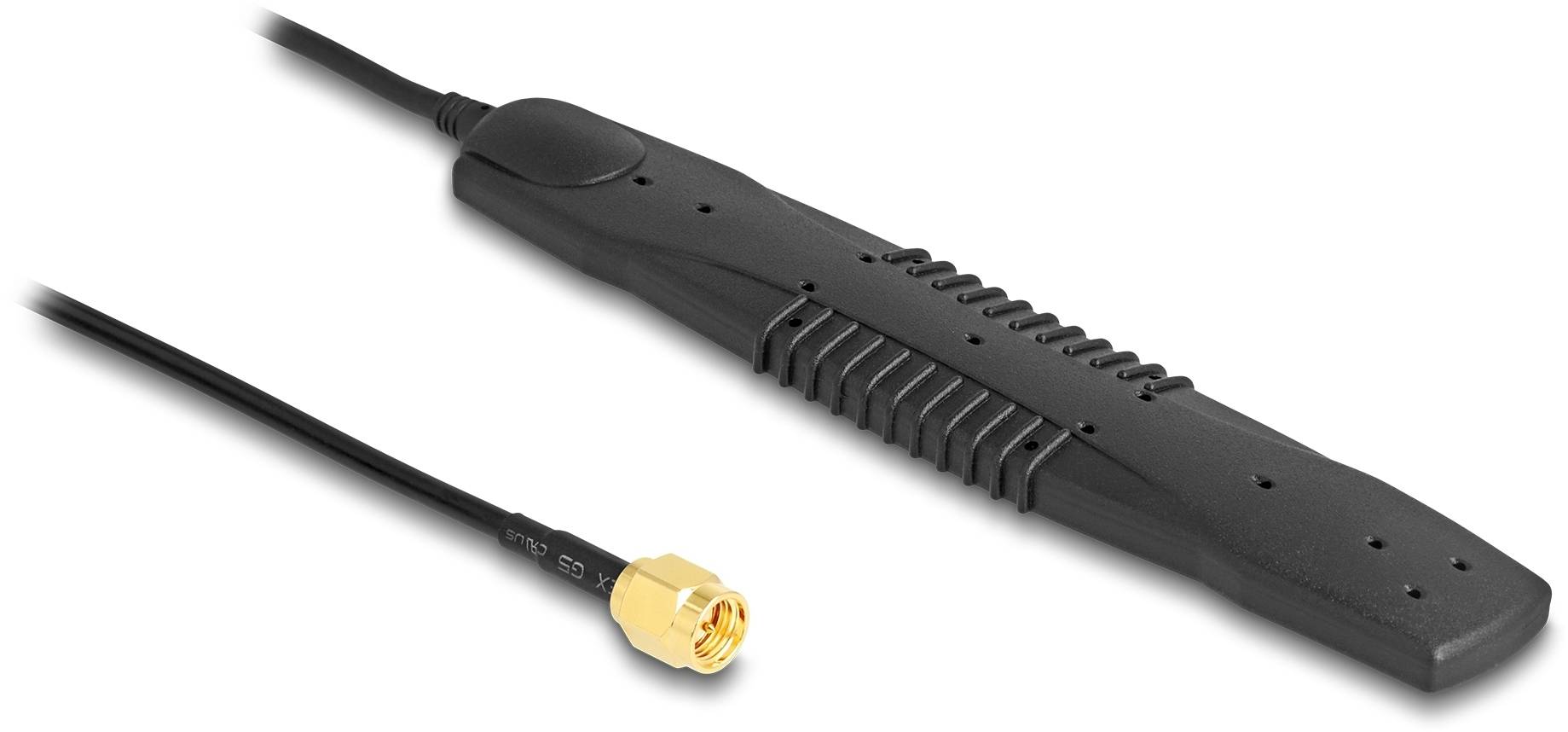

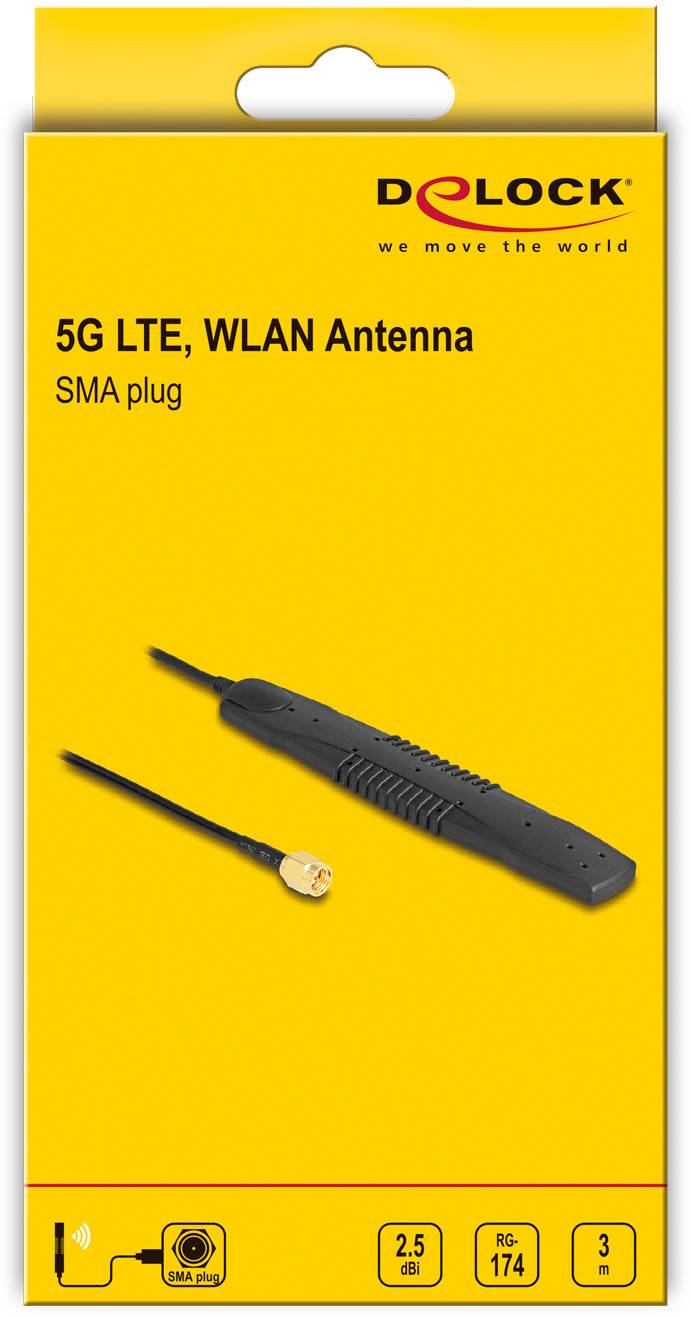

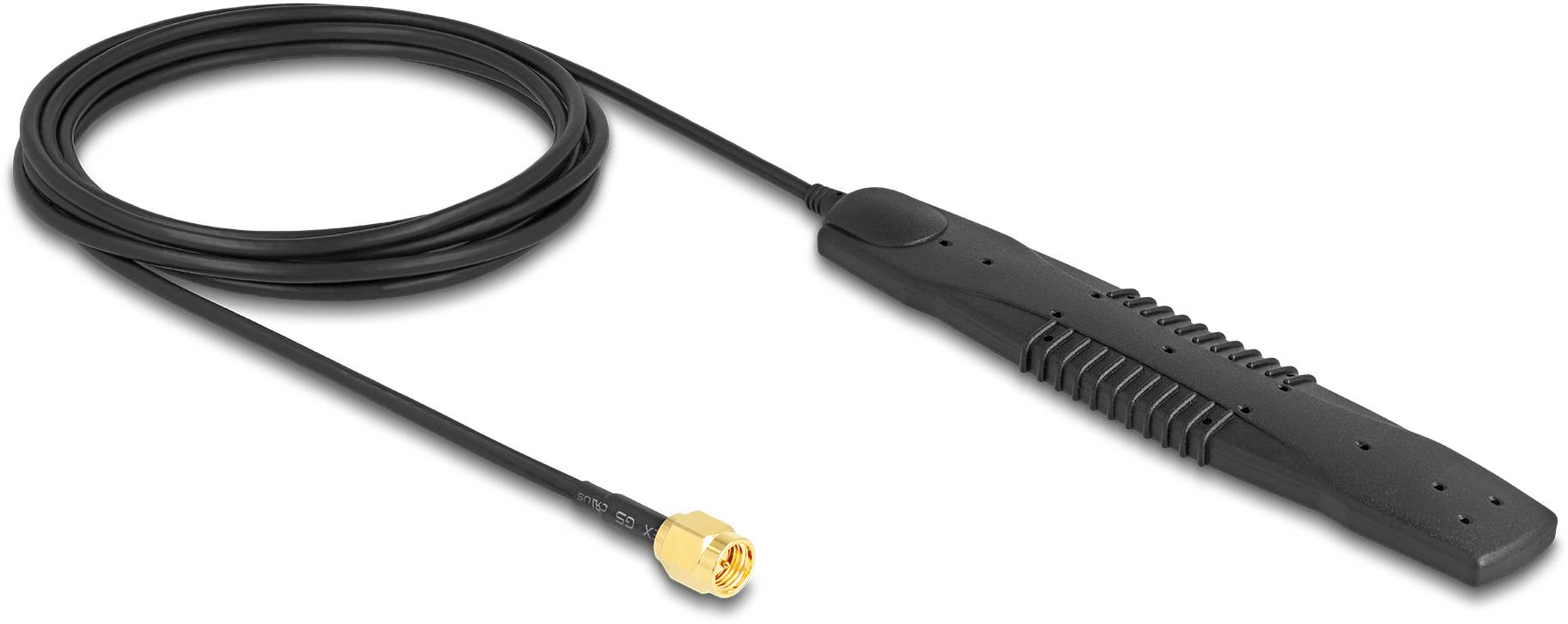

5G LTE, WLAN antenna SMA plug 2.5 dBi omnidirectional rigid black adhesive mounting
Highlights & Details
Technical specifications
- Cable type: RG-174
- Product type
Mobile phone antenna
- Mobile phone standard
5G
LTE
- Factory colour
Black
- Gain
2.5 dBi
- Length
129.5 mm
- Suitable for mains
5G
LTE
WLAN
- Width
22.8 mm
- Height
7 mm
- Cable design
Round
- Cable length
3 m
- Version
Cable
- Depth
129.5 mm
- Cable use
C13/C14 appliances
- Weight
0
- UKCA
yes
- Operating temperature (T-T)
-20 - 80 °C
- Antenna gain level (max)
2.5 dBi
- Impedance
50 Ohm
- Ultraviolet (UV) resistant
yes
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3383476 Delock 90101 5G, LTE, WLAN
User & Safety Instructions
User & Safety Instructions 3383476 Delock 90101 5G, LTE, WLAN
Description
This 5G LTE and WLAN antenna can be installed indoors and can be used to receive various bands. It is fully GSM, CDMA, GPRS, UMTS, LTE, 5G low band Sub-6 GHz, Bluetooth, WiFi, WLAN, Zigbee and ISM compatible.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- Frequency range:
- 600 MHz - 960 MHz
- 1710 MHz - 6000 MHz
- Antenna gain 2.5 dBi
- Impedance: 50 ohm
- VSWR 2.0:1
- Cable type: RG-174
- Cable attenuation: 0.9 dB @ 800 MHz per meter
- Cable color: Black
- Cable length approx. 3 m
- Operating temperature: -20 °C ~ 80 °C
- Case material: ABS UV-protected
- Dim. (LxWxH): Approx. 129.5 x 22.8 x 7.0 mm
System requirements
- Device with a free SMA socket
