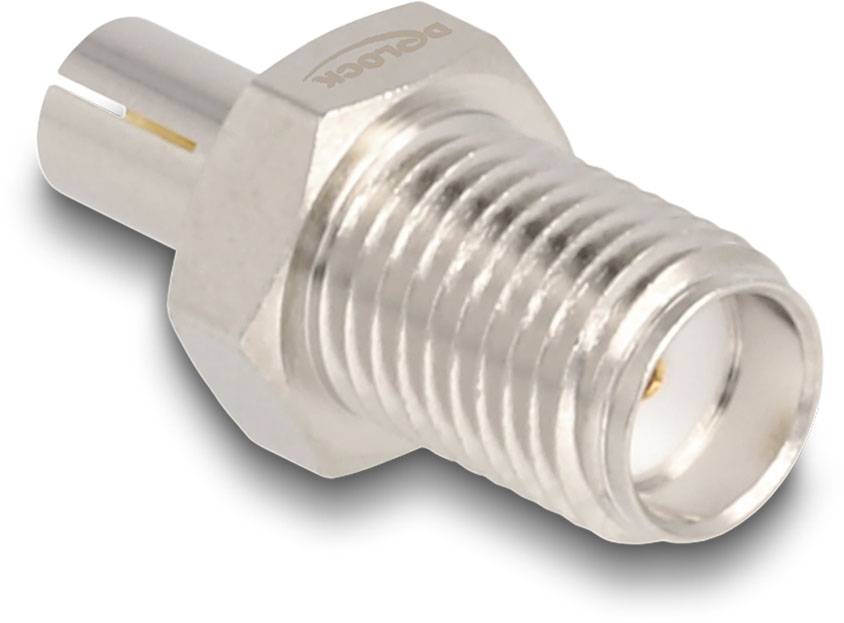

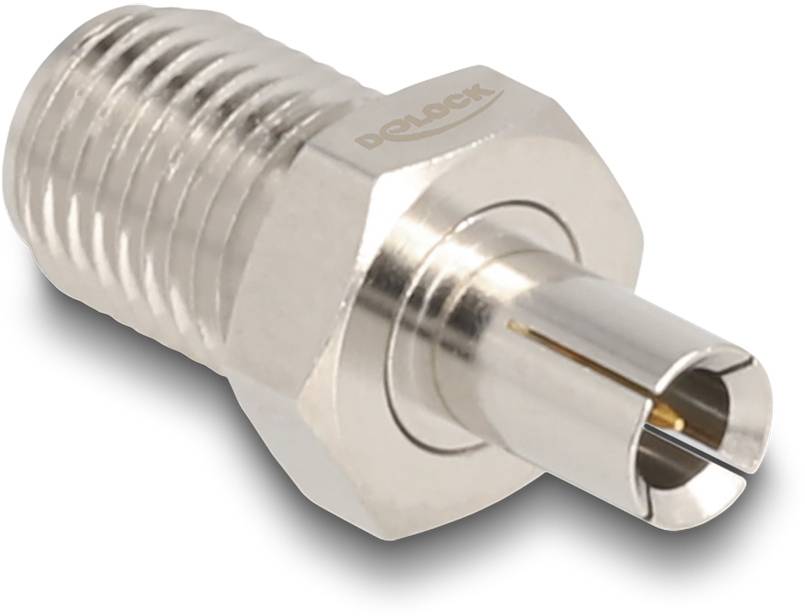

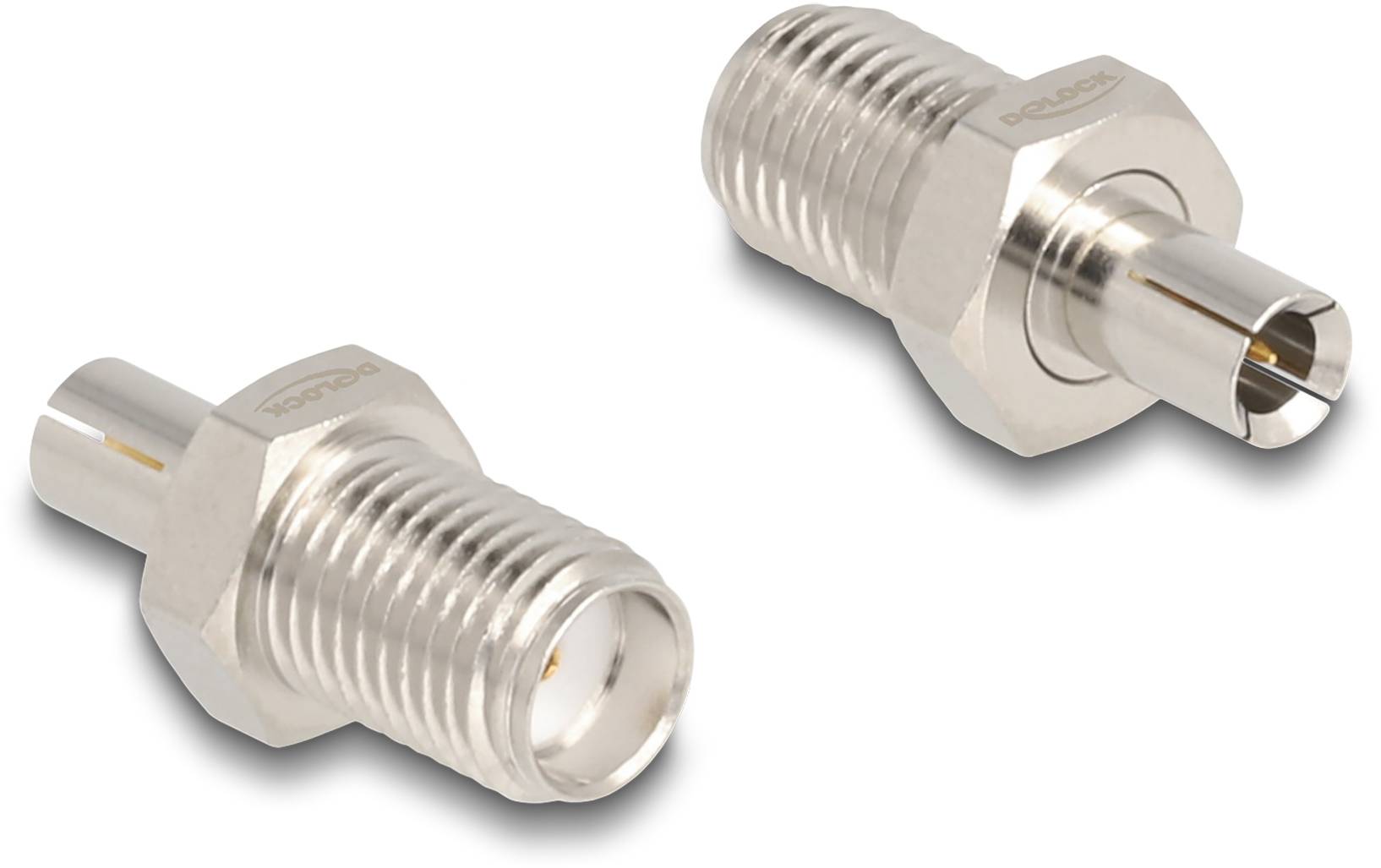

Delock 90108 90108 SMA adapter SMA socket - TS-9 plug 0.008 m 1 pc(s)
EAN:
Part number:
Item no:
Product type
SMA adapter
Type A
SMA socket
Type B
TS-9 plug
Connector type
Adapter
Impedance
50 Ω
Datasheet (PDF)
Adapter SMA bush to TS9 plug
Highlights & Details
- SMA socket - TS-9 plug
Technical specifications
- Connection 1: SMA
- Connection 2: TS9
- Sustainability Compliance: Yes
- Product type
SMA adapter
- Type A
SMA socket
- Type B
TS-9 plug
- Connector type
Adapter
- Impedance
50 Ω
- Content
1 pc(s)
- Cable length
0.008 m
- Max. frequency
4 GHz
- Case material
Brass gold plated
- Manufacturer part #
90108
- Factory colour
Silver
- Type
90108
- Cable design
Round
- Version
Cable
- Depth
16.8 mm
- Width
8 mm
- Cable use
C13/C14 appliances
- Weight
0.003
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
- Impedance
50 Ohm
- Quantity per pack
1 Stück(e)
- Outer diameter
8 mm
Documents & Downloads
Datasheet
Datasheet 3383473 Delock 90108 90108 SMA adapter SMA socket - TS-9 plug 0.008 m 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3383473 Delock 90108 90108 SMA adapter SMA socket - TS-9 plug 0.008 m 1 pc(s)
Description
This adapter by Delock is suitable for connection of components of the high-frequency technology.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x SMA socket
- 1 x TS9 plugs
- Housing: Gold-plated brass
- Thread type: 1/4″ - 36 US - 2A
- Frequency range, 4 GHz
- Impedance: 50 ohm
- Operating temperature -40 °C ~ 85 °C
- Dim. (LxB): Approx. 16.8 x 8 mm
System requirements
- Device with a free SMA or TS9 connection
