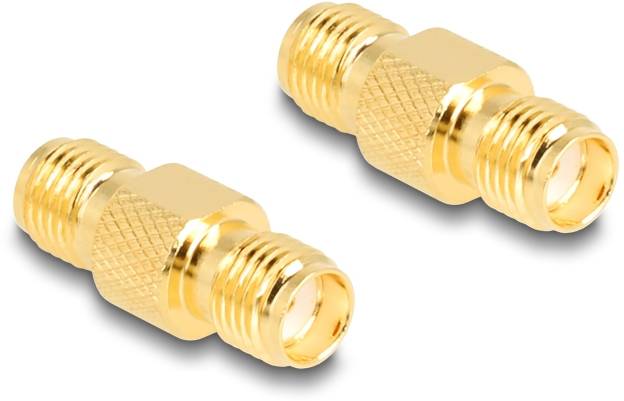

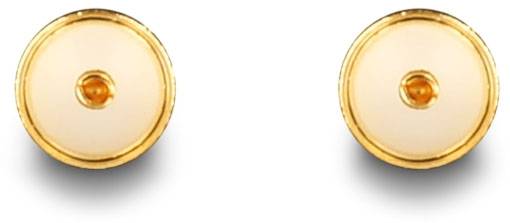

Delock 90196 90196 SMA adapter SMA socket - SMA socket 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
SMA adapter
Type A
SMA socket
Type B
SMA socket
Connector type
Adapter
Datasheet (PDF)
Highlights & Details
Adapter SMA Bush to SMA Bush HBI59-1
- SMA socket - SMA socket
Technical specifications
- Connection 1: SMA
- Connection 2: SMA
- Packaging type
Piece
- Product type
SMA adapter
- Type A
SMA socket
- Type B
SMA socket
- Connector type
Adapter
- Impedance
50 Ω
- Content
1 pc(s)
- Max. frequency
6 GHz
- Case material
Brass gold plated
- Manufacturer part #
90196
- Factory colour
Gold
- Type
90196
- Cable design
Round
- Version
Cable
- Depth
19.4 mm
- Cable use
C13/C14 appliances
- Weight
0.004
- UKCA
yes
- Impedance
50 Ohm
- Quantity per pack
1 Stück(e)
- Diameter
8 mm
Documents & Downloads
Datasheet
Datasheet 3383402 Delock 90196 90196 SMA adapter SMA socket - SMA socket 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3383402 Delock 90196 90196 SMA adapter SMA socket - SMA socket 1 pc(s) Piece
Description
This adapter by Delock is suitable for connection of components of the high-frequency technology.
This text is machine translated.
This text is machine translated.
Features
- Connection 2 x SMA socket
- Housing material: HBI59-1 gold-plated brass
- Impedance: 50 ohm
- Frequency range DC - 6 GHz
- Length 19.4 mm approx.
- Diameter approx. 8 mm
