Delock 90510 90510 Multifunction pliers RJ connectors (Western Electric) Incl. cable strippers RJ45
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Delock 90510 90510 Multifunction pliers RJ connectors (Western Electric) Incl. cable strippers RJ45
- Combination tool
- RJ-10, RJ-11, RJ-12, RJ-45
- Material grip: Plastic
- Black, Green
Technical specifications
- Product color: Black, green
- Product type
Multifunction pliers
- Manufacturer part #
90510
- Range of uses
RJ connectors (Western Electric)
- Suitable for connectors
RJ45
- Length
200 cm
- Material
Metal
- Width
69 mm
- Height
22 mm
- Weight
358 g
- Features
Incl. cable strippers
- Cable design
Round
- Cable length
0.069 m
- Version
Cable
- Factory colour
Multicolour
- Depth
190 mm
- Cable use
C13/C14 appliances
Cable
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3383283 Delock 90510 90510 Multifunction pliers RJ connectors (Western Electric) Incl. cable strippers RJ45
User & Safety Instructions
User & Safety Instructions 3383283 Delock 90510 90510 Multifunction pliers RJ connectors (Western Electric) Incl. cable strippers RJ45
Description

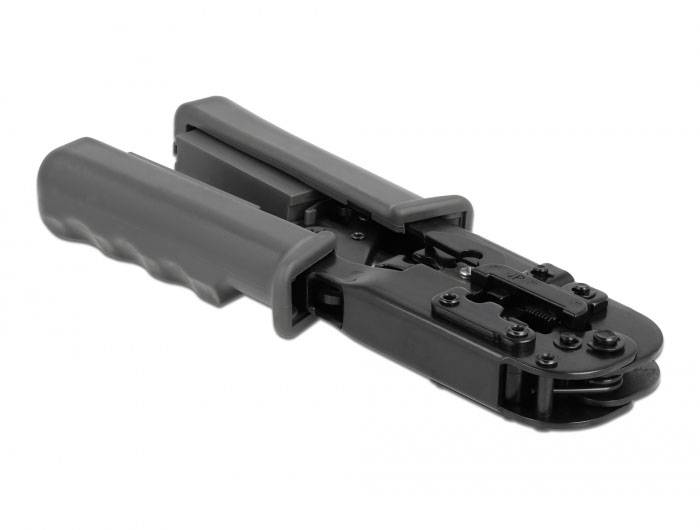

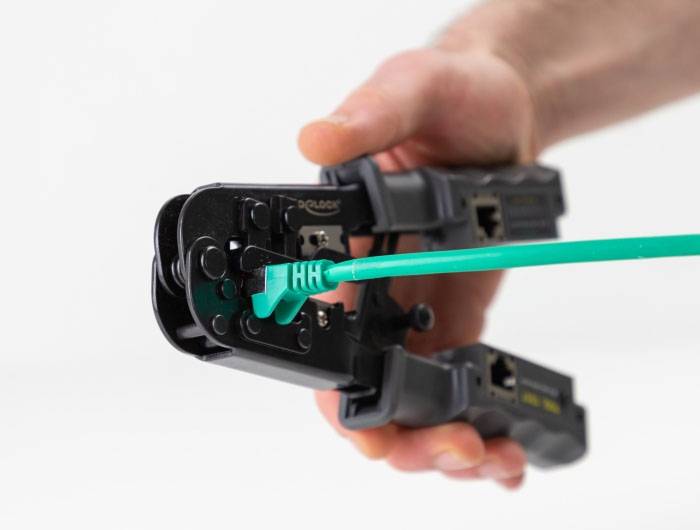

The multi-function pliers are suitable for crimping, stripping and cutting of 8P (RJ45), 6P (RJ12/11) or 4P (RJ10) plugs and cables.

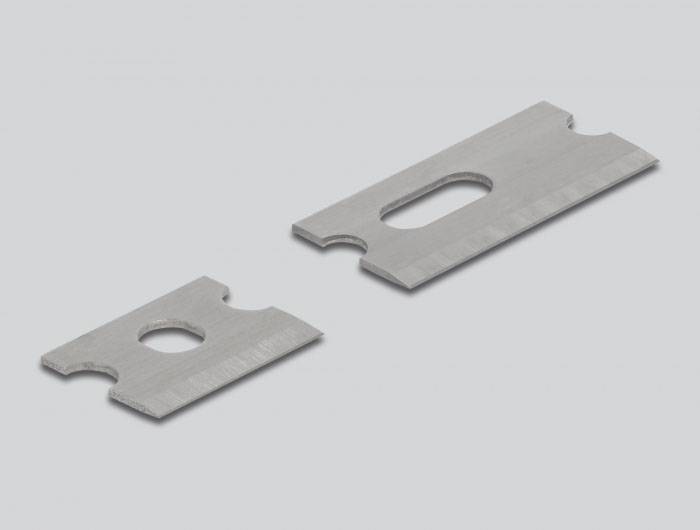

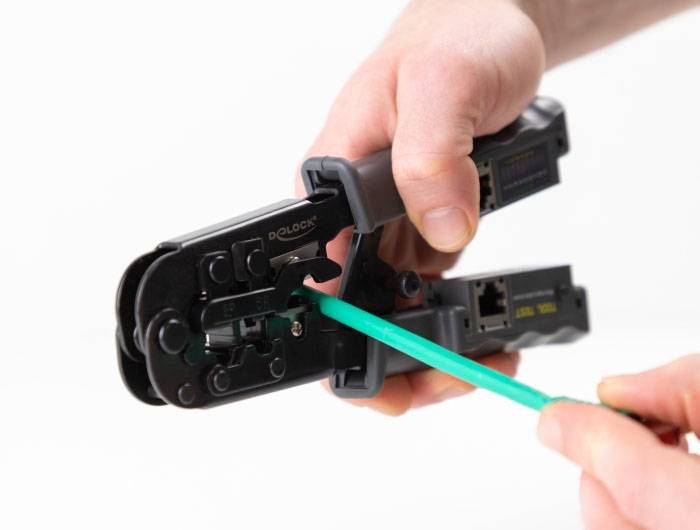

Three integrated blades ensure easy stripping of the cable or cutting the wires.

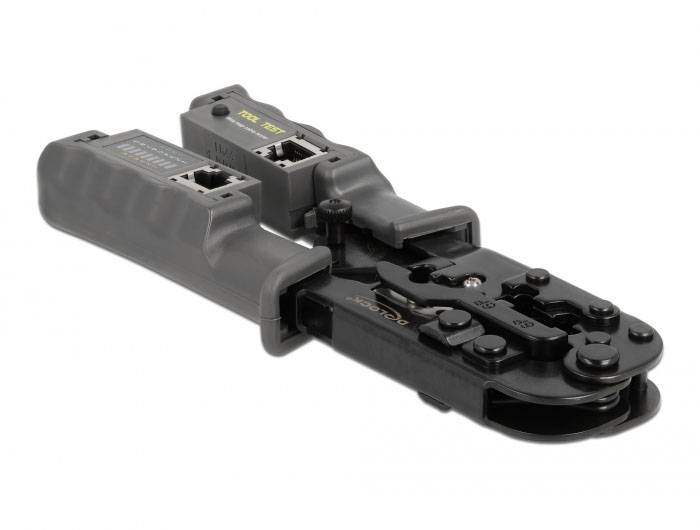

Built-in cable tester

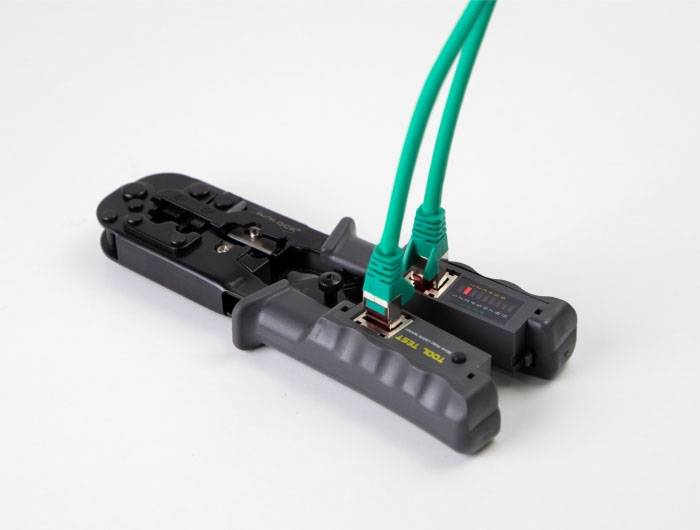

Thanks to the integrated cable tester, direct wiring can be tested after the crimping process All three types of plugs fit into the provided sockets.
LED test run

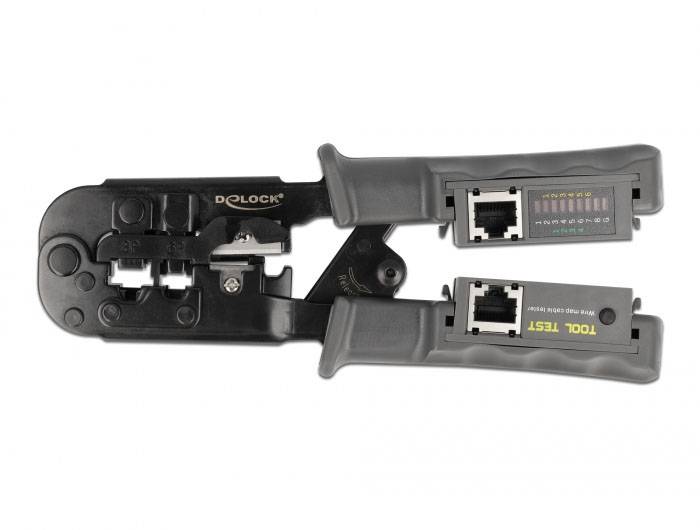

For every type of plug there is an individual pin arrangement. The white numbers (1 - 8 +G) are used to test the RJ45 pin assignment. The yellow series of numbers (1 - 6) stands for RJ11 and the green (1 - 4) for the RJ10 plug.
During the test, the red LED goes through the respective allocation. If, for example, the RJ10 plug is tested, the red LED starts at the green 1.
Network tester
The battery compartment is installed in the grips of the pliers. 3 x LR44 batteries are required, not included in the delivery.
This text is machine translated.
