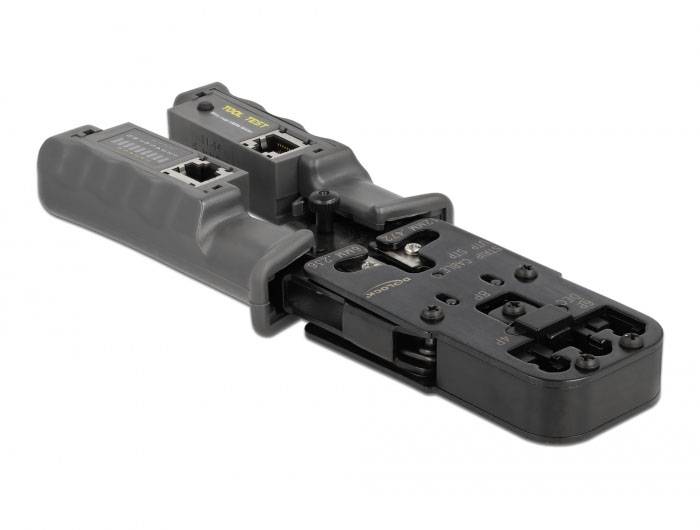

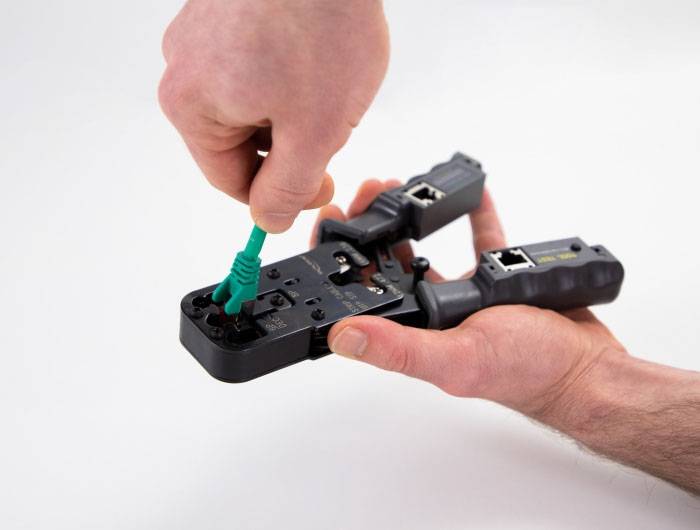

With this tool from Delock a network cable can be connected quickly and easily with a connector. The rubberized handles offer a firm grip during the crimping process.


All in one

The multi-function pliers are suitable for crimping, stripping and cutting of 8P (RJ45), 6P (RJ12/11) or 4P (RJ10) plugs and cables.

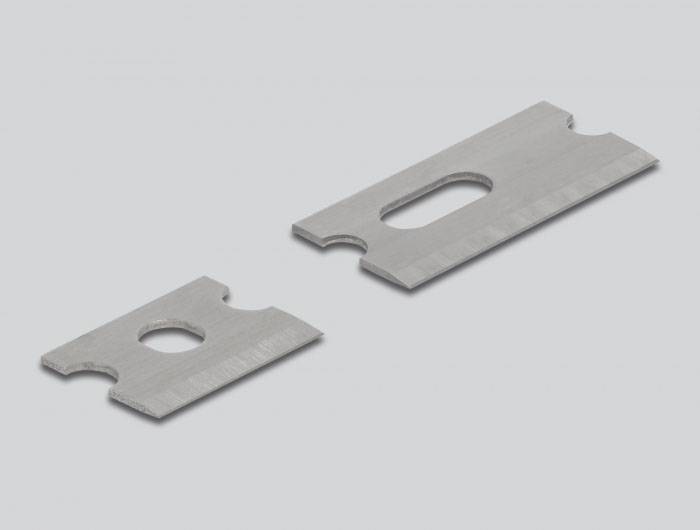

Three integrated blades ensure easy stripping of the cable or cutting the wires.


Modular plug RJ12 6/6 (6P6C)

These pliers are also suitable for crimping modular plug with shifted DEC latch.


Built-in cable tester

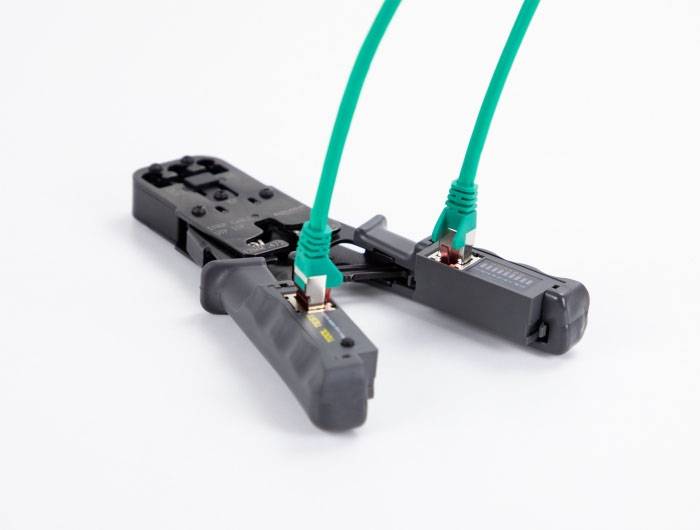

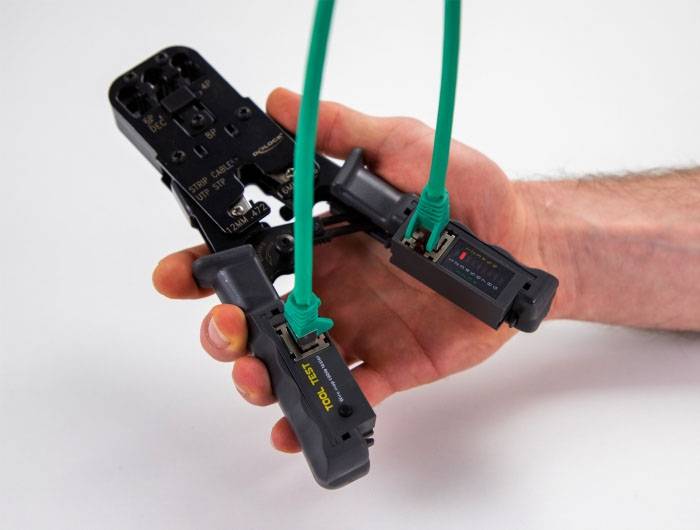

Thanks to the integrated cable tester, direct wiring can be tested after the crimping process All three types of plugs fit into the provided sockets.


LED test run

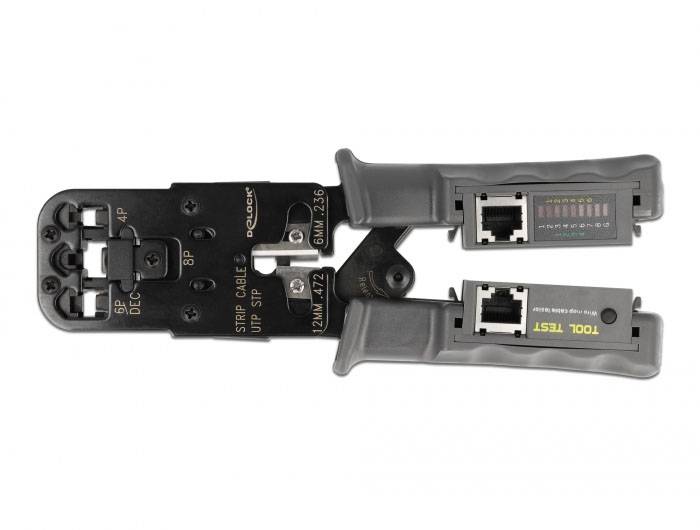

For every type of plug there is an individual pin arrangement. The white numbers (1 - 8 +G) are used to test the RJ45 pin assignment. The yellow series of numbers (1 - 6) stands for RJ11 and the green (1 - 4) for the RJ10 plug.
During the test, the red LED goes through the respective allocation. If, for example, the RJ10 plug is tested, the red LED starts at the green 1.


Note

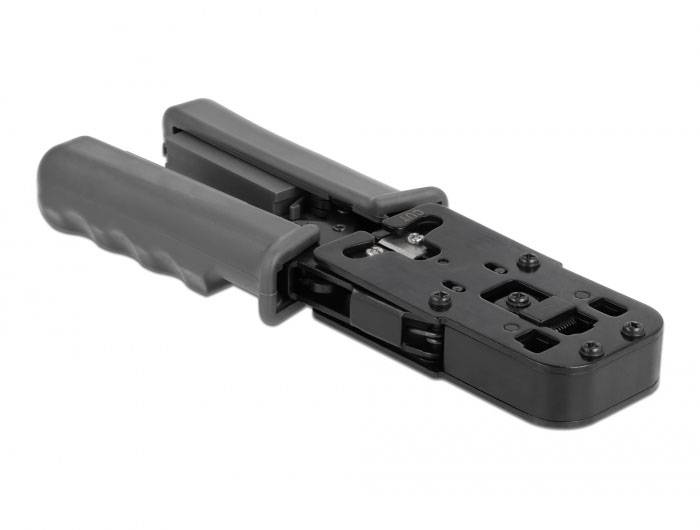

The pliers have a locking mechanism, which prevents accidental closing or opening. Five clearly audible locking points signal this mechanism. After fifth, the pliers open again when the handles are pressed together.
With the help of the screw attached to the handle the opening can be brought about at any time.


Network tester

The battery compartment is installed in the grips of the pliers. 3 x LR44 batteries are required, not included in the delivery.
