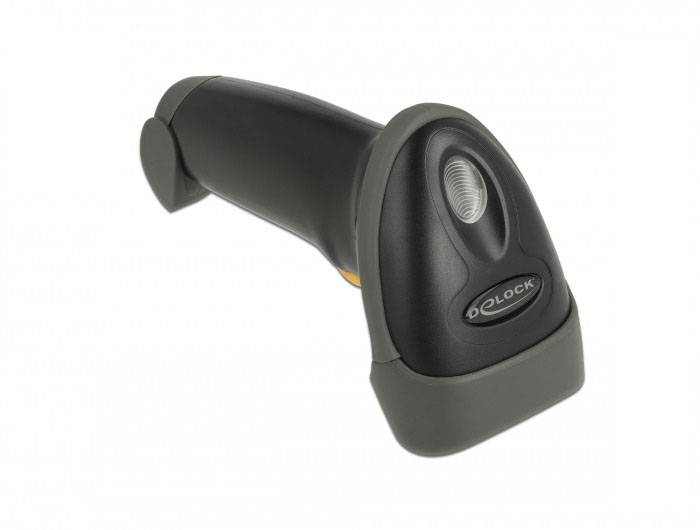

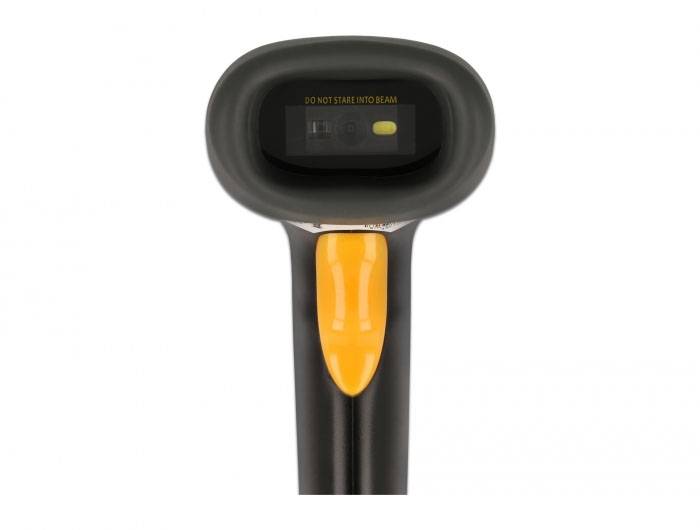

Delock 90518 Barcode scanner Radio 1D, 2D Imager Black Hand-held USB
EAN:
Part number:
Item no:
Datasheet (PDF)
Barcode Scanner
Highlights & Details
- Portable barcode reader black
- Scanner type: 1D/2D sensor type: CMOS
- Codabar, code 128, EAN-13, EAN-8, PDF417 code 39, Data matrix
- 640 x 480 pixels
- 25 cm operating distance
- Wireless standard interfaces: RF Wireless
Technical specifications
- Product type
Barcode scanner
- Type
90518
- Type
Hand-held
- Scanning technology
Imager
- Readable code types
1D
2D
- Reading distance (max.)
250 mm
- Scan rate
200 Scans/s
- Cordless scanning
Radio
100 m
- Factory colour
Black
- Interfaces
USB
- Cable length
0 mm
- Width
82 mm
- Height
65 mm
- Depth
165 mm
- Weight
146 g
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-20 - 60 °C
- Working distance
25 cm
- Optical sensor resolution (W x H)
640 x 480 p
Documents & Downloads
Datasheet
Datasheet 3379086 Delock 90518 Barcode scanner Radio 1D, 2D Imager Black Hand-held USB
User & Safety Instructions
User & Safety Instructions 3379086 Delock 90518 Barcode scanner Radio 1D, 2D Imager Black Hand-held USB
Description
This barcode scanner from Delock can be connected wirelessly with a PC or laptop. All common 1D and 2D barcode types can be captured precisely even at large distances. In addition, the scanner detects barcodes displayed on displays or monitors.
Automatic adjustment to ambient brightness
The scanner automatically adjusts to the ambient brightness and captures up to 200 scans per second under optimum light conditions.
At low ambient brightness the bar code is illuminated by an additional white LED and can thus be used even in poor lighting conditions.

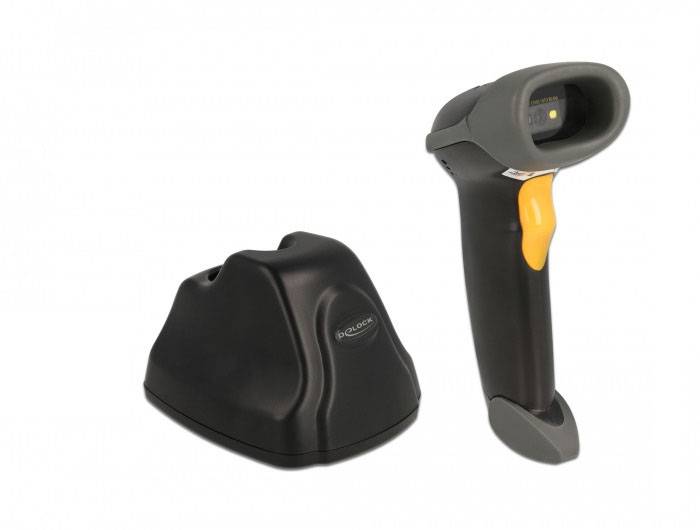

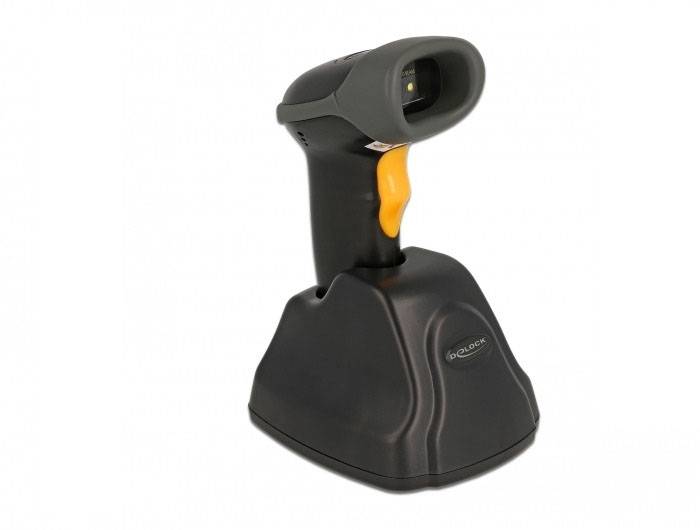

Charging station functions as interface
The scanned barcode is transferred over the 2.4 GHz frequency band. In addition to charging the handheld scanner, the charging station also acts as a 2.4 GHz interface and is connected to the system via the USB cable.
Using an optional adapter cable, it is possible to connect the charging station to a smartphone or tablet.
This text is machine translated.
Automatic adjustment to ambient brightness
The scanner automatically adjusts to the ambient brightness and captures up to 200 scans per second under optimum light conditions.
At low ambient brightness the bar code is illuminated by an additional white LED and can thus be used even in poor lighting conditions.
Charging station functions as interface
The scanned barcode is transferred over the 2.4 GHz frequency band. In addition to charging the handheld scanner, the charging station also acts as a 2.4 GHz interface and is connected to the system via the USB cable.
Using an optional adapter cable, it is possible to connect the charging station to a smartphone or tablet.
This text is machine translated.
Features
- Connection 1 x USB 2.0 type-B socket
- Lithium-polymer 2000 mAh battery
- Decoding chip: ARM Cortex 32-bit
- Max. Resolution 640 x 480
- Trigger: Push-button
- Reading distance: Approx. 40 mm to 250 mm
- Reading accuracy 5 - 10 mil
- Range:
- Indoor areas: Up to 60 m.
- Outdoor: Up to 100 m.
- Internal memory: 16 MB
- Light color: Visible red LED
- Compensation light: White LED
- Sensor: CMOS image sensor
- Scan rate: Up to 200 scans per second
- Scan angle 60°
- Ambient brightness: Max. 100000 lux
- Input voltage: 3.3 V
- Power consumption:
- Operating: Max. 120 mA
- Standby: Max. 500 mA
- Operating temperature: -20 °C ~ 60 °C
- Storage temperature -40 °C ~ 70 °C.
- Relative humidity: 5 - 95% (non-condensing)
- Colour, black
- Weight:
- Barcode scanner: Approx. 146 g
- Charging station: Approx. 118 g
- Dimensions (LxWxH):
- Barcode scanner: Approx. 16.5 x 8.2 x 6.5 cm
- Charging station: 12.0 x 9.5 x 8.0 cm
- Cable length without connections: Approx. 1 m.
- 2.4 GHz
- Scan codes:
- Codabar
- Code 128
- Code 39
- EAN-8 / EAN-13
- ISBN 13
- Data matrix
- PDF417
- QR code
- Languages supported:
- Deutsch
- English
- French
- Italian
- Swiss German
- Swiss French
System requirements
- Android 9.0 or higher
Chrome OS
IPad Pro (2018)
Linux Kernel 5.4 or later
Mac OS X 10.15.6 or higher
Windows 8.1/8.1-64/10/10-64
PC or notebook with a free USB type A port for charging station
