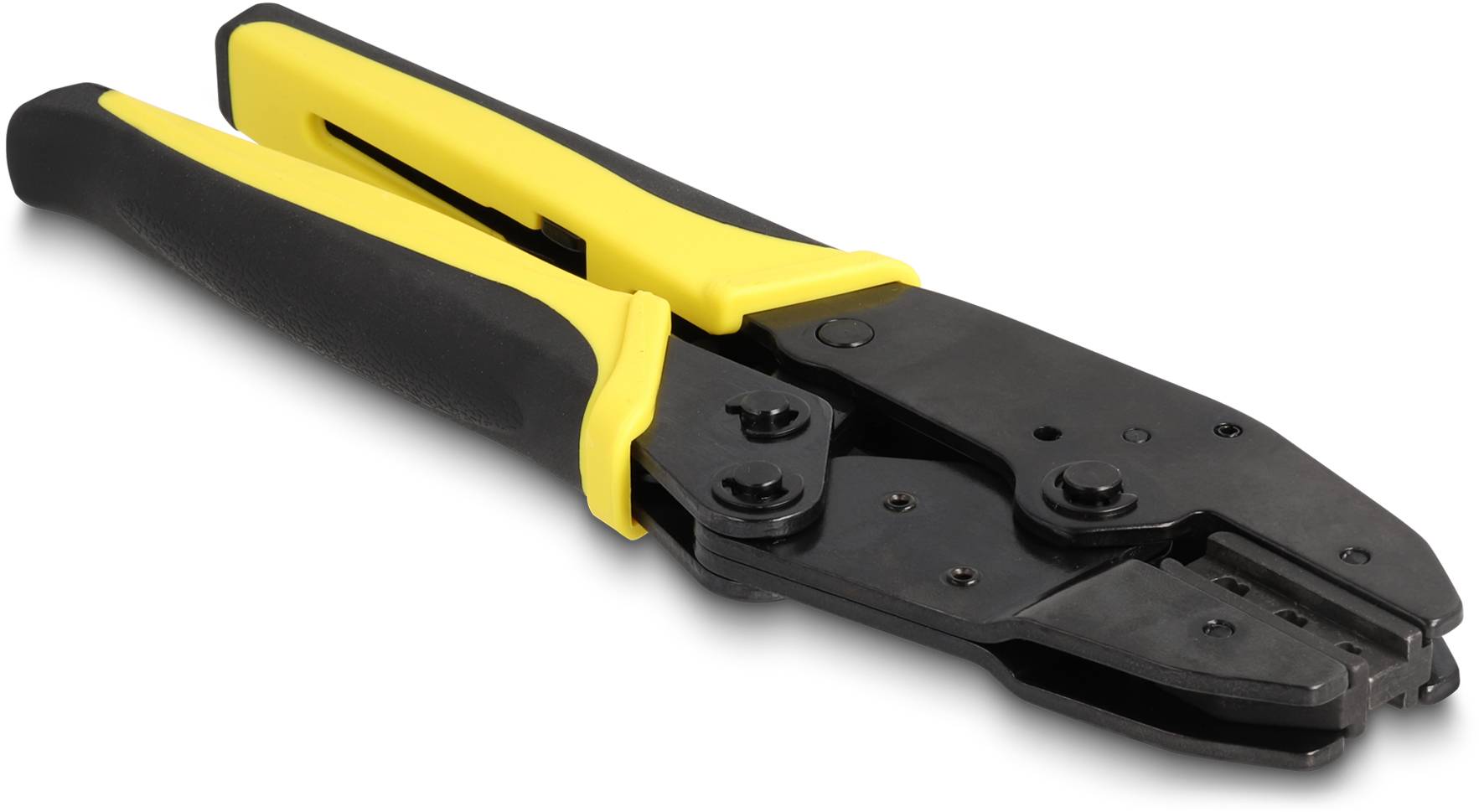

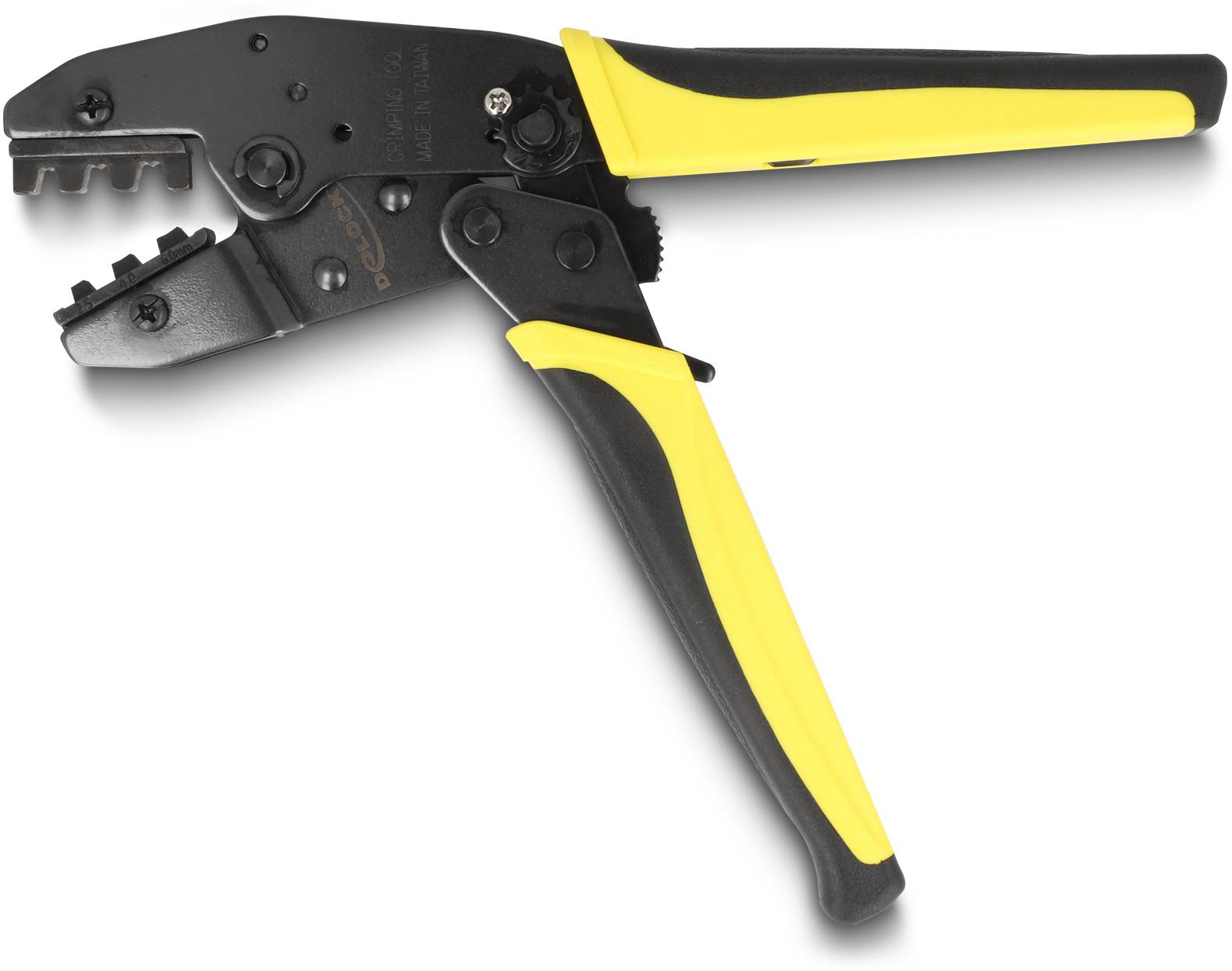

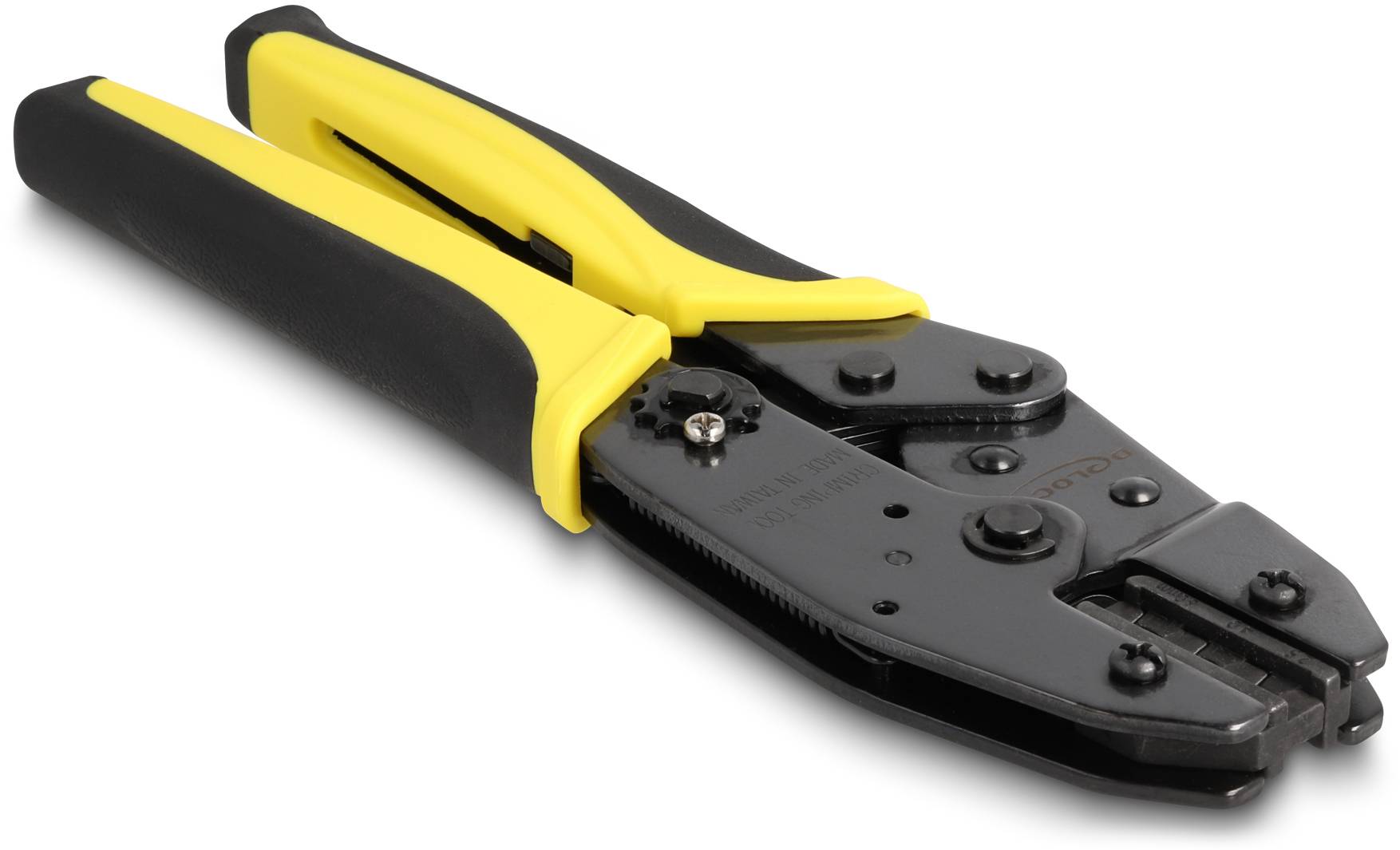

Delock 90546 90546 Crimper PV connector 2.5 up to 6 mm² incl. exchangeable crimp insets
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Delock crimping pliers for MC4 - DL4 plug 2.5 - 6 mm2
- crimping tool
- Material: Metal, plastic
- Material grip: Plastic
- Black, yellow
Technical specifications
- Product color: Black, yellow
- Product type
Crimper
- Manufacturer part #
90546
- Range of uses
PV connector
- Suitable for
MC4
- Crimp area
2.5 up to 6 mm²
- Crimp area AWG
13 up to 10 awg
- Crimp area (min.)
2.5 mm²
- Crimp area (max.)
6 mm²
- Crimp area AWG (min.)
10 awg
- Crimp area AWG (max.)
13 awg
- Length
218 mm
- Material
Metal
Plastic
- Width
60 mm
- Height
17 mm
- Weight
0
- Features
incl. exchangeable crimp insets
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
- Quantity per pack
1 Stück(e)
- Cable diameter (min)
2.5 mm
- Cable diameter (max)
6 mm
- AWG wire size (min)
10
- AWG wire size (max)
13
Documents & Downloads
Datasheet
Datasheet 3382072 Delock 90546 90546 Crimper PV connector 2.5 up to 6 mm² incl. exchangeable crimp insets
User & Safety Instructions
User & Safety Instructions 3382072 Delock 90546 90546 Crimper PV connector 2.5 up to 6 mm² incl. exchangeable crimp insets
Description
With this tool from Delock a solar cable can be connected quickly and easily with a connector. The rubberized handles offer a firm grip during the crimping process.

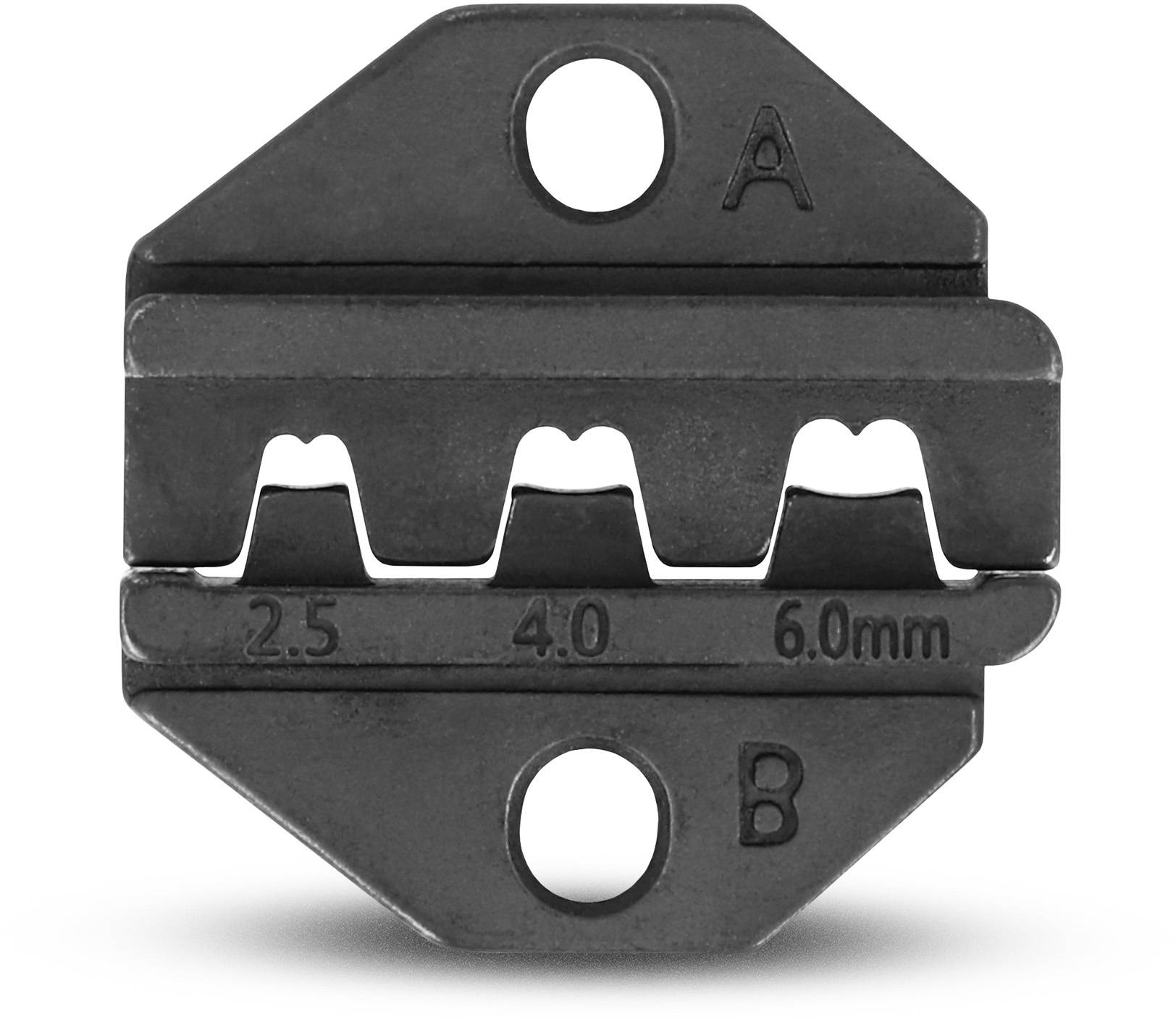

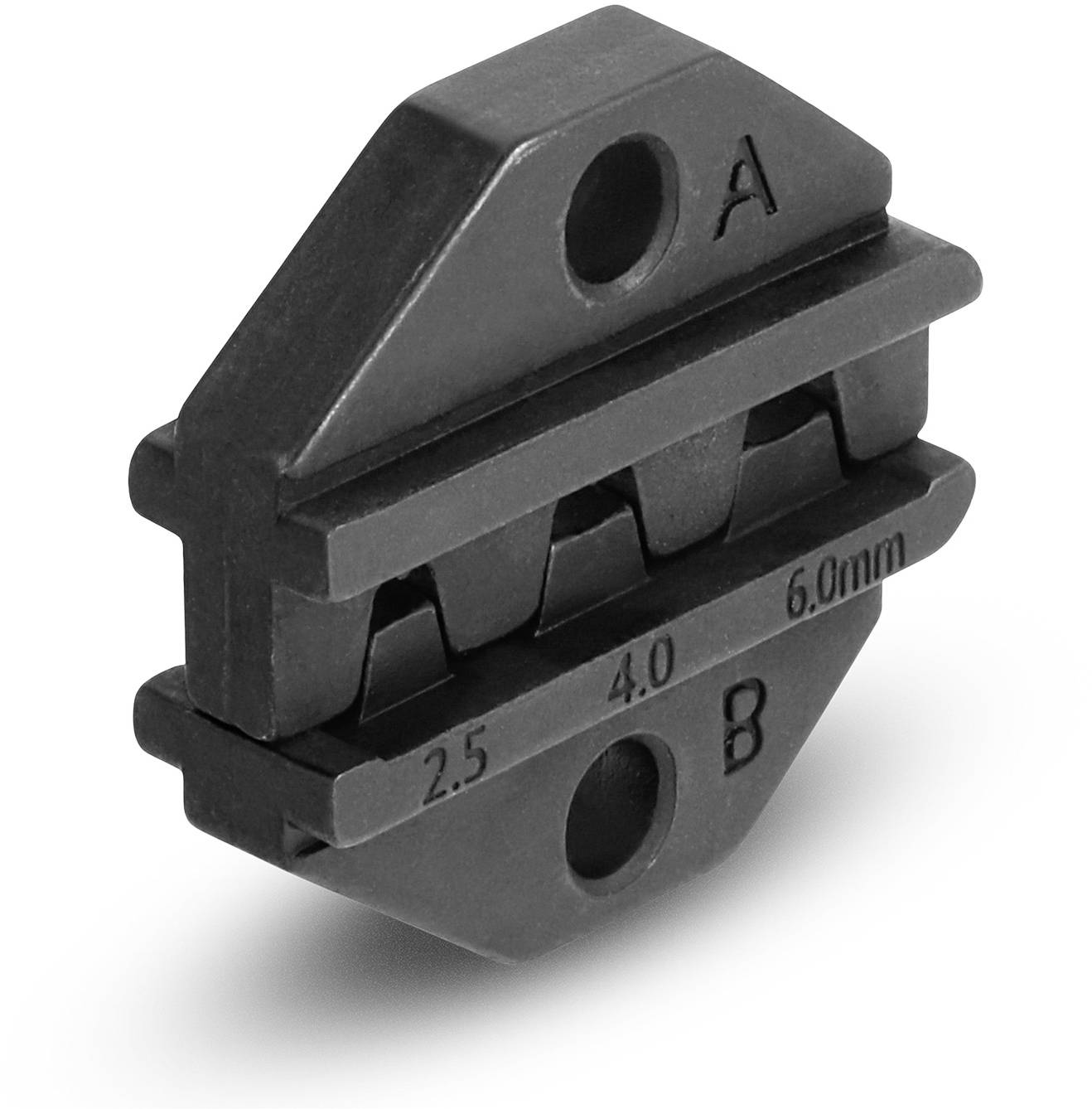

Exchangeable crimp-section insert
The press section inserts, the so-called jaws, can be replaced, so that the suitable pair can be fitted for each application.
Note
The pliers have a locking mechanism, which prevents accidental closing or opening. Seven clearly audible locking points signal this mechanism. After the seventh, the pliers will open again when the handles are pressed together.
This text is machine translated.
Exchangeable crimp-section insert
The press section inserts, the so-called jaws, can be replaced, so that the suitable pair can be fitted for each application.
Note
The pliers have a locking mechanism, which prevents accidental closing or opening. Seven clearly audible locking points signal this mechanism. After the seventh, the pliers will open again when the handles are pressed together.
This text is machine translated.
