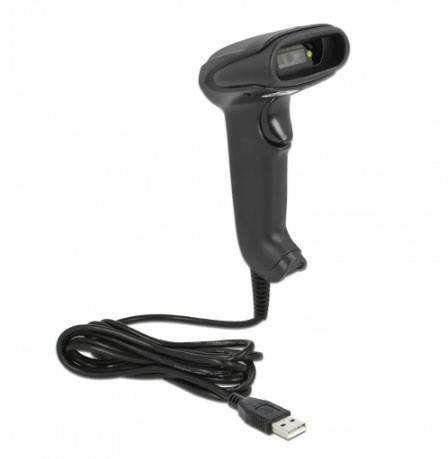

Delock 90557 2D barcode scanner Corded 1D, 2D LED Black Hand-held
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Barcode Scanner
- Portable barcode reader black
- Scanner type 1D/2D sensor type LED
- Code 128, code 39, EAN-13, EAN-8, ISBN, PDF417 Data Matrix, Micro QR Code, QR Code
- 640 x 480 pixels
- 35 cm operating distance
- Wired standard interfaces: USB
- Power source USB 262 mAh
Technical specifications
- Product type
2D barcode scanner
- Type
90557
- Type
Hand-held
- Scanning technology
LED
- Readable code types
1D
2D
- Reading distance (max.)
350 mm
- Scanning confirmation
LED
- Scan rate
30 Scans/s
- Cordless scanning
Corded
- Factory colour
Black
- Cable length
1.5 m
- Width
90 mm
- Height
65 mm
- Depth
160 mm
- Weight
150 g
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Battery capacity
262 mAh
- Input voltage
5 V
- UKCA
yes
- Operating temperature (T-T)
-20 - 60 °C
- Working distance
35 cm
- Optical sensor resolution (W x H)
640 x 480 p
- Power consumption
75 mA
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-30 - 70 °C
Documents & Downloads
Datasheet
Datasheet 3379153 Delock 90557 2D barcode scanner Corded 1D, 2D LED Black Hand-held
User & Safety Instructions
User & Safety Instructions 3379153 Delock 90557 2D barcode scanner Corded 1D, 2D LED Black Hand-held
Description
This barcode scanner from Delock can be connected directly to a PC or laptop. Alternatively, an adapter can be used in between to connect the scanner from your mobile phone or tablet. All common 1D and 2D barcode types can be captured precisely even at large distances. In addition, the scanner detects barcodes displayed on displays or monitors.
Automatic adjustment to ambient brightness
The scanner automatically adjusts to the ambient brightness and captures up to 30 scans per second under optimum light conditions.
At low ambient brightness the bar code is illuminated by an additional white LED and can thus be used even in poor lighting conditions.
Transfer via USB
The scanned barcode is transferred via the enclosed USB cable.
Fixed connection
The USB cable is connected to the scanner via a RJ50 plug. The connection is made flush, so that the removal of the cable takes place only with the provided ejection tool. This ensures a permanent connection between the scanner and the system.
This text is machine translated.
Automatic adjustment to ambient brightness
The scanner automatically adjusts to the ambient brightness and captures up to 30 scans per second under optimum light conditions.
At low ambient brightness the bar code is illuminated by an additional white LED and can thus be used even in poor lighting conditions.
Transfer via USB
The scanned barcode is transferred via the enclosed USB cable.
Fixed connection
The USB cable is connected to the scanner via a RJ50 plug. The connection is made flush, so that the removal of the cable takes place only with the provided ejection tool. This ensures a permanent connection between the scanner and the system.
This text is machine translated.
Features
- 1 x RJ50 socket
- Decoding chip: ARM Cortex 32-bit
- Max. Resolution 640 x 480
- Trigger: Push-button
- Reading distance: Approx. 30 mm to 350 mm
- Reading accuracy 4 mil
- Light color: Visible red LED
- Compensation light: White LED
- Sensor: CMOS image sensor
- Scan rate: Up to 30 scans per second
- Scan angle 44°
- Ambient brightness: Max. 100000 lux
- Input voltage: 5 V
- Power consumption:
- Operating: Max. 262 mA
- Standby: Max. 75 mA
- Operating temperature: -20 °C ~ 60 °C
- Storage temperature -30 °C ~ 70 °C.
- Relative humidity: 5 - 95% (non-condensing)
- Colour, black
- Weight approx. 150 g
- Dim. (LxWxH): Approx. 160 x 90 x 65 mm
- Cable length incl. connection: Approx. 1.5 m.
- Scan codes:
- Code 128
- Code 39
- Interleaved 2 of 5
- EAN-8 / EAN-13
- ISBN 13
- Data matrix
- AAA QR
- PDF417
- QR code
System requirements
- Android 9.0 or higher
IPad Pro (2018)
Linux Kernel 5.4 or later
Mac OS X 10.15.5 or higher
Windows 8.1/8.1-64/10/10-64
PC or notebook with a free USB type A port
