Delock 90584 Barcode scanner 1D Laser Black Handheld incl. base
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Barcode Scanner
- Portable barcode reader black
- Scanner type: 1D sensor type: Laser
- Code 128, EAN-13, EAN-8, ISBN, Interleaved 2 of 5
- 640 x 480 pixels
- Wired standard interfaces: RJ-50
- Power source USB
Technical specifications
- Product type
Barcode scanner
- Type
90584
- Type
Handheld incl. base
- Scanning technology
Laser
- Readable code types
1D
- Reading distance (max.)
300 mm
- Scan rate
200 Scans/s
- Factory colour
Black
- Cable length
2 m
- Width
82 mm
- Height
165 mm
- Depth
65 mm
- Weight
120 g
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Input voltage
5 V
- UKCA
yes
- Operating temperature (T-T)
-20 - 60 °C
- Optical sensor resolution (W x H)
640 x 480 p
- Power consumption
262 mA
- Operating relative humidity (H-H)
5 - 95 %
- Read rate (max)
200 Auslesungen/Sekunde
- Storage temperature (T-T)
-40 - 70 °C
- Light levels (direct sunlight)
0 - 100000 Lux
Documents & Downloads
Datasheet
Datasheet 3379173 Delock 90584 Barcode scanner 1D Laser Black Handheld incl. base
User & Safety Instructions
User & Safety Instructions 3379173 Delock 90584 Barcode scanner 1D Laser Black Handheld incl. base
Description

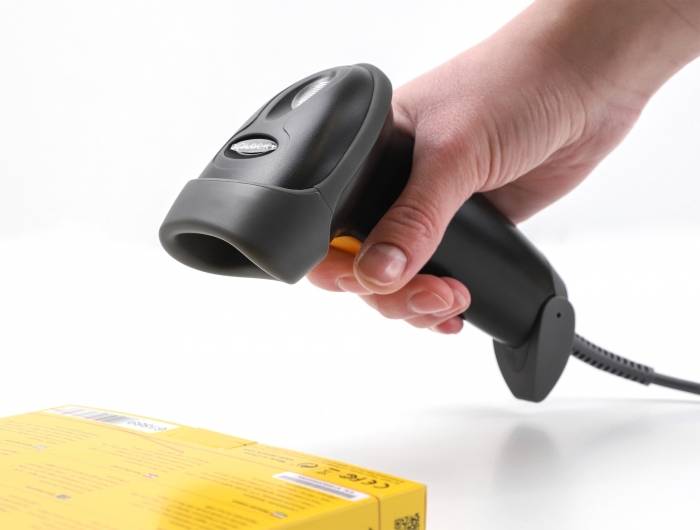

This barcode laser scanner from Delock can be connected directly to a PC or laptop. Alternatively, an adapter can be used in between to connect the scanner from your mobile phone or tablet. Up to 200 scans per second, all common 1D barcode types, can be captured accurately even at a wide distance. In addition, the scanner detects barcodes displayed on displays or monitors.
Transfer via USB

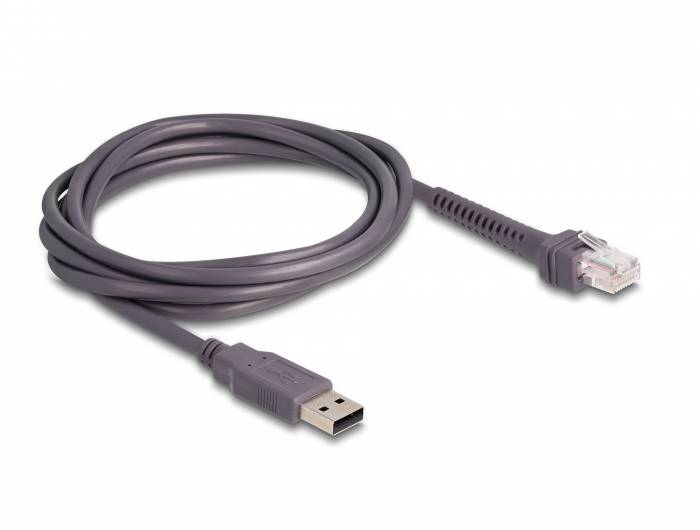

The scanned barcode is transferred via the enclosed USB cable.
Fixed connection

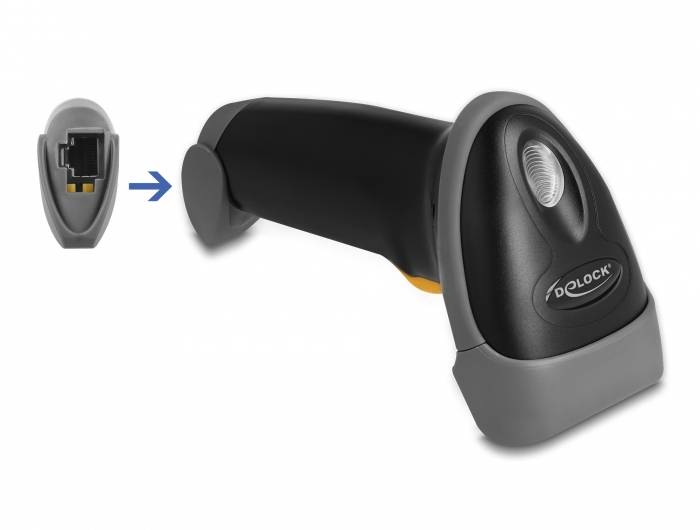

The USB cable is connected to the scanner via a RJ50 plug. The connection is made flush, so that the removal of the cable takes place only with the provided ejection tool. This ensures a permanent connection between the scanner and the system.
Secure hold

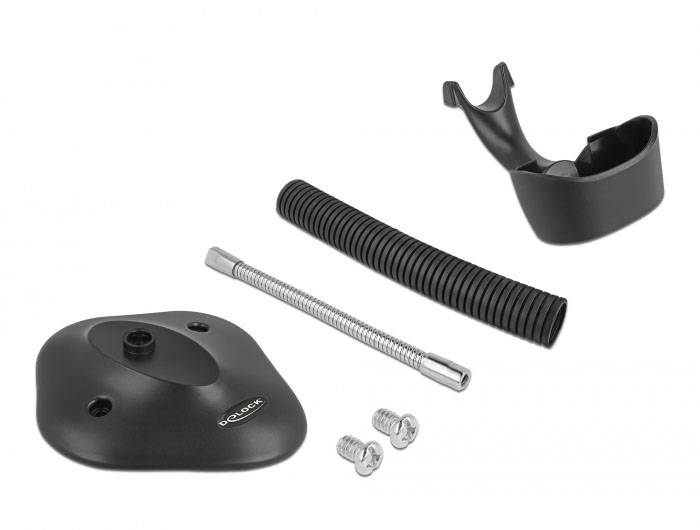

The scanner is delivered with suitable holder, which can be adjusted individually thanks to the flexible gooseneck. With the help of both holes in the base, the stand can be fixed at the desk and offers a secure hold while laying.
This text is machine translated.
Transfer via USB
The scanned barcode is transferred via the enclosed USB cable.
Fixed connection
The USB cable is connected to the scanner via a RJ50 plug. The connection is made flush, so that the removal of the cable takes place only with the provided ejection tool. This ensures a permanent connection between the scanner and the system.
Secure hold
The scanner is delivered with suitable holder, which can be adjusted individually thanks to the flexible gooseneck. With the help of both holes in the base, the stand can be fixed at the desk and offers a secure hold while laying.
This text is machine translated.
Features
- 1 x RJ50 socket
- Decoding chip: ARM Cortex 32-bit
- Max. Resolution 640 x 480
- Trigger: Push-button
- Reading distance: Approx. 185 mm to 300 mm
- Reading accuracy 3 mil
- Scan type: Laser class 1, 655 nm, less than 0.5 mW
- Scan rate: Up to 200 scans per second
- Scan angle 44°
- Input voltage: 5 V
- Power consumption:
- Operating: Max. 100 mA
- Standby: Max. 10 mA
- Operating temperature: -20 °C ~ 60 °C
- Storage temperature -40 °C ~ 70 °C.
- Relative humidity: 5 - 95% (non-condensing)
- Colour, black
- Weight approx.: 120 g
- Dimensions (LxWxH): Approx. 16.5 x 8.2 x 6.5 cm
- Cable length incl. connection: Approx. 2 m.
- Scan codes:
- Code 128
- Interleaved 2 of 5
- EAN-8 / EAN-13
- ISBN 13
- Dimensions of bracket (LxWxH):
- Stand: 172 x 153 x 23 mm approx.
- Gooseneck: Approx. 165 x 23 x 23 mm
- Holder: Approx. 145 x 71 x 37 mm
System requirements
- Android 11.0 or higher
IPad Air (2020)
Linux Kernel 5.4 or later
Mac OS X 11.6 or higher
Windows 8.1/8.1-64/10/10-64
PC or notebook with a free USB type A port
