Delock 90600 2D barcode scanner Corded 2D, 1D LED Black Built-in
EAN:
Part number:
Item no:
Datasheet (PDF)
Barcode Scanner
Highlights & Details
- Integrated barcode reader black
- Scanner type: 1D/2D sensor type: CMOS
- Code 128, Code 39, EAN-13, EAN-8, Interleaved 2 of 5, PDF417 Code 39, Data Matrix, Micro QR Code, QR Code
- 752 x 480 pixels
- 25 cm operating distance
- Built-in processor
- Wired standard interfaces: RJ-50
- Power source USB
Technical specifications
- Product type
2D barcode scanner
- Type
90600
- Type
Built-in
- Scanning technology
LED
- Readable code types
2D
1D
- Reading distance (max.)
250 mm
- Scan rate
60 Scans/s
- Cordless scanning
Corded
- Factory colour
Black
- Cable length
1.5 m
- Width
67 mm
- Height
52 mm
- Depth
78 mm
- Weight
173 g
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Connections
RJ45 connector
- Connection type
USB 2.0
- Input voltage
5 V
- UKCA
yes
- Operating temperature (T-T)
-10 - 50 °C
- Storage relative humidity (H-H)
5 - 95 %
- Working distance
25 cm
- Optical sensor resolution (W x H)
752 x 480 p
- Power consumption
100 mA
- Operating relative humidity (H-H)
5 - 95 %
- Read rate (max)
60 Auslesungen/Sekunde
- Storage temperature (T-T)
-10 - 50 °C
- Built-in processor
yes
Documents & Downloads
Datasheet
Datasheet 3379290 Delock 90600 2D barcode scanner Corded 2D, 1D LED Black Built-in
User & Safety Instructions
User & Safety Instructions 3379290 Delock 90600 2D barcode scanner Corded 2D, 1D LED Black Built-in
Description

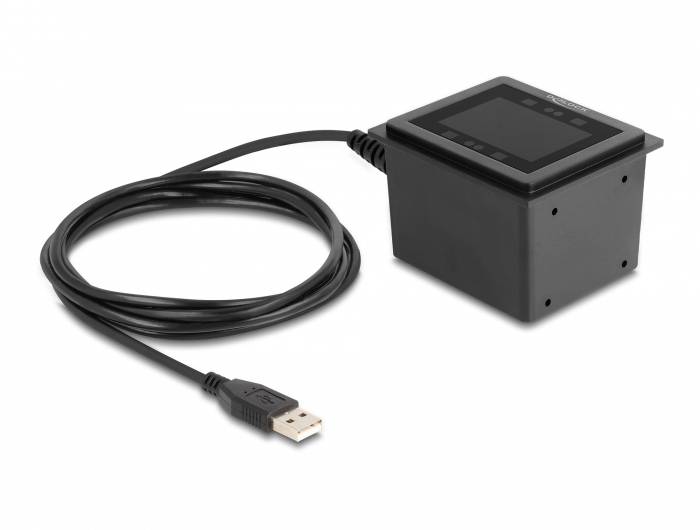

This stationary barcode scanner from Delock is ideally suited for installation in a tabletop and connected to the system in a space-saving way. It is also suitable for Ideal for use at intake controls, for example in a digitized hub. Also accurately records all major 1D and 2D barcode types from your smartphone.
Automatic adjustment to ambient brightness
The scanner automatically adjusts to the ambient brightness and captures up to 60 scans per second under optimum light conditions.

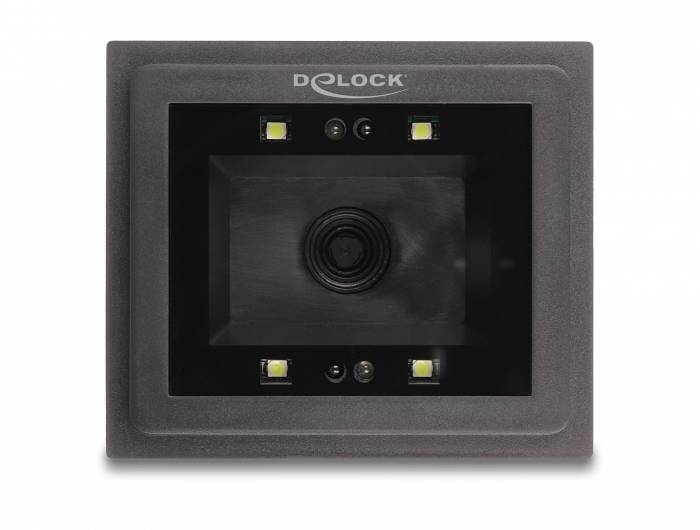

At low ambient brightness the bar code is illuminated by an additional white LED and can thus be used even in poor lighting conditions.
Transfer via USB

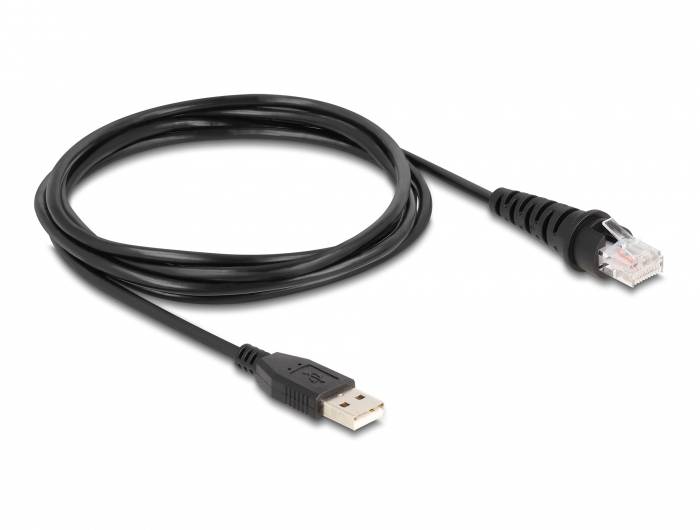

The scanned barcode is transferred via the enclosed USB cable.
This text is machine translated.
Automatic adjustment to ambient brightness
The scanner automatically adjusts to the ambient brightness and captures up to 60 scans per second under optimum light conditions.
At low ambient brightness the bar code is illuminated by an additional white LED and can thus be used even in poor lighting conditions.
Transfer via USB
The scanned barcode is transferred via the enclosed USB cable.
This text is machine translated.
Features

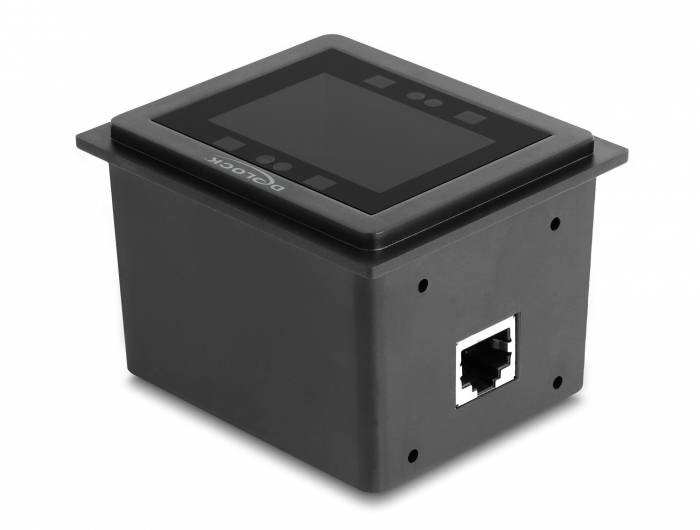

- 1 x RJ50 socket
- Decoding chip: ARM Cortex 32-bit
- Resolution 752 x 480
- Trigger: Presentation mode
- Reading distance: Approx. 50 mm to 250 mm
- Reading accuracy 5 mil
- Compensation light: White LED
- Sensor: CMOS image sensor
- Scan rate: Up to 60 scans per second
- Ambient brightness: Max. 100000 lux
- Input voltage: 5 V
- Power consumption:
- Operating: Max. 100 mA
- Standby: Max. 30 mA
- Operating temperature: -10 °C ~ 50 °C
- Storage temperature -10 °C ~ 50 °C.
- Relative humidity: 5 - 95% (non-condensing)
- Colour, black
- Weight approx. 173 g
- Dim. (LxWxH): Approx. 78 x 67 x 52 mm
- Cable length without connections: Approx. 1.5 m.
- 2.4 GHz
- Scan codes:
- Code 128
- Code 39
- EAN-8 / EAN-13
- ISBN 13
- Data matrix
- AAA QR
- PDF417
- QR code
System requirements
- Mac OS X 12.4 or higher
Windows 8.1/8.1-64/10/10-64/11
PC or notebook with a free USB type A port
